EXAMPLE NETWORKS
94 CyberSWITCH
SITE1 AppleTalk Configuration
Network Range: 10-13
Zones:
SITE1.Engineering (default)
SITE1.Marketing
SITE2 AppleTalk Configuration
Network Range: 45-50
Zones:
SITE2.Engineering (default)
SITE2.Marketing
ISDN
MAC
CSX1200
"SITE2"
POWER SERVICE TX RX 10BASE - T LAN B-CHANNELS E1 ONLY
B2 B4 B6 B8 B26 B28 B22 B24 B18 B20 B14 B16 B10 B12 B30 L1
B1 B3 B5 B7 B25 B27 B21 B23 B17 B19 B13 B15 B9 B11 B29 B31 E1 D T1 D
POWER SERVICE TX RX 10BASE - T LAN B-CHANNELS E1 ONLY
B2 B4 B6 B8 B26 B28 B22 B24 B18 B20 B14 B16 B10 B12 B30 L1 B1 B3 B5 B7 B25 B27 B21 B23 B17 B19 B13 B15 B9 B11 B29 B31 E1 D T1 D
CSX1200
"SITE1"
MAC
MAC MAC

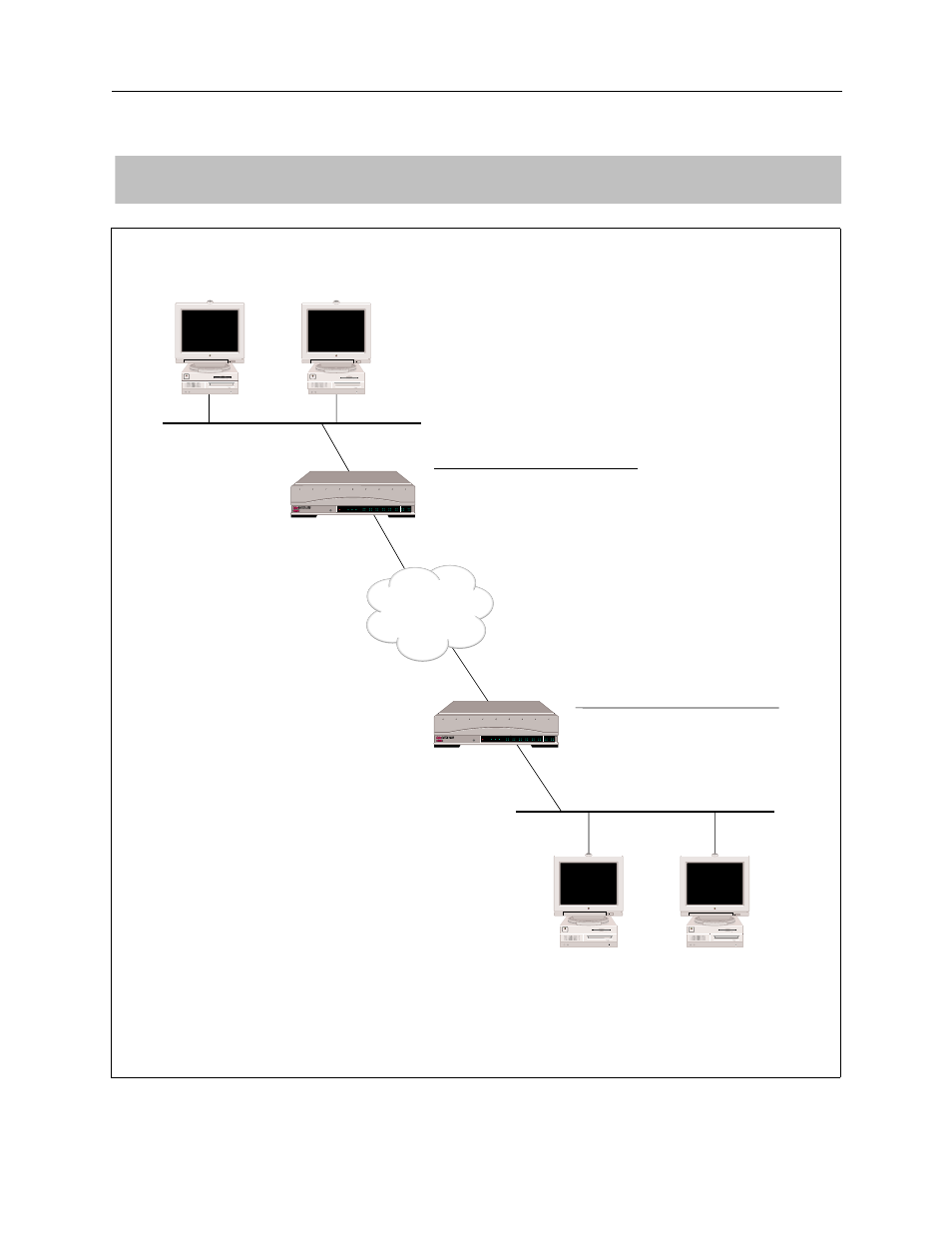

N ETWORK T OPOLOGY
