Char-Broil 463741008 User Manual
Page 16
16 • 463741008
7

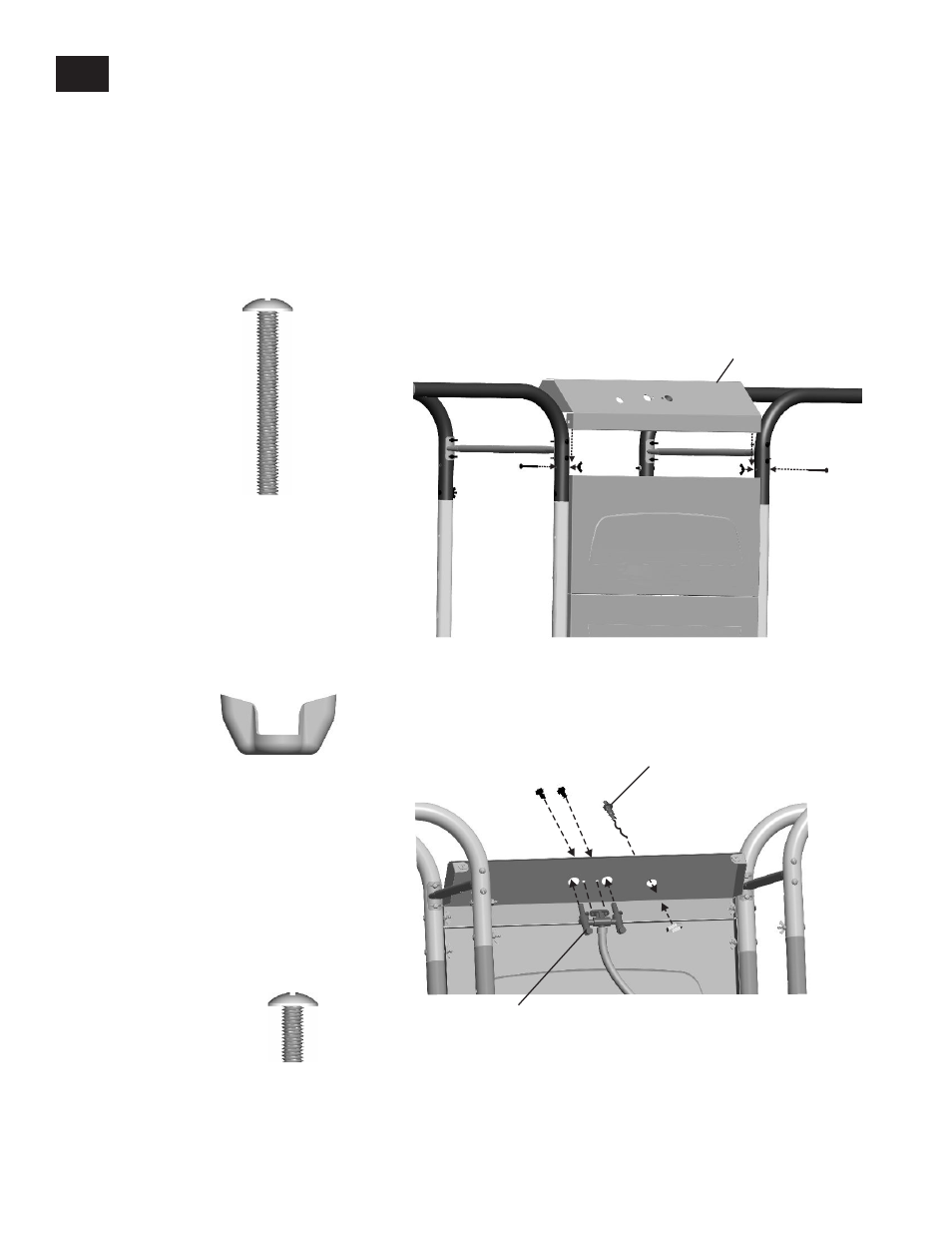

(A) Attach control panel to cart with #10-24x1-3/4" machine screws and #10-24 wing nuts.
(B) Place valve/hose/regulator onto control panel. Attach with two #10-24x1/2" machine screws. (Note: Make sure the two
valve stems are leveled; otherwise, this can cause main burner level problems.) Insert ignitor into control panel. Insert the round
terminal lug of the ignitor wire into the pin located at the end of the ignitor
.
A
Control Panel
#10-24X1/2"
Machine Screw
Qty: 2
Qty: 2
#10-24x1-3/4"
Machine Screw
#10-24
Wing Nut
Qty: 2
Valve/Hose/Regulator
Ignitor
B
