Install Air Duct for Outside Air
If your installation will include outside air for combus-
tion, follow these directions for attaching the three inch
duct to the stove:
• Screw a #10 x 1/2” sheet metal screw into the duct.
Tighten the screw, then back it off two turns.
• The outside air port on the back of the stove has a
slot at the 10:00 o’clock position. Align the screw in
the duct pipe with the slot and insert the pipe. Turn
1/4 turn, clockwise. This locks the pipe securely in
position.
3/4”
1/8” Hole
#10 x 1/2”
Sheet Metal
Screw
ST754

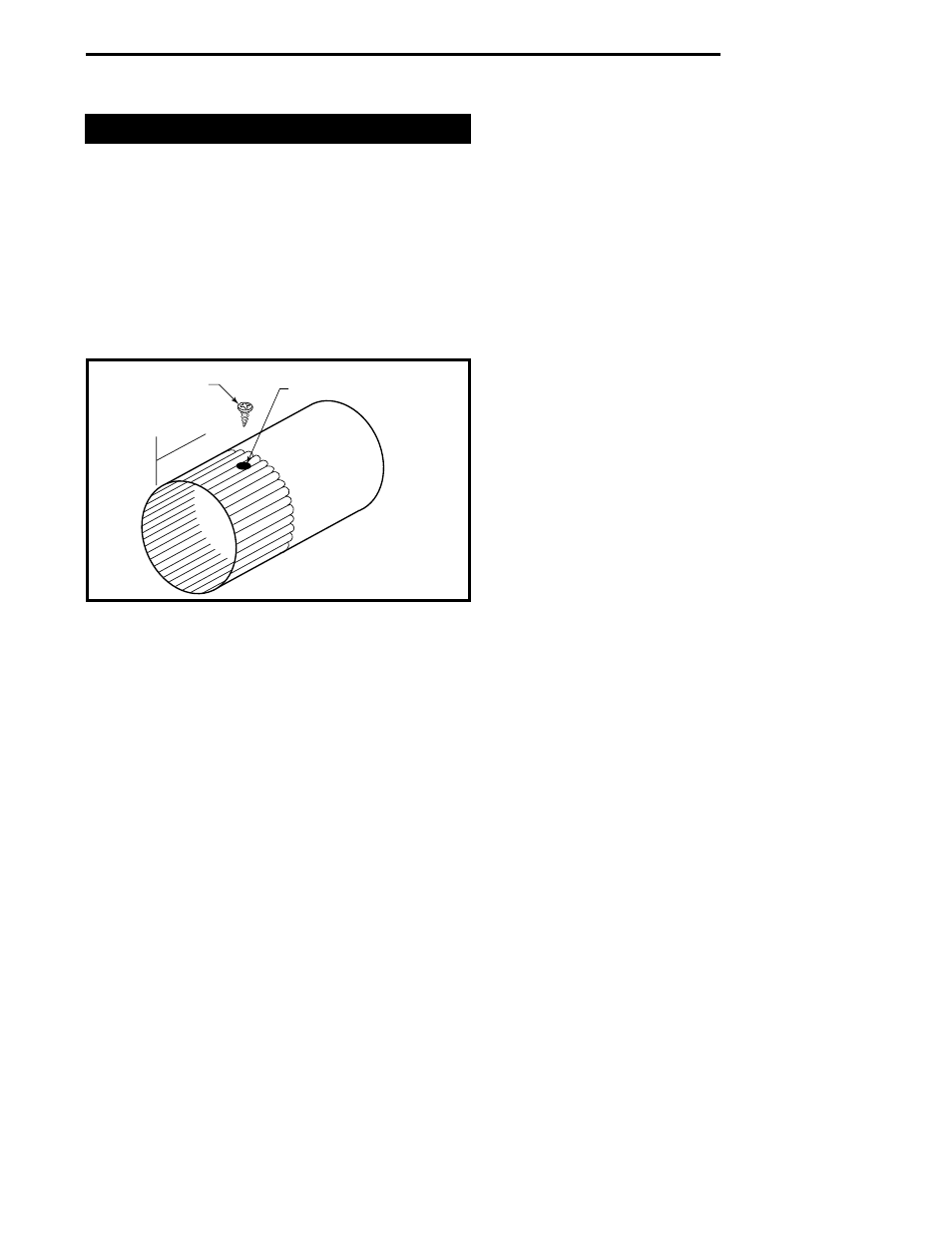

Fig. 17 Drill a 1/8” hole in the crimped end of the three inch
pipe duct, 3/4” from the end.
