E-34
Getting Ready
8.

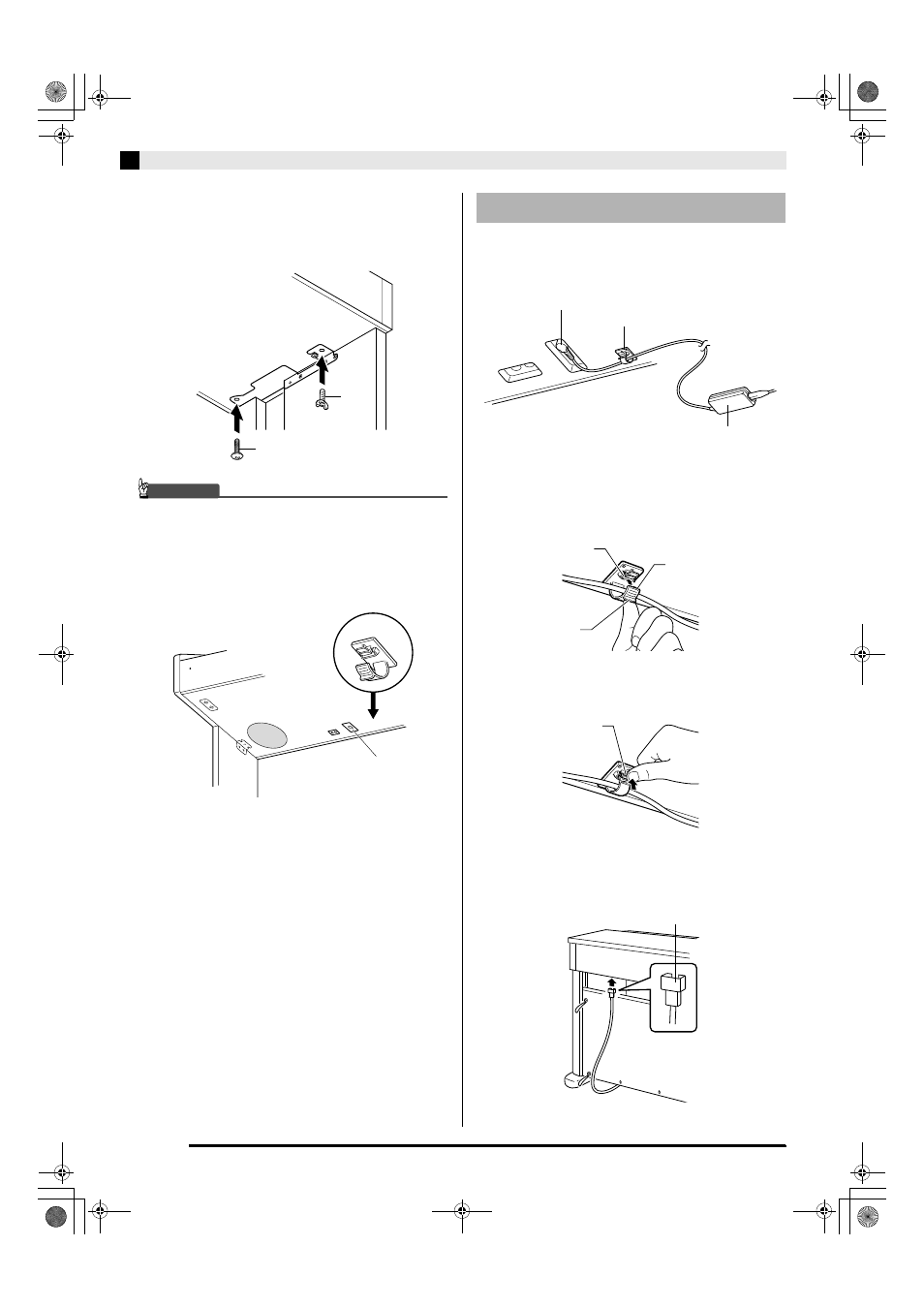

First, use the two butterfly bolts H to secure
the back of the piano to the stand. Next, use
the two screws K to secure the front of the
piano.
IMPORTANT!
• The butterfly bolts H and screws K keep the piano
from slipping off the stand. Never use the piano
without the butterfly bolts H and screws K installed.
9.
Affix the adaptor cord clip N next to the
power terminal (DC24V).
1.
Insert the plug of the AC adaptor that comes
with the Digital Piano into its power terminal
(DC24V).
* Using the Clip N
z To fasten the clip
As shown in the illustration, press down on (a) to force
the tip of the clip into the slot. Press down until you
hear the clip click securely into place.
z To release the clip
As shown in the illustration, press (b) in the direction
indicated by the arrow.
2.
Orienting the pedal plug as shown in the
illustration, plug it into the pedal connector on
the bottom of the piano.
H
K
N
DC24V terminal
To connect the cables
AC adaptor plug
N
clip
Supplied AC adaptor
¨á©
Slot
Tip
¨â©
Pedal plug
