11-9
Cisco 1800 Series Routers (Modular) Hardware Installation Guide
OL-5876-03
Chapter 11 Installing and Upgrading Internal Modules in Cisco 1800 Series Routers (Modular)
Modules Internal to the Cisco 1841 Router

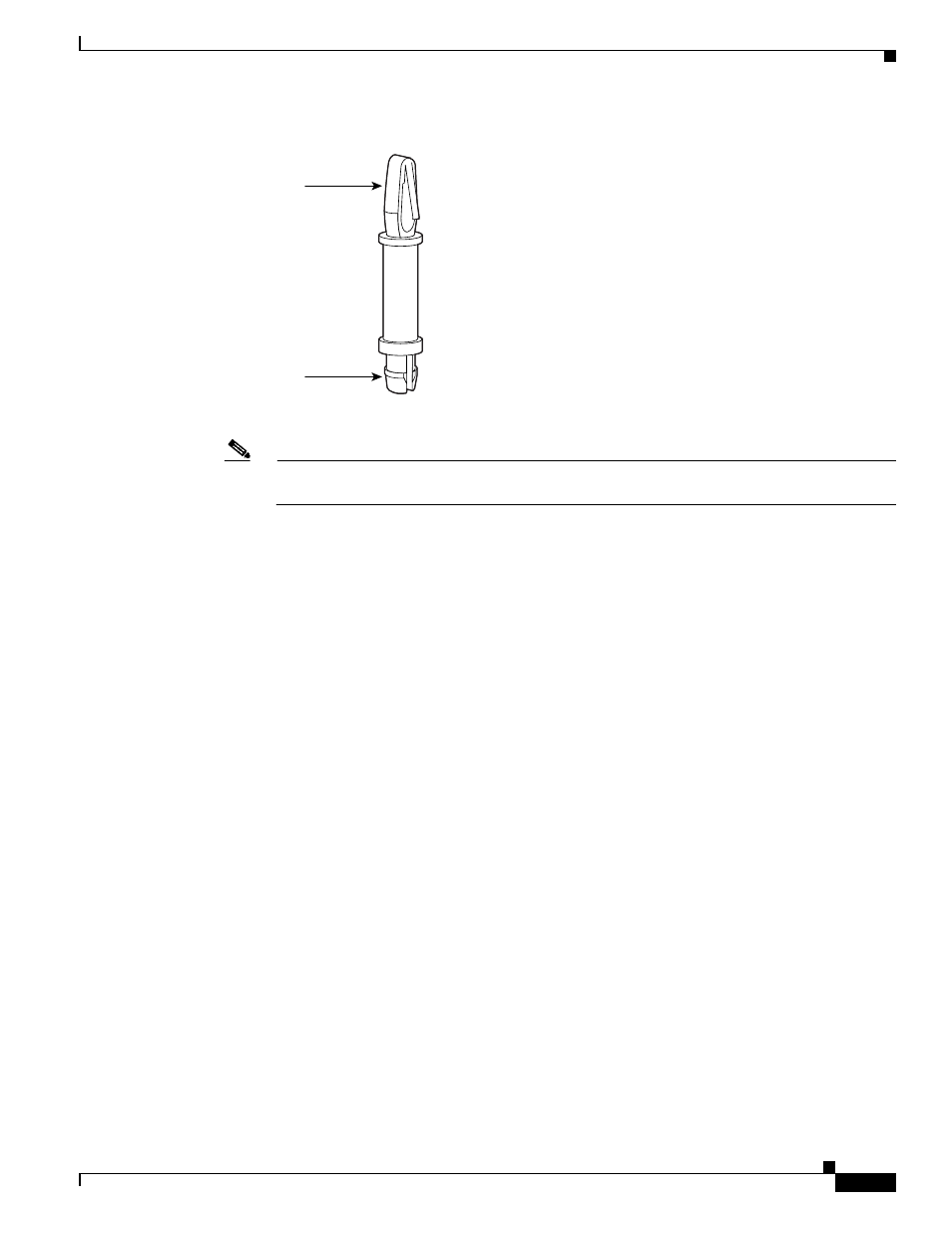

Figure 11-8 Plastic Standoff Orientation
Step 4 Insert the connector on the AIM into the AIM connector on the system board. See Figure 11-9 .
Note Be sure to press firmly on the AIM until the board seats onto the connector. The plastic standoff
must snap into the hole in the AIM board. See
Figure 11-9 .
Step 5 Insert the screws from the accessory kit through the AIM into the metal standoffs. See Figure 11-9 .
Carefully tighten the screws with a Phillips screwdriver.
82620
AIM end
Locking end
