Ц Ц Carefully turn the assembly
Right-Side-Up.
Ц Ц Engage the Locking
Casters to prevent
movement during the rest
of the assembly process.
Step
2
9
2-A
2-B

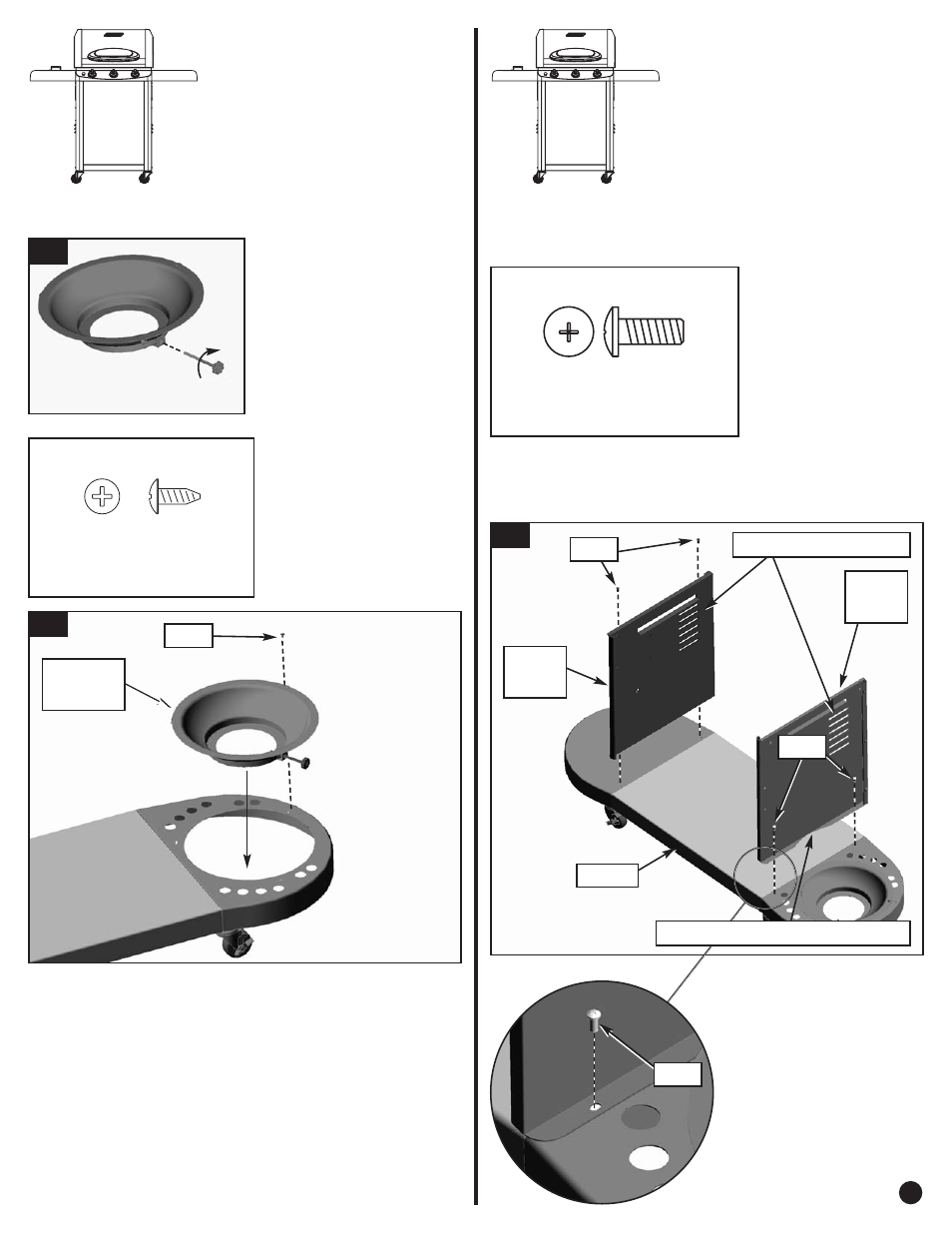

2-A. Assemble the Cylinder
Retaining Bolt to the
Cylinder Support.
(VP)
Self Tapping Screw
(1) Qty.
Hardware shown actual size 2-B. Assemble the Cylinder
Support to the Base by
engaging the tabs in
the slots. Secure the
support with one screw
(VP).
VP
Cylinder
Support
Hardware shown actual size
Step
3
(TN)
M6 x 15mm Screw
(4) Qty.
3-A
TN
Right
Panel
Left
Panel
TN
Notch for Cylinder Support
TN
3-A. Assemble the
Right Side Panel
and the Left Side
Panel to the Base
using four Screws
(TN).
Ц Ц Tighten all fasten-
ers.
Vents Toward Rear
Front
Ц Ц Assemble the Right Side
Panel.
Ц Ц Assemble the Left Side
Panel.
Front
