Coleman 5600 - Manual (Page 16)

Ц Ц NOTE: The Grill Lids must
be opened for Step 11.
Ц Ц Assemble Left Fryer
Assembly to the Grill.
Step
11
11-A
11-B
11-C

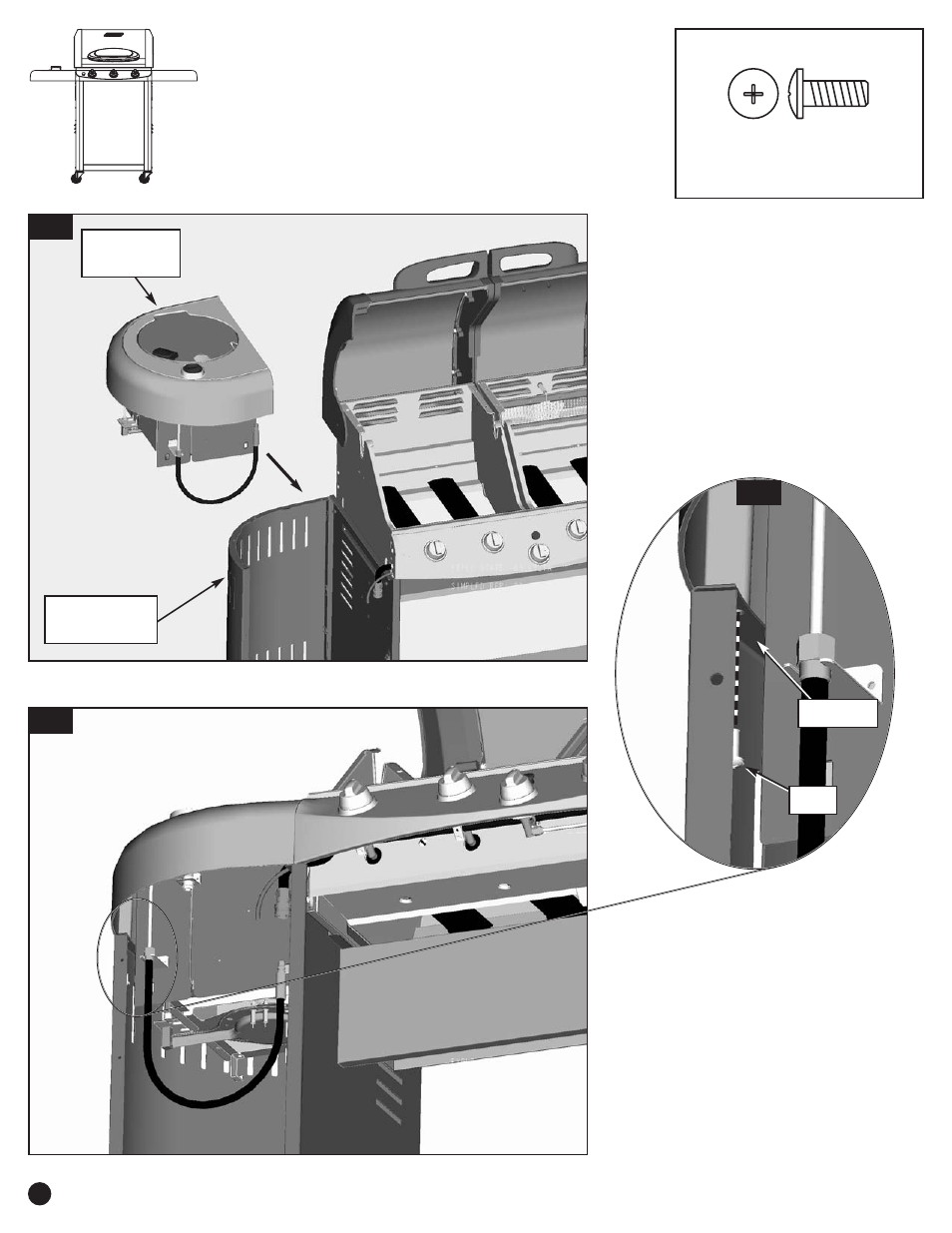

11-A. Raise the Grill Lids.
Ц Ц Place the Left Fryer Assembly against
the Firebox and on top of the Left Rear
Panel.
Hardware shown actual size
(TN)
M6 x 15mm Screw
(1) Qty.
11-B. Align three studs from Left Fryer
Assembly with slots in flange of the Left
Rear Panel.
Ц Ц LOOSELY install one Screw (TN)
upward through the Flange of the Left
Rear Panel into the Left Fryer Assembly.
Ц Ц NOTE: You will tighten this screw
LATER (after Step 12-C), after the left
side of the Firebox is attached to the
Grill Cart (this helps with alignment).
Left Fryer
Assembly
Flange
Left Rear
Panel
TN
16
