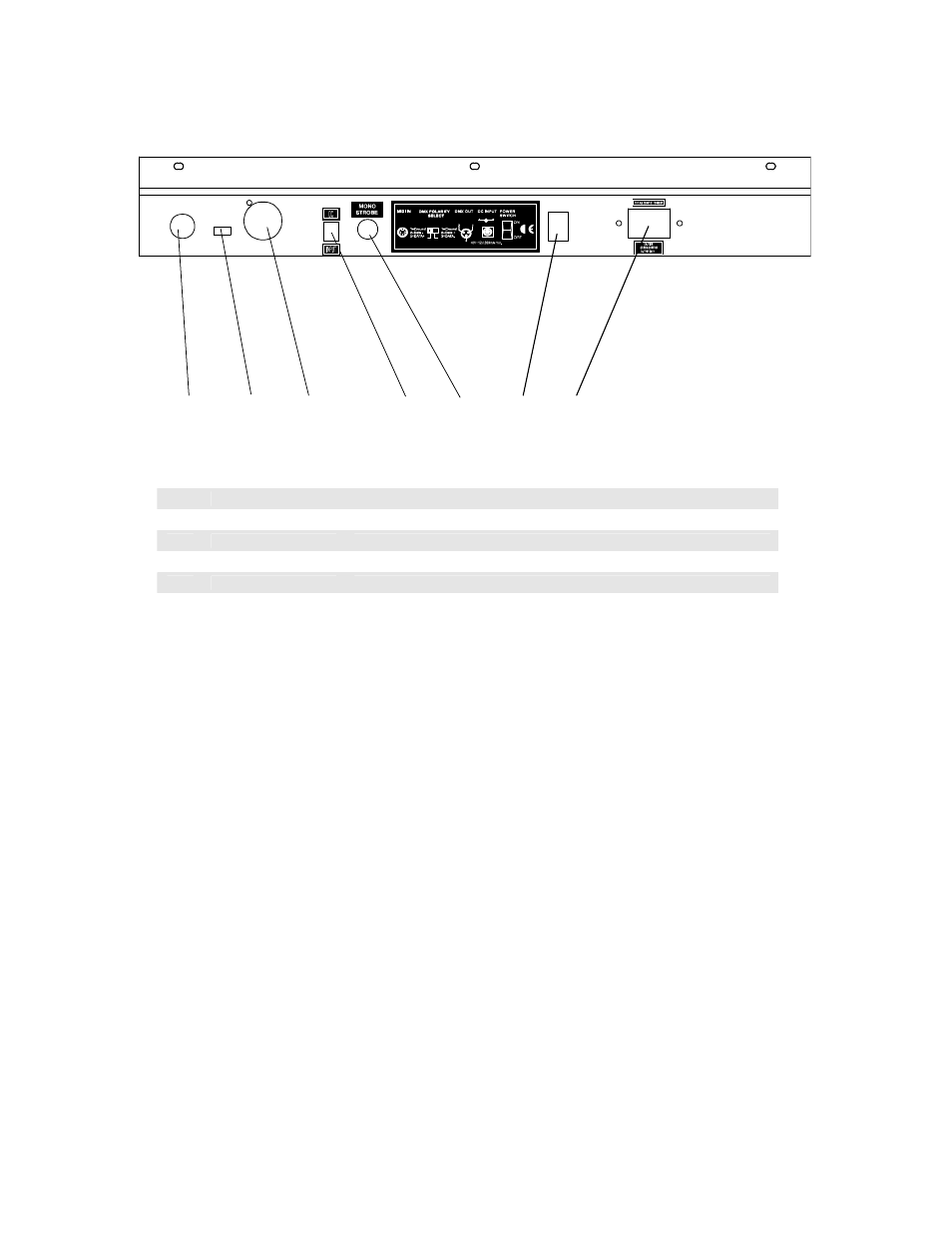

Product Overview (rear panel)
23 24 25 26 27
Item Button or Fader Function
23 MIDI input port For external triggering of Banks and Chases using a MIDI device
24 DMX polarity switch May be used to correct signal polarity
25 DMX output connector DMX control signal
26 DC Input jack Main power feed
27 Strobe connector Chauvet Mono Strobe ¼” connector for built in strobe controller
28 ON/OFF power switch Turns the controller on and off
29 Fog connector Chauvet fog controller IEC connector
28 29
