14
Vermont Castings VCBVTN/TP & VCPVTN/TP Room Heater
The Vermont Castings Majestic Products Company reserves the right to make changes in design, materials, specifications, prices and discontinue
colors and products at any time, without notice.
3770

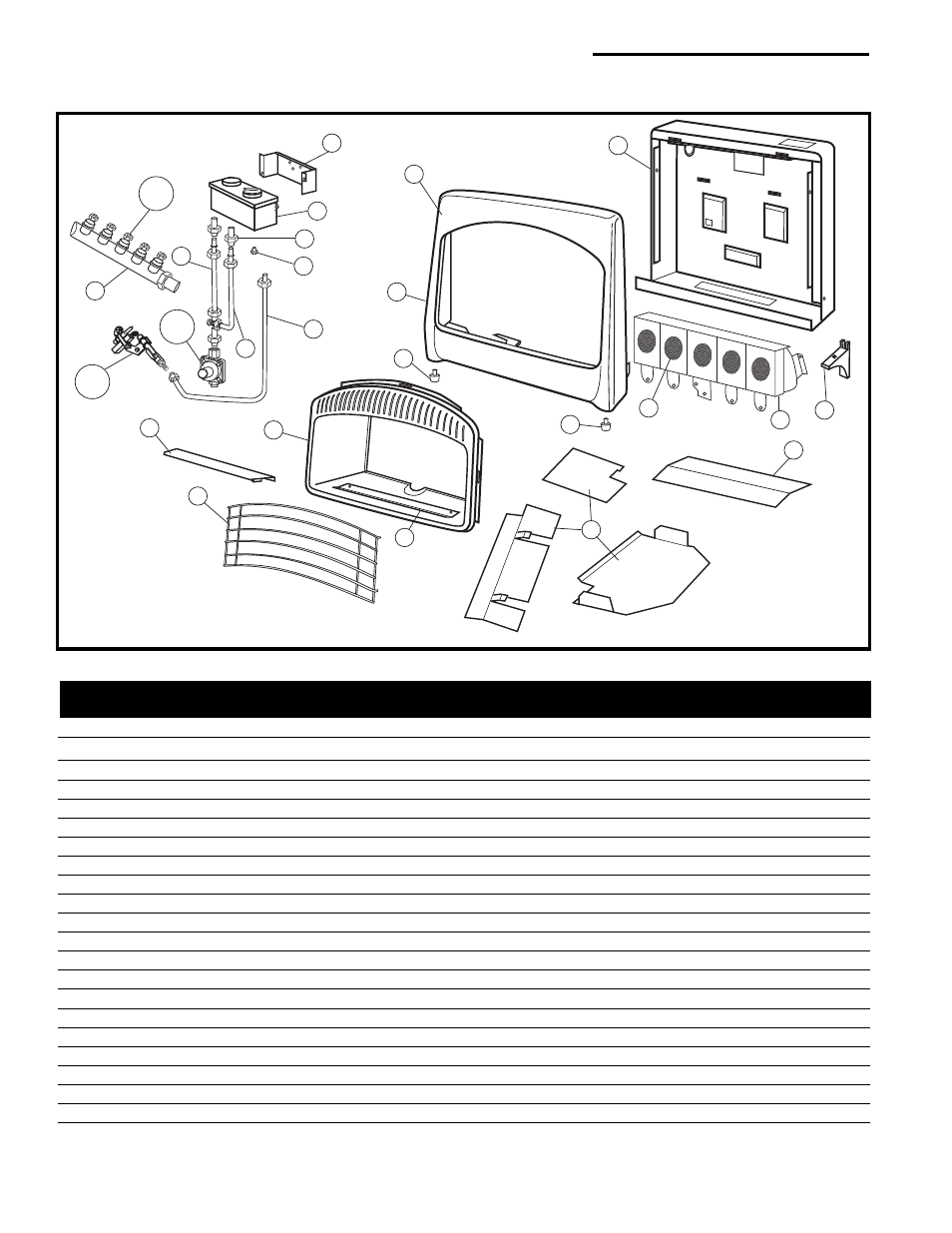

VCPVTN/ TP Unvented Room Heater
7
4
2
3
1
5
5
17
10
9
6
8
12
13
14
17
16
11
15
20a,b
18a,b
19
21
22
23a,b
1. Cover Heat - Lower RCP10XC0 RCP10XB0 RCP10XA0
2. Guard Assembly RBW33XX0 RBW30XX0 RBW26XX0
3. Reflector RCP34PX0 RCP33PX0 RCW10XX0
4. Cover Heat - Upper -- RBP61XB0 RBP61XA0
5. Leg - Front RBI06XX0 RBI06XX0 RBI06XX0
6. Front Panel RBP69PA0 RBP66PA0 RBP57PA0
7. Burner Body Assembly RCW13XX0 RCW12XX0 RCW11XX0
8. Ceramic - Plate RCC03XX0 RCC01XA0 RCC01XA0
9. Frame Body Assembly RBW32PA0 RBW27PB0 RBW20PA0
10. Leg - Rear RBI05XX0 RBI05XX0 RBI05XX0
11. Bracket - Valve RBP59XX0 RBP59XX0 RBP59XX0
12. Combination Gas Control RBA01XG0 RBA01XG0 RBA01XG0
13. Connector - “C” RBM03XX0 RBM03XX0 RBM03XX0
14. Connector - “B” RMB02XX0 RMB02XX0 RMB02XX0
15. Tubing ODS Assembly RCT63XX0 RCT57 RCT48
16. Tubing Outlet Assembly RCT62XX0 RCT56XX0 RCT47XX0
17. Tubing Inlet Assembly RCT61XX0 RCT55XX0 RCT46XX0
18a. ODS Pilot Assembly - Natural DS98JN01 DS98JN01 DS98JN01
18b. ODS Pilot Assembly - LP DS98JL01 DS98JL01 DS98JL01
19. Manifold Assembly -- RCT02PB0 RCT02PA0
Item / Model Number VCPV10TN/TP VCPV18TN/TP VCPV30TN/TP
