12
Vermont Castings VCBVTN/TP & VCPVTN/TP Room Heater
The Vermont Castings Majestic Products Company reserves the right to make changes in design, materials, specifications, prices and discontinue
colors and products at any time, without notice.
3771

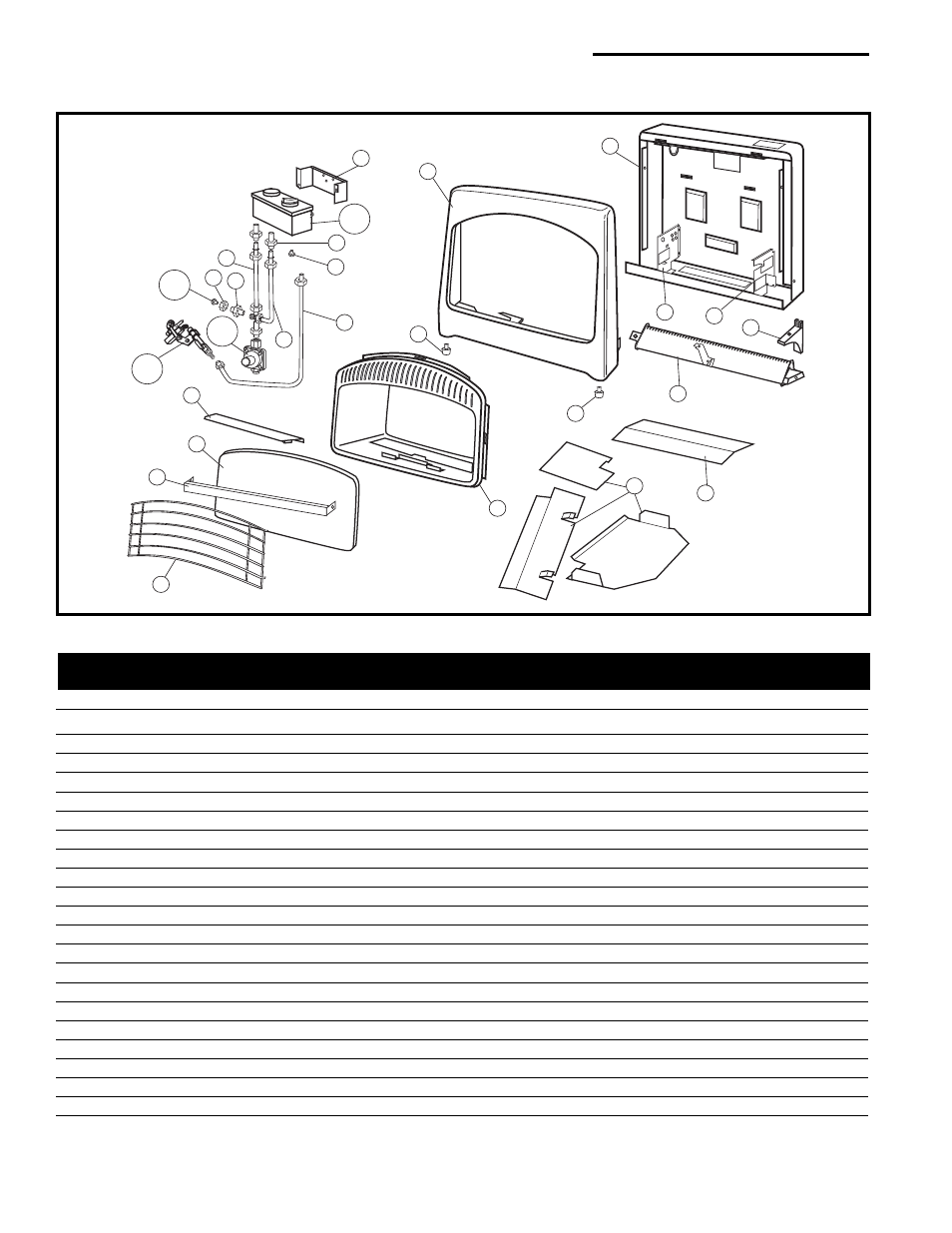

VCBVTN/ TP Unvented Room Heater
1. Guard Assembly RBW33XX0 RBW30XX0 RBW26XX0
2. Glass Panel RBC02XC0 RBC02XB0 RBC02XA0
3. Holder Glass RBP63PC0 RBP63PB0 RPB63XPA0
4. Reflector RBP71PX0 RBP70PX0 RBW23XX0
5. Front Panel RBP69PA0 RBP66PA0 RBW22XA0
6. Leg - Front RBI06XX0 RBI06XX0 RBI06XX0
7. Cover Heat - Upper -- RBP61XB0 RBP61XA0
8. Burner Assembly RBW13XX0 RBW09XX0 RBW08XX0
9a. Burner Support - Left RBP06XA0 RBP06XA0 RBP06XAO
9b. Burner Support - Right RBP06XB0 RBP06XB0 RBP06XB0
10. Frame Body Assembly RBW31PA0 RBW27PA0 RBW20PA0
11. Leg - Rear RBI05XX0 RBI05XX0 RBI05XX0
12. Bracket - Valve RBP59XX0 RBP59XX0 RBP59XX0
13a. Combination Gas Control - Natural RBAXE0 RBA01XC0 RBA01XA0
13b. Combination Gas Control - LP RBAXF0 RBA01XD0 RBA01XB0
14. Connector - “C” RBM03XX0 RBM03XX0 RBM03XX0
15. Connector - “B” RBM02XX0 RBM02XX0 RBM02XX0
16. Tubing ODS Assembly RBT25XX0 RBT19XX0 RBT13XX0
17. Tubing Outlet Assembly RBT24XX0 RBT18XX0 RBT12XX0
18. Tubing Inlet Assembly RBT23XX0 RBT17XX0 RBT11XX0
19. Nozzle Holder RBM06XX0 RBM06XX0 RBM06XX0
Item / Model Number VCBV10TN/TP VCBV20TN/TP VCBV30TN/TP
13a,b
14
15
18
17
7
2
3
1
4
6
6
5
9a
11
8
10
24
9b
12
16
19 20
21a,b
22a,b
23
25a,b
