7. Dell Instant Launch Manager
8. network connector
9. USB 3.0 connector
10. optical drive
11. optical drive eject button
12. fingerprint reader
13. USB 3.0 connector
14. touchpad
15. Secure Digital (SD) memory-card
reader
16. touchpad buttons (2)
17. wireless status light
18. battery status light
19. hard disk status light
20. power status light
21. touchpad disable LED
22. keyboard
23. power button

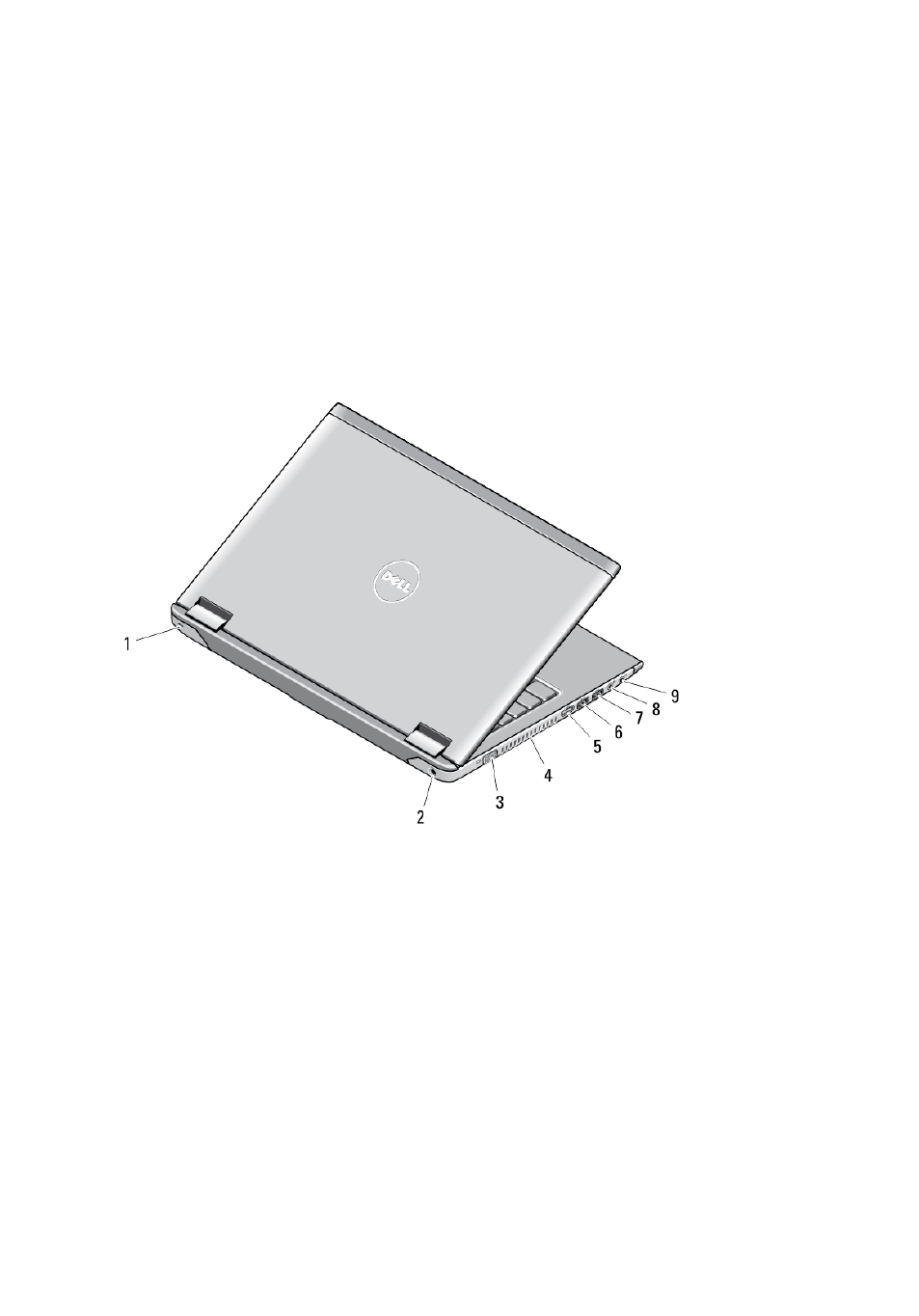

Figure 2. Back View
1. security cable slot
2. power connector
3. VGA connector
4. cooling vents
5. HDMI connector 6. powered USB 3.0 connector
7. USB 3.0 connector
8. microphone connector
9. headphone connector
