Introduction
DIGITAL 2T-CCMHA-CB Central Office Memory Channel Hub Installation/Service Guide 1–3
1.2.2 Operator Control Panel
The operator control panel (OCP), shown in Figure 1-2, is located on the front of the
Memory Channel hub chassis and consists of an On/Off switch, a Reset button, and three
LEDs.

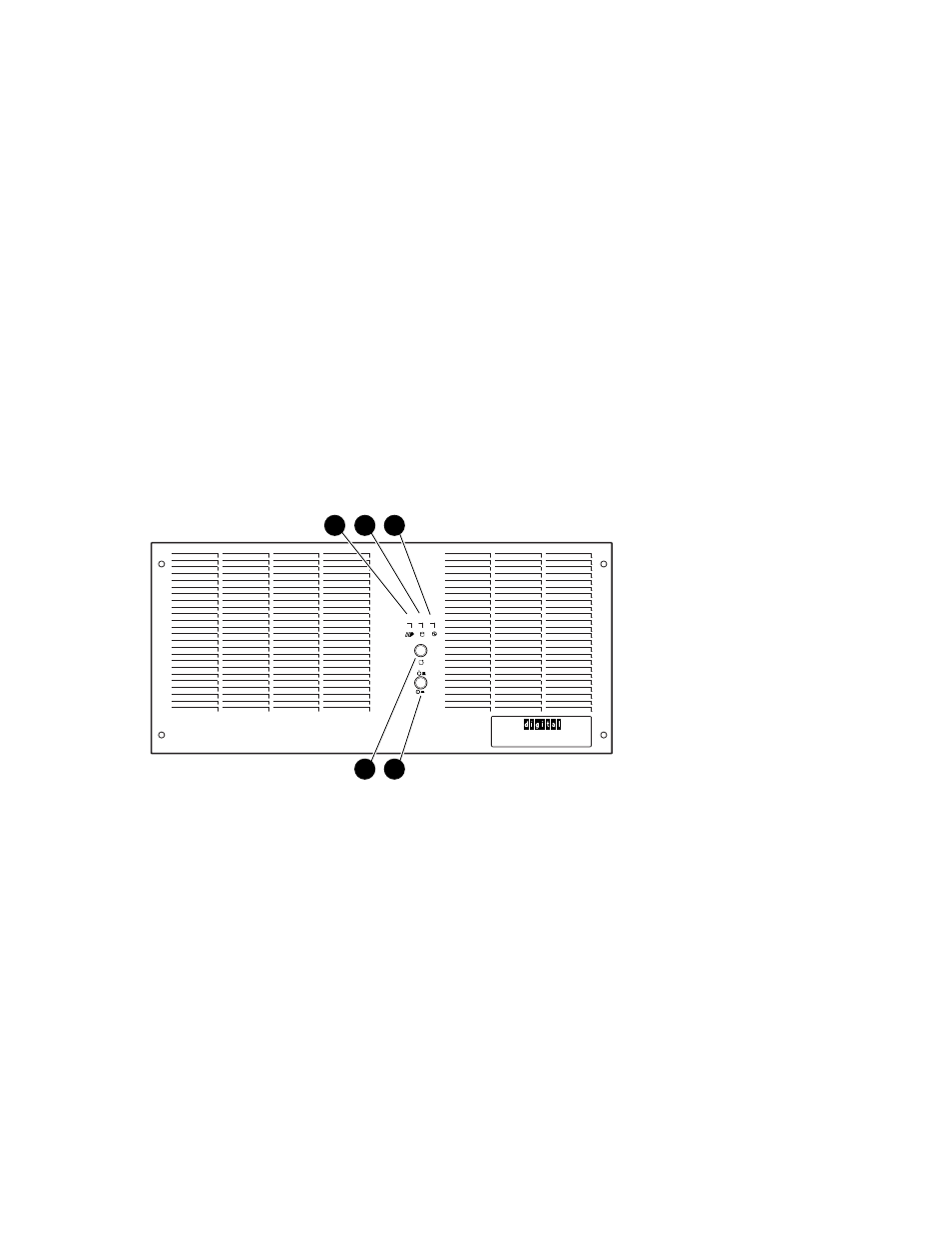

Figure 1-2 Operator Control Panel
LJ-06498.AI7
3
4
5
2
1
DIGITAL
Memory Channel Hub 100/8
Central Office
On/Off switch — Powers the system secondary dc power on or off.
Reset button — Initializes the system.
Turbo LED — Lit when computer runs at rated microprocessor speed. Not lit when in
non-turbo mode.
Disk LED — Indicates disk drive activity.
Power LED — Lit when power switch is On.
