Flipper
Mullion
Screw
Flipper
Mullion
Hinge

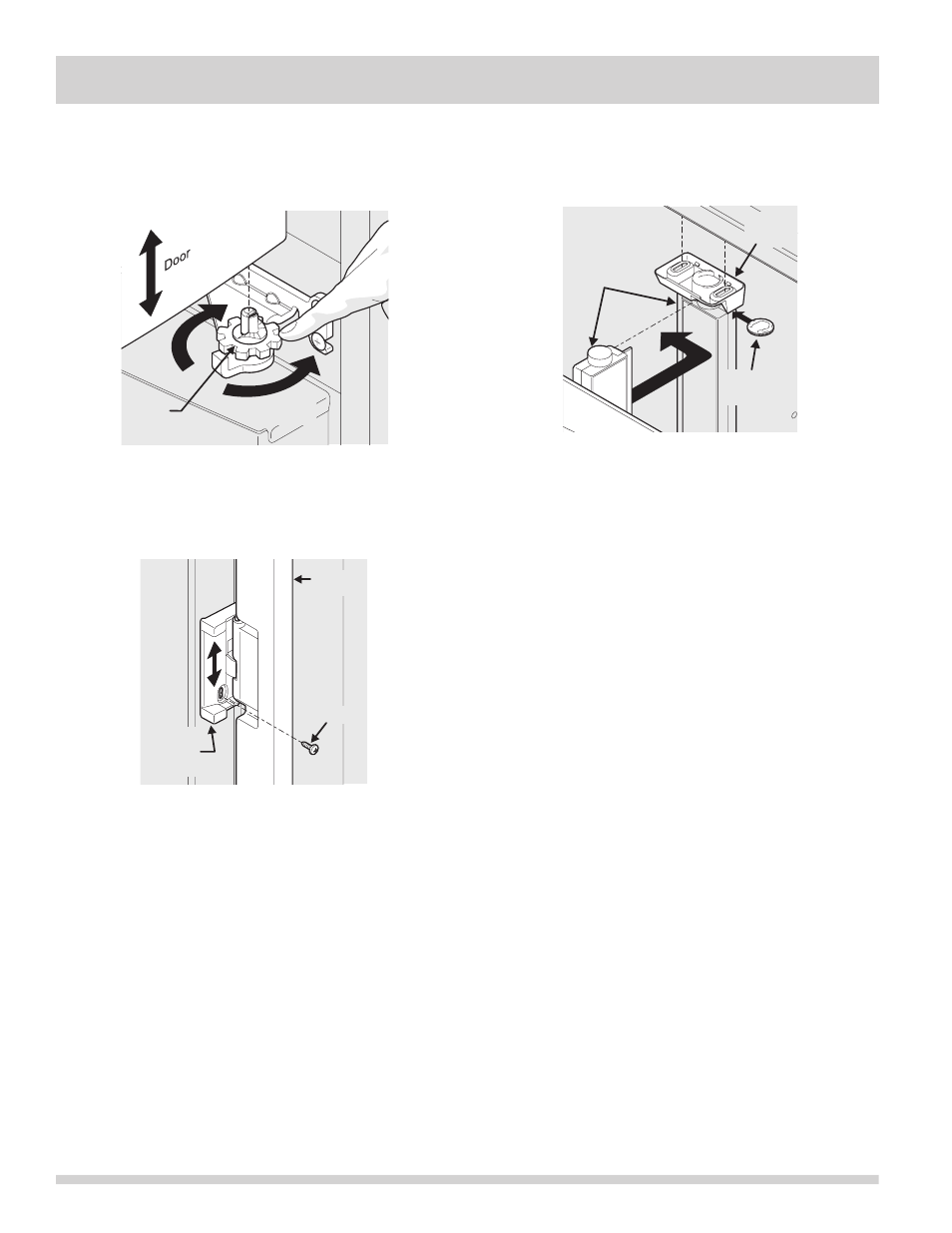

Adjusting Flipper Mullion Screw
To adjust the flipper mullion:
1 Loosen the screw located on the flipper mullion hinge.
2 Adjust flipper mullion height. For proper connection
with the flipper mullion guide, there should be a
separation about the thickness of a coin (0.060 inches,
or 1.5 mm) between the guide and flipper mullion.
3 Retighten screw.
4 Lift the door while adjusting the washer. To raise
the door, rotate washer clockwise (when viewed
from the bottom). To lower door, rotate washer
counterclockwise (when viewed from the bottom).
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
Lower
Door
Hinge
Washer
Raise
Door
Raising/Lowering Door
