Adagio™ Balanced Audio Receiver Crestron ABAR-1

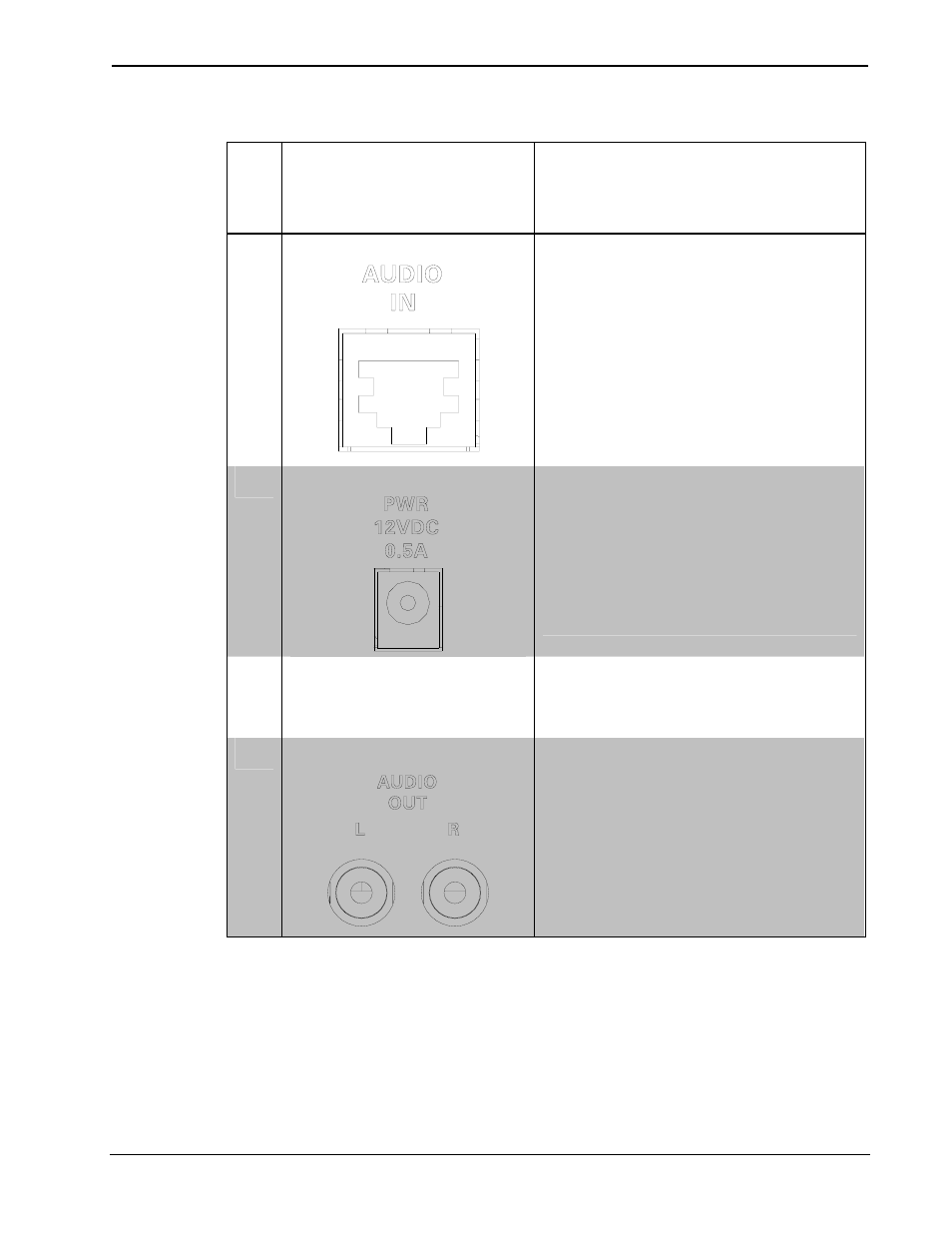

Connectors, Controls & Indicators
# CONNECTORS,
CONTROLS &
INDICATORS
DESCRIPTION
1 AUDIO IN
1 8
(1) 8-pin RJ-45 female,
shielded;
CAT5 balanced audio input
port;
Maximum Input Level: 4 V
rms
;
Input Impedance: 20k ohms;
Connects to “CH” CAT5 audio
output (or bidirectional) port*
2 PWR 12 VDC, 0.5A (1) 2.5mm barrel DC power
jack; 12 Volt DC power input
PW-1205 power supply
included with ABAR-1;
PW-1210-RU included with
ABARI-1
3 PWR LED (1) green LED, indicates
12 Volts DC power supplied
from power supply
4 OUTPUT (L & R) (2) RCA female;
Unbalanced stereo line-level
audio output;
Maximum Output Level: 2 V
rms
;
Output Impedance: 22 ohms
* This eight-pin RJ-45 port receives audio output signals from Crestron Home (CH)
products such as the CNXRMCLV, CEN-IDOC, and CNX-BIPAD8 (as well as
others). This port uses CAT5 wiring. Refer to the following table for connector
pinouts.
4 • Adagio™ Balanced Audio Receiver: ABAR-1 Operations Guide – DOC. 6549A
