Adagio™ Balanced Audio Receiver
Crestron ABAR-1

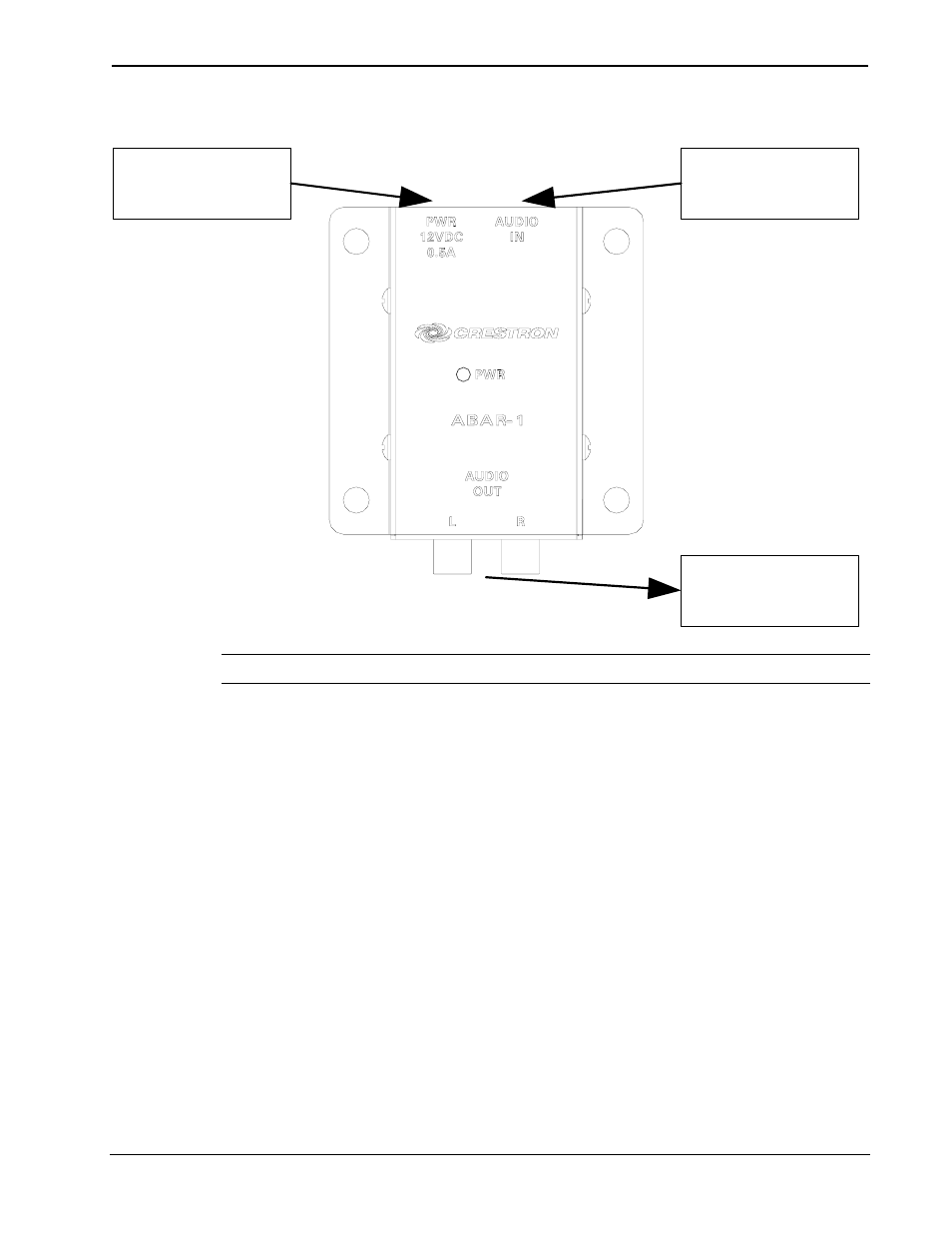

Hardware Connections for the ABAR-1
AUDIO OUT (RCA):
CARRIES UNBALANCED
AUDIO
PWR:
FROM POWER PACK
(12VDC, 0.5A)
AUDIO IN (CAT5):
CARRIES BALANCED
AUDIO
NOTE: For CAT5 wire, use Crestron Certified Wire.
8
• Adagio™ Balanced Audio Receiver: ABAR-1
Operations Guide – DOC. 6549A
