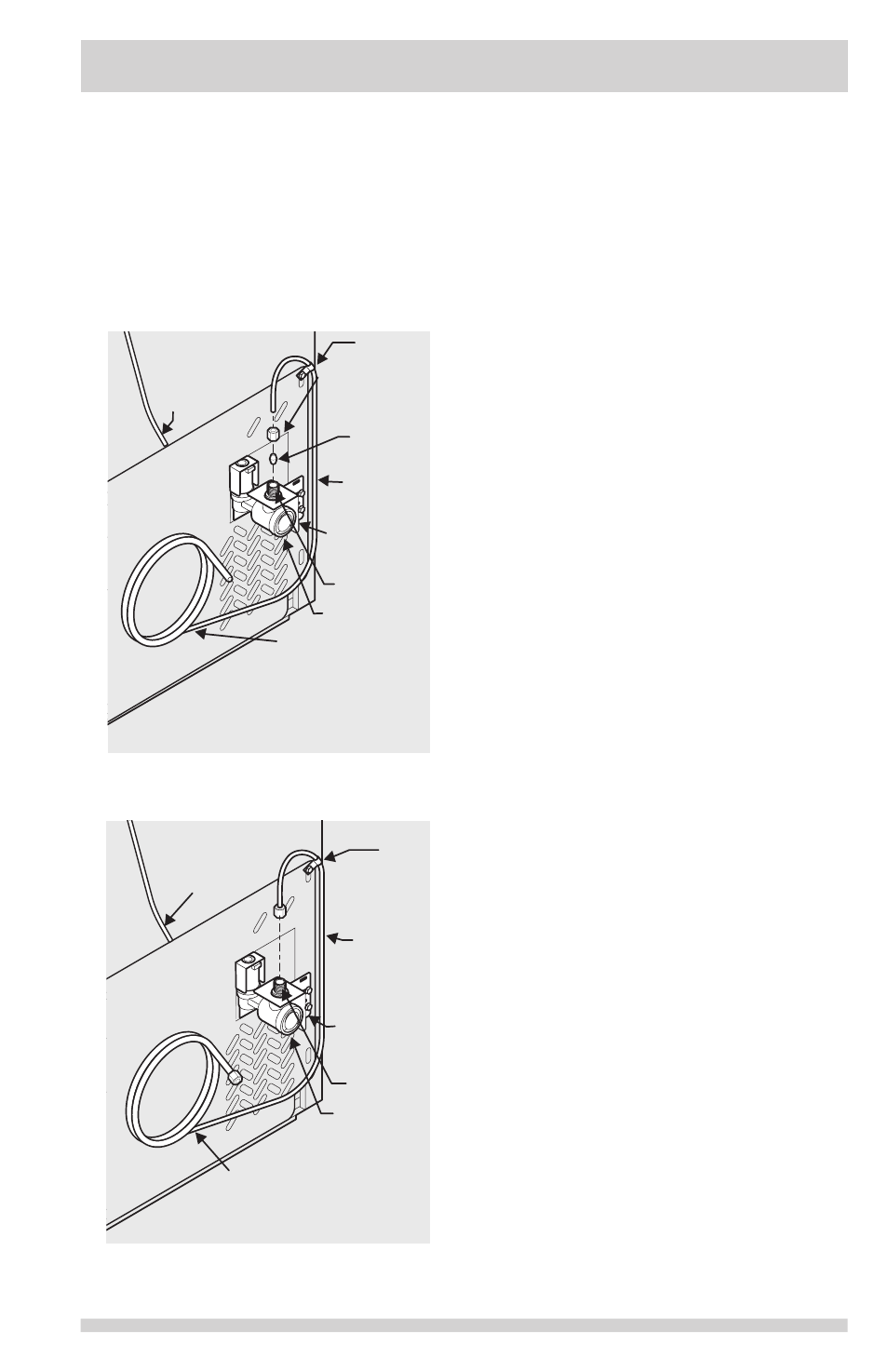

Figure 2
Steel
Clamp
Stainless
Steel
water Line
Water Valve
Bracket
Valve Inlet
Water Valve
6 ft. Stainless Steel water line
from household water supply
Plastic Water Tubing
to Ice Maker
Fill Tube
Figure 1
Plastic Water
Tubing to Ice
Maker Fill
Tube
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper water line
from household
water supply
(Include enough tubing in loop
to allow moving refrigerator out
for cleaning.)
CONNECTING THE WATER SUPPLY
7. Turn ON water supply at shutoff valve and
tighten any connections that leak.
8. Reconnect refrigerator to electrical power
source.
9. To turn ice maker on, lower wire signal
arm (side mounted) or set the ice maker’s
On/Off power switch to the “I” position
(rear mounted).
