2 f a cilities – Camco Amplifier User Manual
Page 11
2 F
A
CILITIES
8
9
13
14
10
11 12
1 2 3
4
5
6
7
24
26
28
27
29
25
23
30
15
17
18
20
22
16
19
21
USER MANUAL
VORTEX 3 QUADRO
P.9

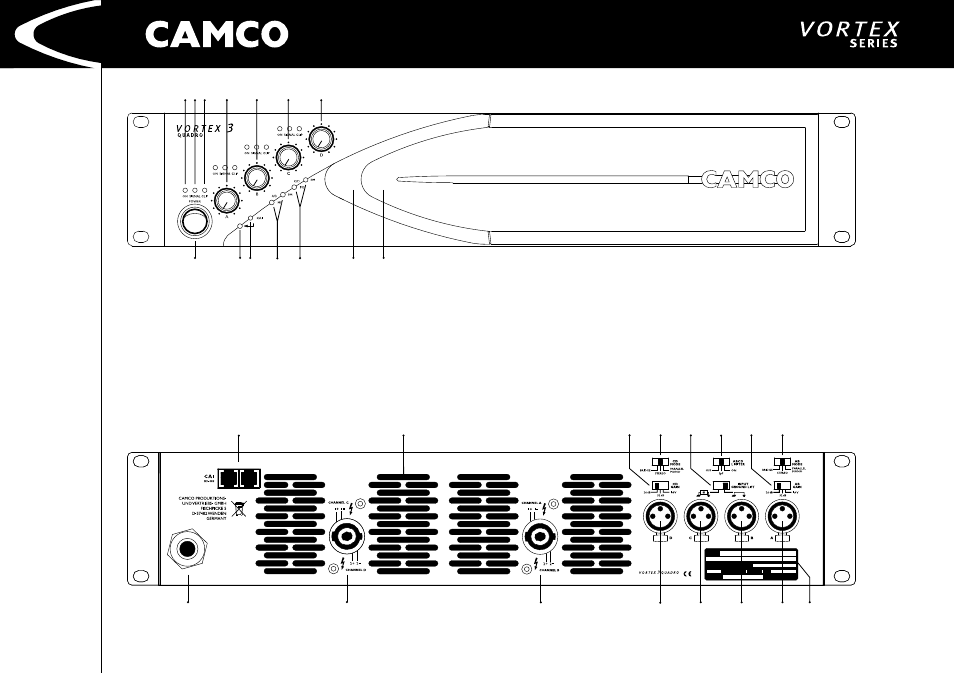

VORTEX 3 QUADRO – The Front
On LEDs (multifunctional)
2 Signal LEDs
3 Clip LEDs (multifunctional)
4 Volume Control Channel A
5 Volume Control Channel B
6 Volume Control Channel C
7 Volume Control Channel D
8 On/Off Switch
9 Enter-Switch (behind Front Panel)
0 CAI Status Indicator
Operating Mode Indicators Ch. A/B
2 Operating Mode Indicators Ch. C/D
3 Removable Air Filter System
4 Cooling Air Inlet Vents
VORTEX 3 QUADRO – The Rear
5 CAMCO Audio Interface (CAI)
6 Cooling Air Outlet Vents
7 Gain Selector Ch. C/D
8 Mode Selector Ch. C/D
9 Input Ground Lift Switch
20 Limiter Switch Ch. A/B/C/D
2 Gain Selector Ch. A/B
22 Mode Selector Ch. A/B
23 AC Power Cable
24 SPEAKON Outlet Ch. C/D
25 SPEAKON Outlet Ch. A/B
26 XLR-Line Input Ch. D
27 XLR-Line Input Ch. C
28 XLR-Line Input Ch. B
29 XLR-Line Input Ch. A
30 Rating Plate
