Circuit Breaker: Back-panel breaker provides
overload protection.
Mode Switch: Back-panel switch selects Dual or
Bridge-Mono mode.
Indicators
Signal Presence Indicators: Two green LEDs,
one for each channel, illuminate when the
channel’s input signal exceeds –40 dBu.
Clip Indicators: Two red LEDs, one for each
channel, illuminate when the channel’s output is
being overdriven.
Power Indicator: Blue LED indicates amplifi er
has been turned on and AC power is available.
Fault Indicator: Two red LEDs, one for each
channel, illuminate when amplifi er is in protect
mode. Also illuminates briefl y during normal
power-up when amplifi er is fi rst switched on.
Input/Output
Input Connectors: One per channel; back-
panel three-pin female XLR input connectors.
Output Connectors: Two 4-Pole Speakon ®
Output Connectors accept 2-pole or 4-pole
Speakon
® connectors. The top Speakon con-
nector is wired for both channels so it can
be used for bridge-mono wiring or for stereo
wiring of two speakers to a single Speakon
connector.
One pair of back-panel binding posts per chan-
nel; accepts banana plugs or bare wire. (Euro-
pean models do not accept banana plugs.)
Protection
XLS Series amplifi ers provide extensive pro-
tection and diagnostic capabilities, including
output current limiting, DC protection, circuit
breaker, and thermal protection.
Construction
Ventilation: Flow-through ventilation from
front to back.
Cooling: Internal heat sinks with forced-air
cooling for rapid, uniform heat dissipation.
Air Volume Requirements (per minute per
unit): 80.15 ft³ (2.27 m³).
Dimensions (XLS 202, 402, 602, 802): EIA
Standard 19-inch (48.3-cm) rack mount width
(EIA RS-310-B), 3.5-inch (8.9-cm) height and
15.2-inch (38.6-cm) depth.
Dimensions (XLS 5000): EIA Standard 19-inch
(48.3-cm) rack mount width (EIA RS-310-B),
5.25-inch (13.3-cm) height and 15.5-inch
(39.5-cm) depth.
Weight
Net Weight:
XLS-202: 23.0 lb (10.4 kg)
XLS-402: 25.7 lb (11.7 kg)
XLS-602: 29.0 lb (13.2 kg)
XLS-802: 35.5 lb (16.1 kg)
XLS-5000: 62.0 lb* (27.7 kg)*
Shipping Weight:
XLS-202: 28.0 lb (12.7 kg)
XLS-402: 30.7 lb (13.9 kg)
XLS-602: 34.0 lb (15.4 kg)
XLS-802: 40.5 lb (18.4 kg)
XLS-5000: 74.0 lb* (33.6 kg)*
*Preliminary

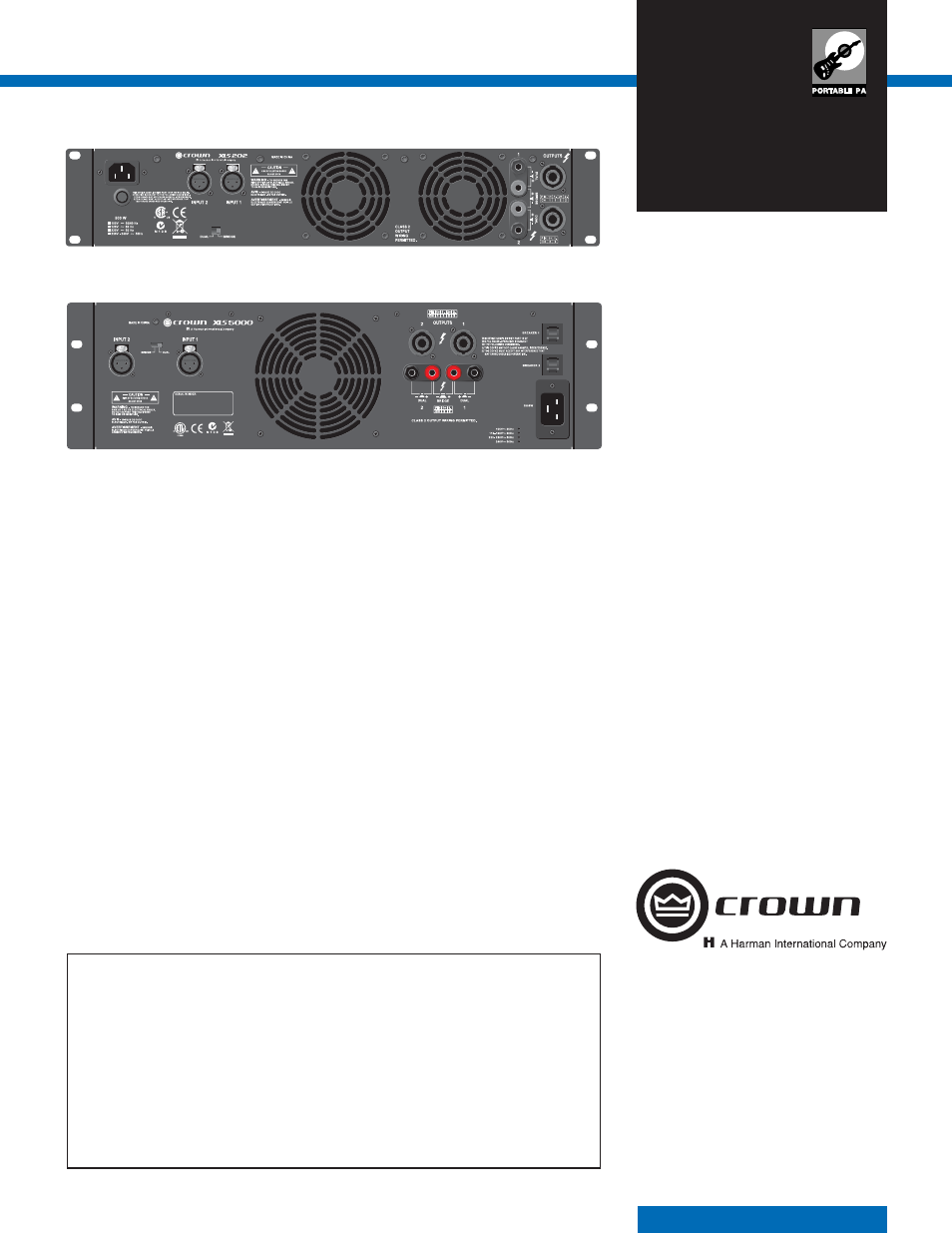

XLS 202, 402, 602, 802 Back Panel
XLS 5000 Back Panel
