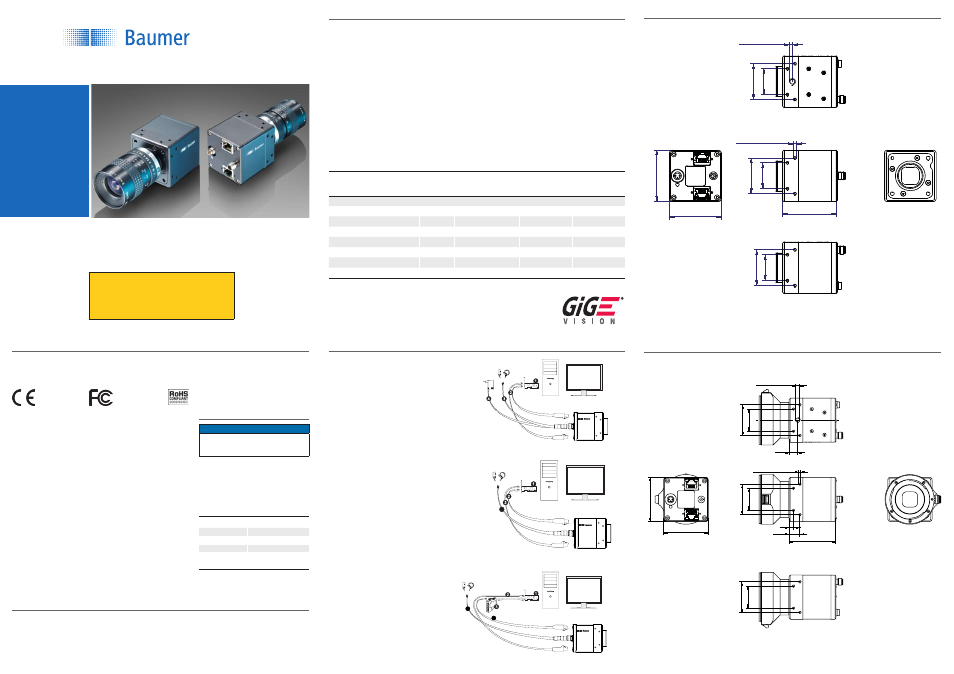

Quick Start Guide
HXG cameras with CMOS sensors (Release 2)
Product Specification
HXG cameras – Maximum Performance with CMOSIS sensors
Dual Gigabit Ethernet progressive scan CMOS camera
▪
Binning, subsampling, true partial scan function (ROI) for increased frame rates
▪
High Dynamic Range (HDR) image acquisition
▪
External synchronization via industrial compliant process interface (trigger / flash)
▪
Global shutter architecture for minimized motion blur
▪
Power over Ethernet support
▪
Standard RJ45 connectors
▪
GigE Vision
▪
TM
standard compliant
Excellent image quality
▪
Camera parameter programmable in real-time
▪
Frame rates up to 105 fps (HXG20 / Monochrome)
▪
Camera Type
Sensor
Size
Resolution
Full Frames
[max. fps]
Burst Mode
(buffered)
Monochrome
HXG20
2/3“
2048 x 1088
105
337
HXG20NIR
2/3“
2048 x 1088
105
337
HXG40
1“
2048 x 2048
56
180
HXG40NIR
1“
2048 x 2048
56
180
Color
HXG20
2/3“
2048 x 1088
105
337
HXG40
1“
2048 x 2048
56
180
Installation
open wire
Installation sample without PoE
1 - network interface card
2 - network cable
3 - Process interface cable
4 - Power cable
Dimensions
● HXG-F (F-Mount version)
36 26
26
36
16 x M3 depth 6
UNC 1/4-20
52
52
26
36
55
5
12,5
10
Dimensions
● HXG (C-Mount version)
52
52
26
36
UNC 1/4 - 20
26
36
16xM3 deph 5
26
36
54,7
open wire
4
open wire
5
4
Installation sample with PoE via NIC
1 - PoE network interface card (NIC)
2 - network cable (PoE)
3 - network cable (without PoE)
4 - Process interface cable
Installation sample with PoE via Injector
1 - network interface card (NIC)
2 - network cable (without PoE)
3 - Injector
4 - network cable (with PoE)
5 - Process interface cable
