RFSDV24/34 Freestanding Direct Vent Gas Fireplace
10003550
Fireplace Dimensions

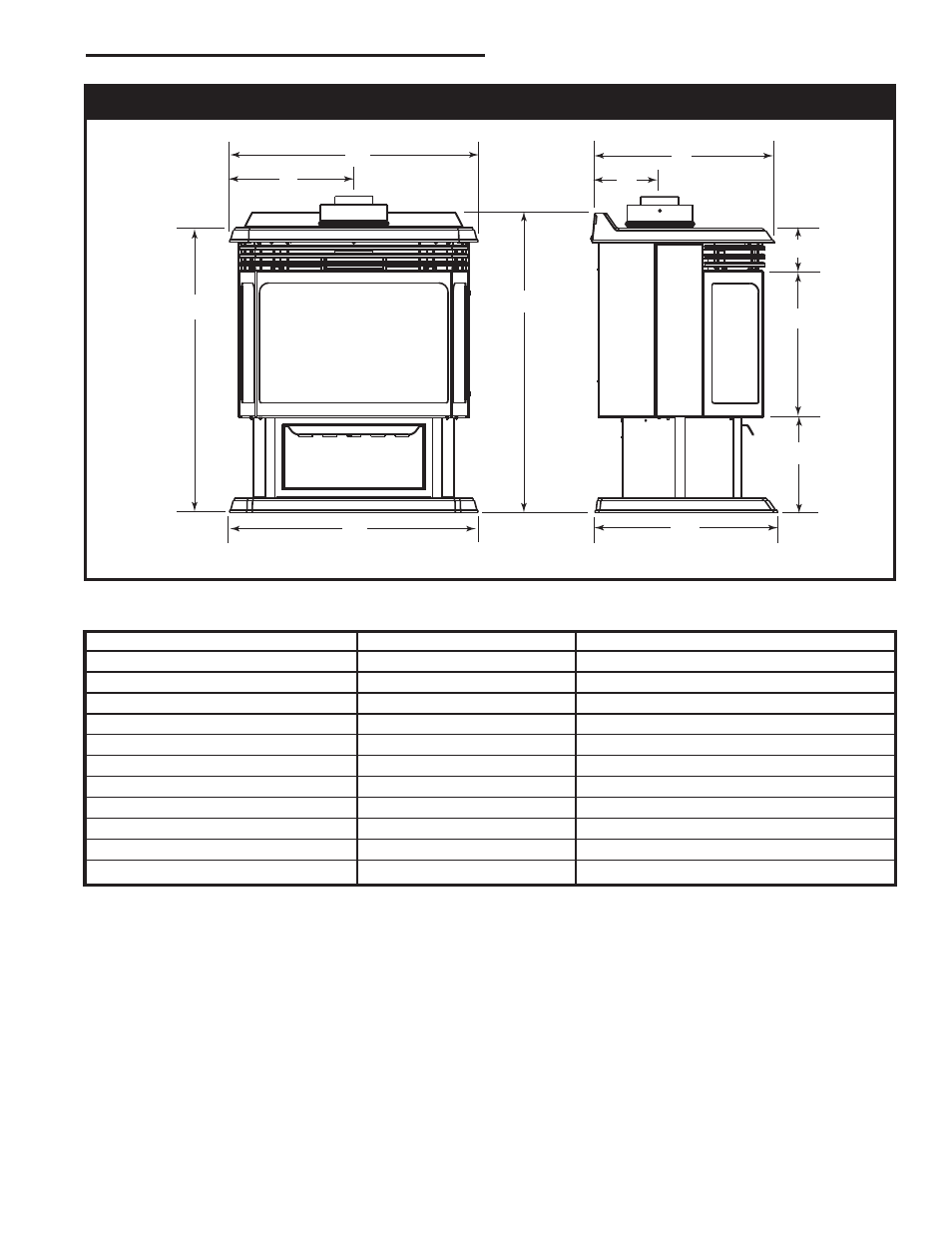

Fig. 1 Fireplace specifications and framing dimensions.
A
D
I
H
B
K
J
G
F
E
C
3550
RFSDV34 dims
Ref.
RFSDV24
RFSDV34
A
23”
(584 mm)
26¹⁄₄”
(667 mm)
B
28³⁄₄”
(730 mm)
31¹⁄₂”
(800 mm)
C
16⁵⁄₈”
(422 mm)
19³⁄₈”
(492 mm)
D
27³⁄₈”
(695 mm)
30”
(762 mm)
E
9¹⁄₂”
(241 mm)
10”
(254 mm)
F
13⁷⁄₈”
(352 mm)
15¹⁄₂”
(394 mm)
G
4”
(102 mm)
4¹⁄₂”
(114 mm)
H
23”
(584 mm)
26¹⁄₄”
(667 mm)
I
11¹⁄₂”
(292 mm)
13¹⁄₈”
(333 mm)
J
16⁵⁄₈”
(422 mm)
19¹⁄₂”
(495 mm)
K
6”
(152 mm)
6³⁄₈”
(162 mm)
