RFSDV24/34 Freestanding Direct Vent Gas Fireplace
10003550

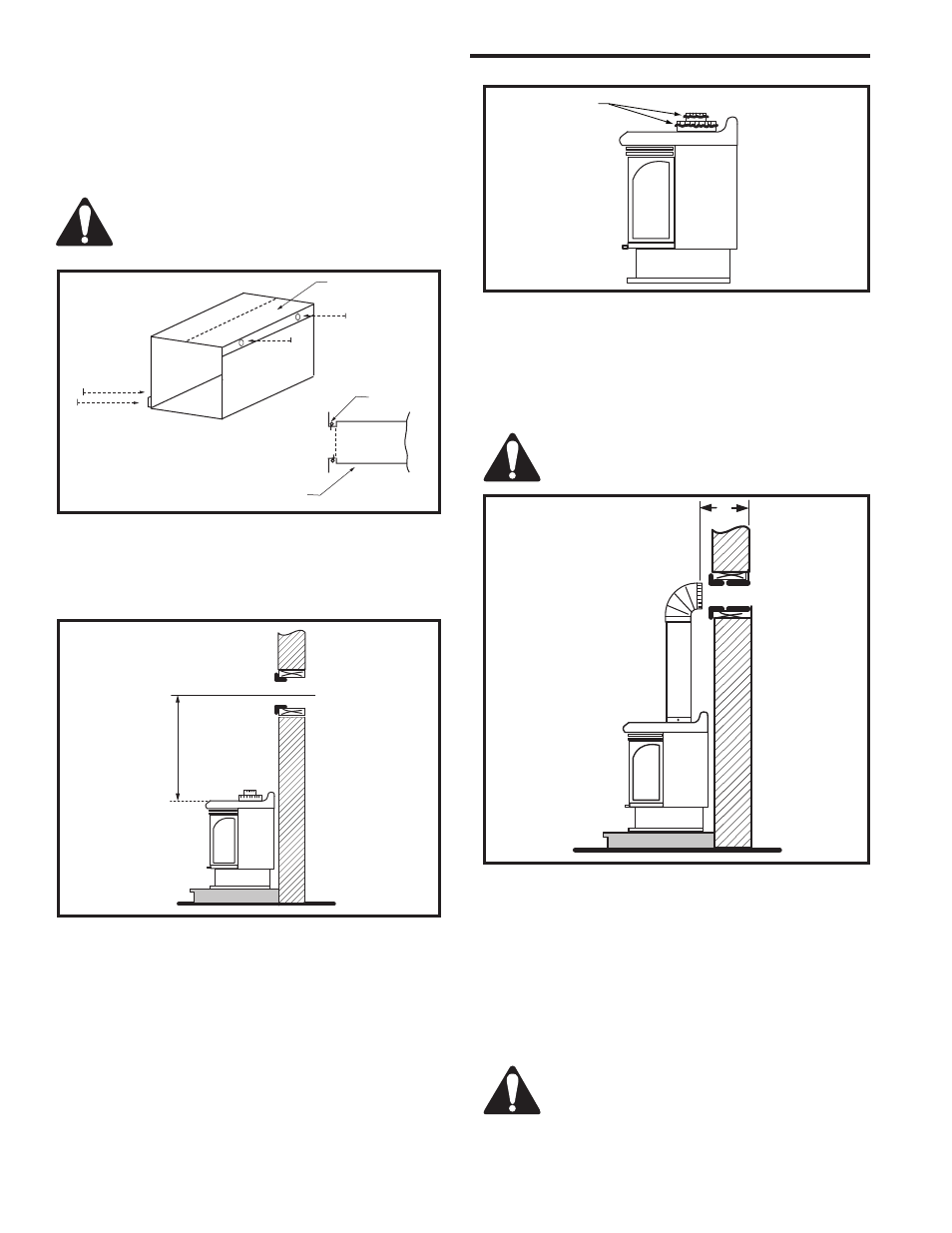

STEP 2
Measure wall thickness and cut zero clearance sleeve
parts to proper length (MAXIMUM 12”/305 mm). As-
semble sleeve and attach to firestop with #8 sheet
metal screws (supplied). Install firestop assembly. (Fig.
14)
Zero clearance sleeve is only required for
combustible walls.
X
������
������������
FP1508
Fig. 15 Height to center of wall opening.
ZCS101
Zero Clearance Sleeve
3/11/99 djt
Max. Length
12” (305mm)
#8 Screws (2)
#8 Screws
(2)
Adjustable
Zero Clearance
Sleeve
#8 Screws
(2)
Adjustable Zero Clearance Sleeve
ZCS101
Fig. 14 Adjustable zero clearance sleeve.
Firestop
STEP 3
Place fireplace into position. (Fig. 15) Measure the ver-
tical height (X) required from the base of the flue collars
to the center of the wall opening.
STEP 4
Apply a bead of high temperature sealant to the inner
and outer flue collars of the fireplace and using ap-
propriate venting component(s) attach to fireplace with
three (3) screws. (Fig. 16) Follow with the installation
of the inner and outer elbow. Again secure joints as
described on Page 8.
FSDV Step 4b
8-26-02 rjs
FP1509
Bead of Sealant
Fig. 16 Horizontal vent length.
STEP 5
Measure the horizontal length requirement including a
2” (51mm) overlap, ie from the elbow to the outside wall
face plus 2” (51mm) (or the distance required if install-
ing a second 90° elbow). (Fig. 17)
Always install horizontal venting on a level
plane.
X
FP1510
Fig. 17 Horizontal length to wall.
STEP 6
NOTE: If using charcoal wall plate Pt. #10000257,
and collar Pt. # 52203-CG, put them in place before
putting the pipe sections through the wall.
Use appropriate length of pipe sections - telescopic or
fixed - and install the horizontal vent sections. The sec-
tions which go through the wall are packaged with the
starter kit, and can be cut to suit if necessary. (Fig. 18)
Sealing vent pipe and firestop gaps with
high temperature sealant will restrict cold
air being drawn in around fireplace.
