32
RFSDV24/34 Freestanding Direct Vent Gas Fireplace
10003550
Optional Gold Trim Kit
A decorative gold-plated window trim kit, Model
RFSDV24TKG is available for the RFSDV24 Free-
standing Fireplace.
Kit contents:
(1) Gold-plated window trim
(4) Magnets
Installation Procedure
1. Unpack the kit and confirm all parts are present.
2. It is very important to remove all the protective plas-
tic wrap from the gold window trim.
3. Attach the magnets to the trim. (Fig. 39)
4. Position trim against the fireplace window frame as-
sembly. The trim is held in place by the magnets.
NOTE: Only gold cleaner is to be used for this
window trim. Do not use brass polish or household
cleaners, as these products will damage the trim.
Gold cleaner products can be obtained from any
fireplace dealer.
Clean gold trim with a soft clean cloth slightly
dampened with gold cleaner product. Buff with a
soft dry cloth.
FP1521
RFSDV magnets
6/04
(2) Larger Radi of
the Trim are to be
‘Up’ after Installation
Magnets
FP1521

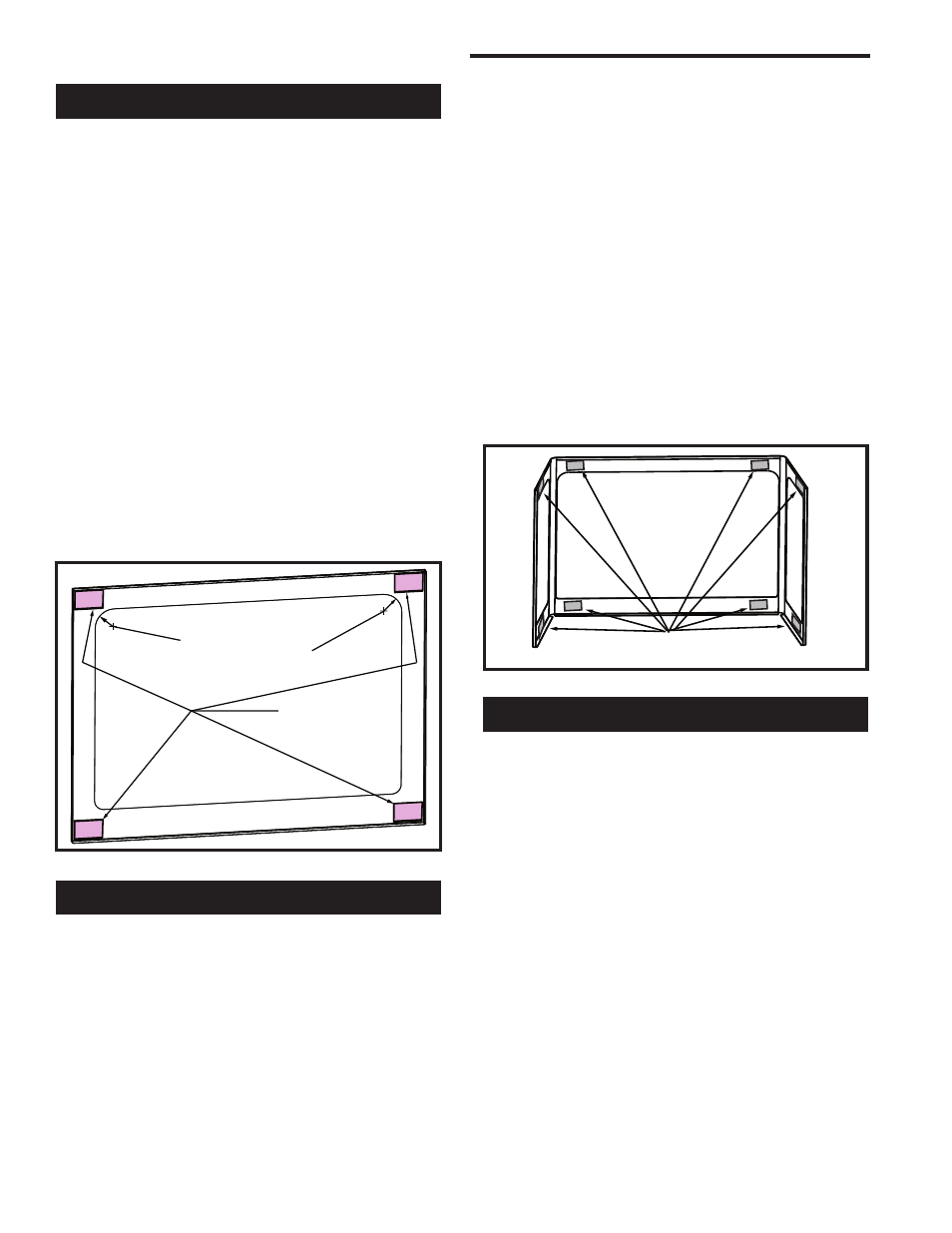

Fig. 39 RFSDV24TKG magnet locations.
Optional Brass Trim Kit
A decorative brass window trim kit, Model
RFSDV34TKA is available for the RFSDV34 Freestand-
ing Fireplace.
Kit contents:
(1) Brass window trim
(8) Magnets
(3) Brass trim rings (for the vent pipe joints)
Installation Procedure
1. Unpack the kit and confirm all parts are present.
2. It is very important to remove all the protective plas-
tic wrap from the brass components
3. Attach the magnets to the trim. (Fig. 40)
4. Position trim against the fireplace window frame as-
sembly. The trim will be held in place by the mag-
nets.
5. Fit the brass rings in place around any visible vent
joints.
NOTE: Use only lemon oil to clean this window trim
as directed below. Lemon oil can be obtained from
supermarkets and hardware stores. Do not use
brass polish or household cleaners, as these prod-
ucts will damage the trim.
Clean brass trim with a soft clean cloth slightly
dampened with lemon oil. Buff with a soft dry cloth.
FP1522
window trim
6/04
FP1522
Place Magnets Here
Fig. 40 RFSDV34TKA magnet locations.
Remote Control Options
These remote controls are available as an option only
on fireplaces fitted with RN/RP gas control valves.
Model Function Controlled
RC1 ON/OFF
RC2 ON/OFF and Temperature
MRC3 ON/OFF and Temperature control with
a digital display and a programmable
24 our clock
IMT Wall mounted thermostat control
