RS232/RS485 Setting Menu

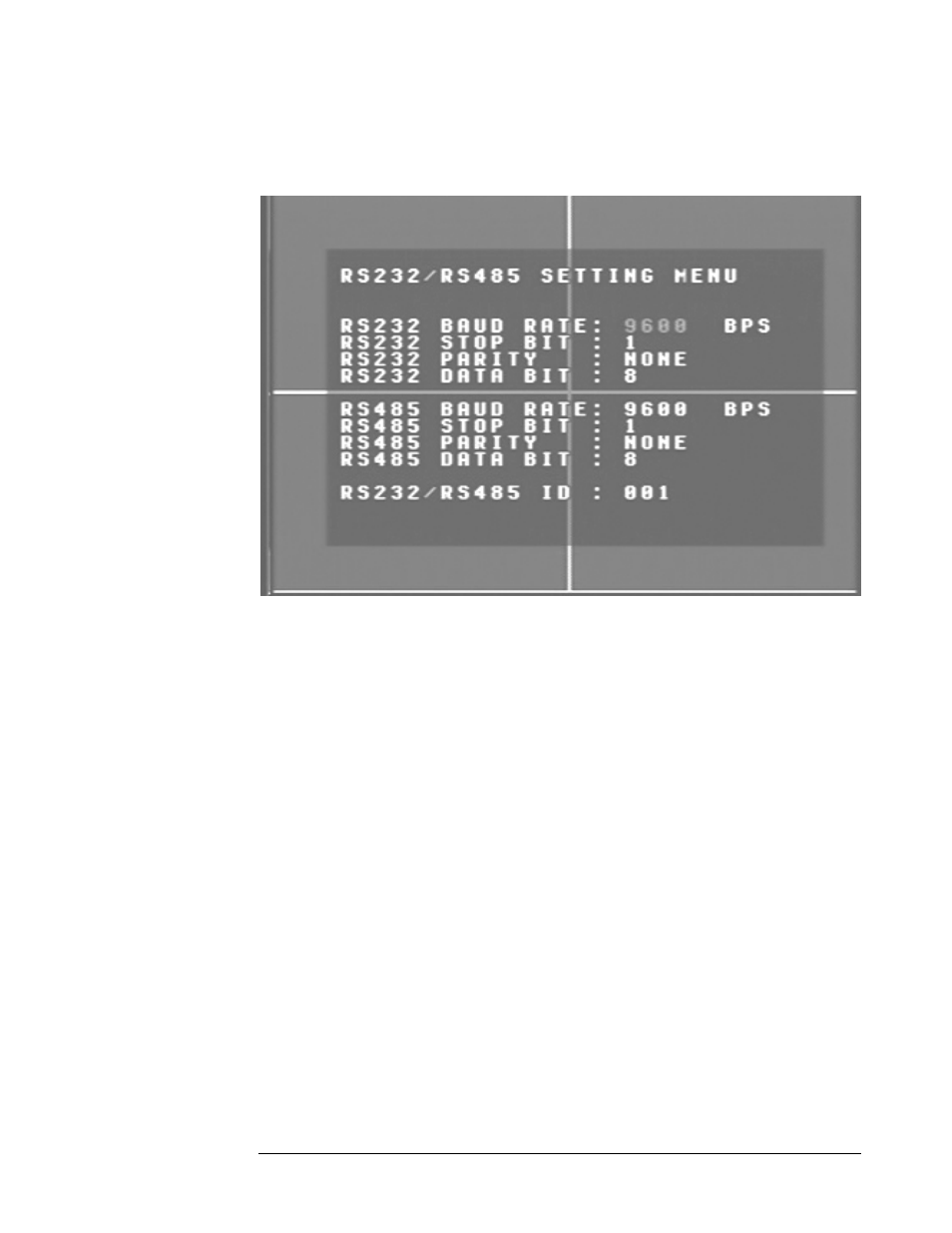

Diagram 12
Diagram twelve is a screen shot of the RS232/RS485 Setting Menu. This menu is for
setting up a connection from the digital recorder to a computer to transfer instructions
or information using the HyperTerminal program in Windows. In the RS232/RS485
Setting Menu the following fields are defined as follows:
RS232:
¾ RS232 Baud Rate: This field is to set the speed at which is used to transmit
instruction or information through the RS232 port on the DVR. There are
six different speeds, 1200 BPS, 2400 BPS, 4800 BPS, 9600 BPS, 19200
BPS, and 3840 BPS. The default setting from the factory is 9600 BPS. To
change this, simply use the arrow keys on the DVR which also represent
the channel 1-4 keys (These are the top four buttons). Use the up and
down arrow keys to make your selection.
¾ RS232 Stop Bit: This field is to set the stop bit for the RS232 connection.
There are two different stop bits, 1 or 2. The default in the DVR is set to
1. To change this, simply use the arrow keys on the DVR which also
represent the channel 1-4 keys (These are the top four buttons). Use the
up and down arrow keys to make your selection.
