FORD 2012 Shelby GT 500 v.2 - Manual (Page 234)

WARNING: Always disconnect the battery before servicing high
current fuses.
WARNING: To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.

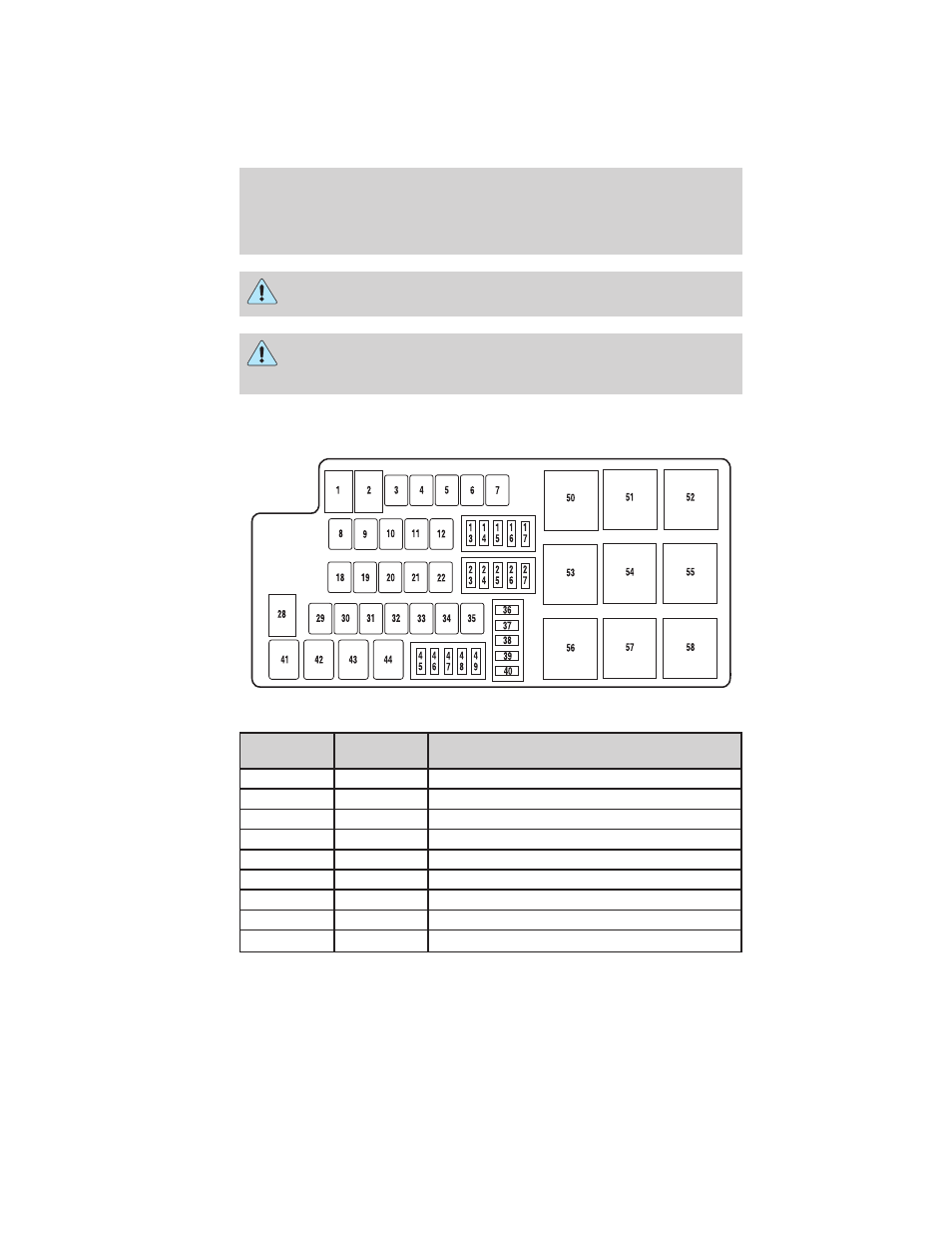

The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
1 80A* Passenger compartment fuse panel
2 — Not used
3 — Not used
4 30A* Blower motor relay
5 20A* Powerpoint (body)
6 40A* Rear defroster
7 40A* Cooling fan relay
8 40A* Anti-lock brake system (ABS) pump
9 30A* Wipers
Roadside Emergencies
