CHANGING A BULB - VEHICLES
WITH: 5-DOOR
WARNINGS
Switch the lamps and the ignition off.
Let the bulb cool down before
removing it.
Do not touch the glass of the bulb.
Note: Only fit bulbs of the correct
specification.
Note: The following instructions describe
how to remove the bulbs. Fit replacements
in the reverse order unless otherwise stated.

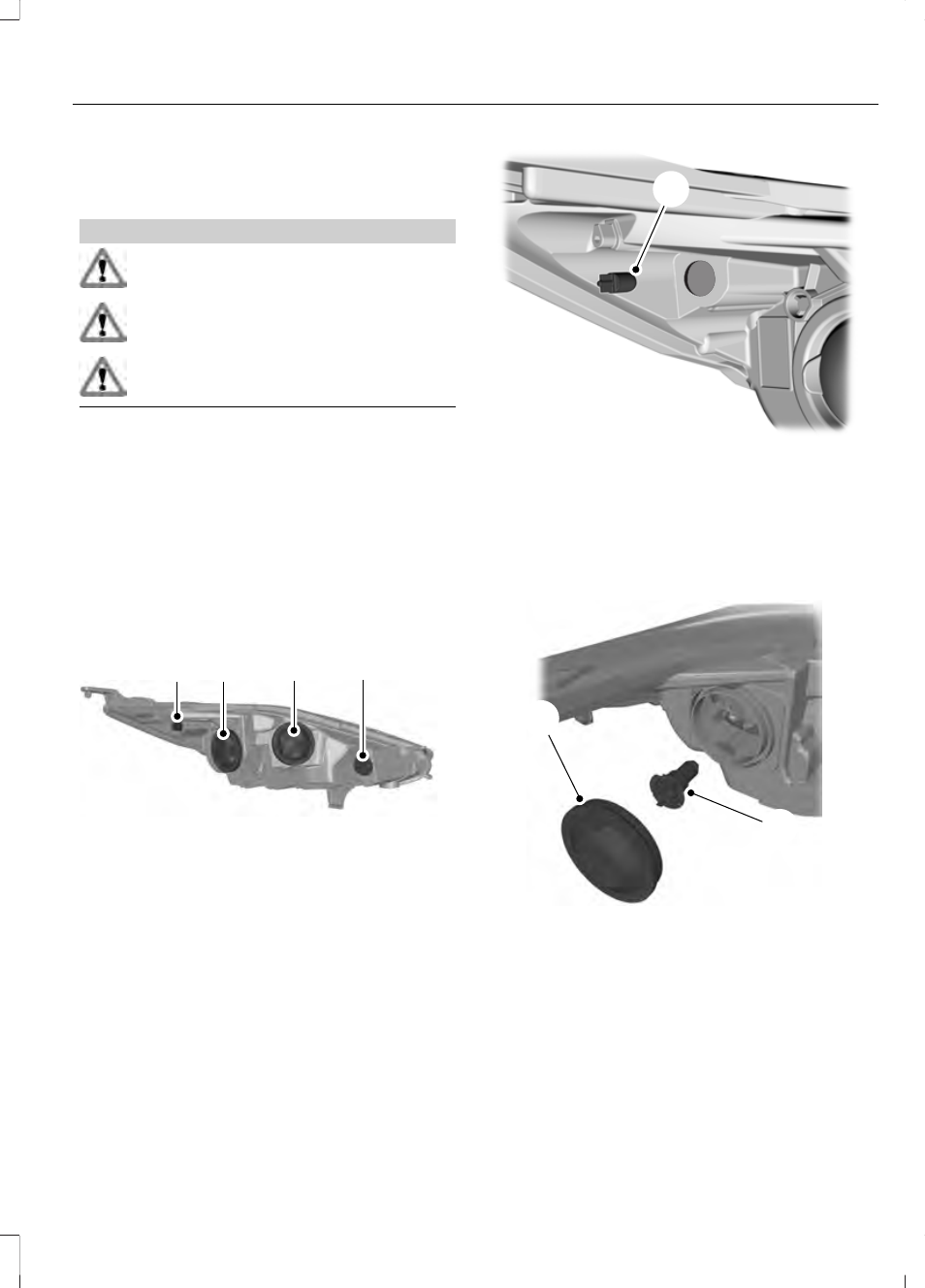

Headlamp
Note: Remove the covers to gain access to
the bulbs.
B A C D
E159827
Side marker A
Headlamp low beam B
Headlamp high beam C
Direction indicator D
Side Marker
1. Remove the headlamp. See
Removing a Headlamp (page 189).
E161707
A
2. Remove the bulb holder.
3. Remove the bulb.
Headlamp Low Beam
1. Remove the headlamp. See
Removing a Headlamp (page 189).
E146803
4
2
2. Remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
Note: Do not touch the glass of the bulb.
Headlamp High Beam
1. Remove the headlamp. See
Removing a Headlamp (page 189).
195
Fiesta (CCT) Vehicles Built From: 01-04-2013, Vehicles Built Up To: 31-12-2013
