Fuses – FORD 2015 Transit v.1 User Manual
Page 198
Circuits switched
Relay
Horn.
R7
Trailer tow back-up lamp.
R8
Front blower motor.
R9
Rear blower motor.
R10
Heated rear window.
R11
Heated exterior mirrors.
Not used.
R12
Modified vehicle connections.
R13
Pre-fuse Box
E148828
Circuits protected
Fuse rating
Fuse

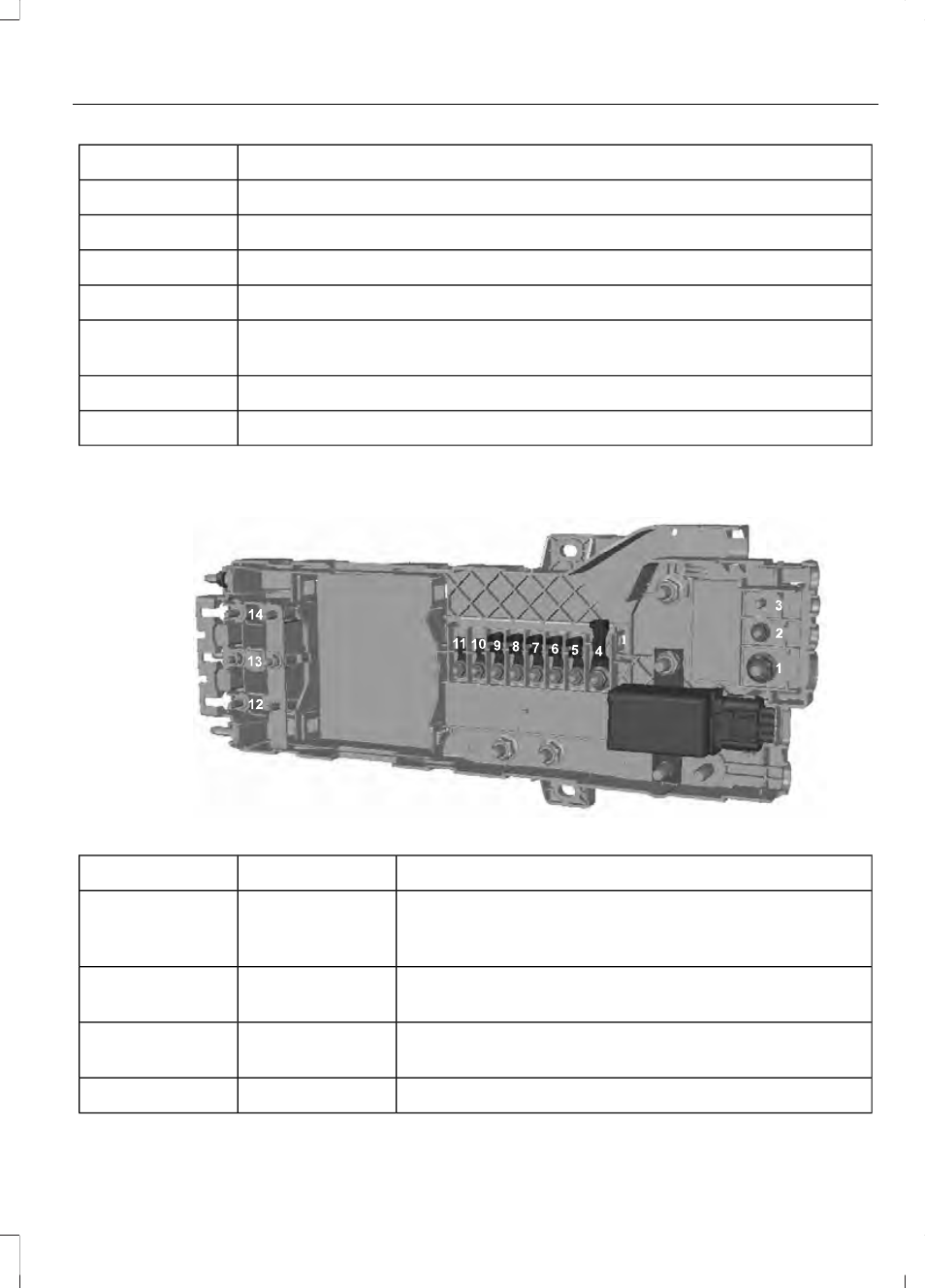

Engine compartment fuse box.
470A
F1
Starter motor.
Alternator.
Passenger compartment fuse panel.
100A
F2
Body control module fuse box.
Powertrain control module.
40A
F3
Anti-lock brake system.
Passenger compartment fuse panel.
200A
F4
195
Transit (TTH) Canada/United States of America, enUSA, Edition date: 03/2014
Fuses
