B&D N1134 - Manual (Page 5)

5
Access
Door
Gap between floor
and bottom of door
must not exceed 6mm.
Safety
Reversing Sensor
The Chamberlain Group, Inc.

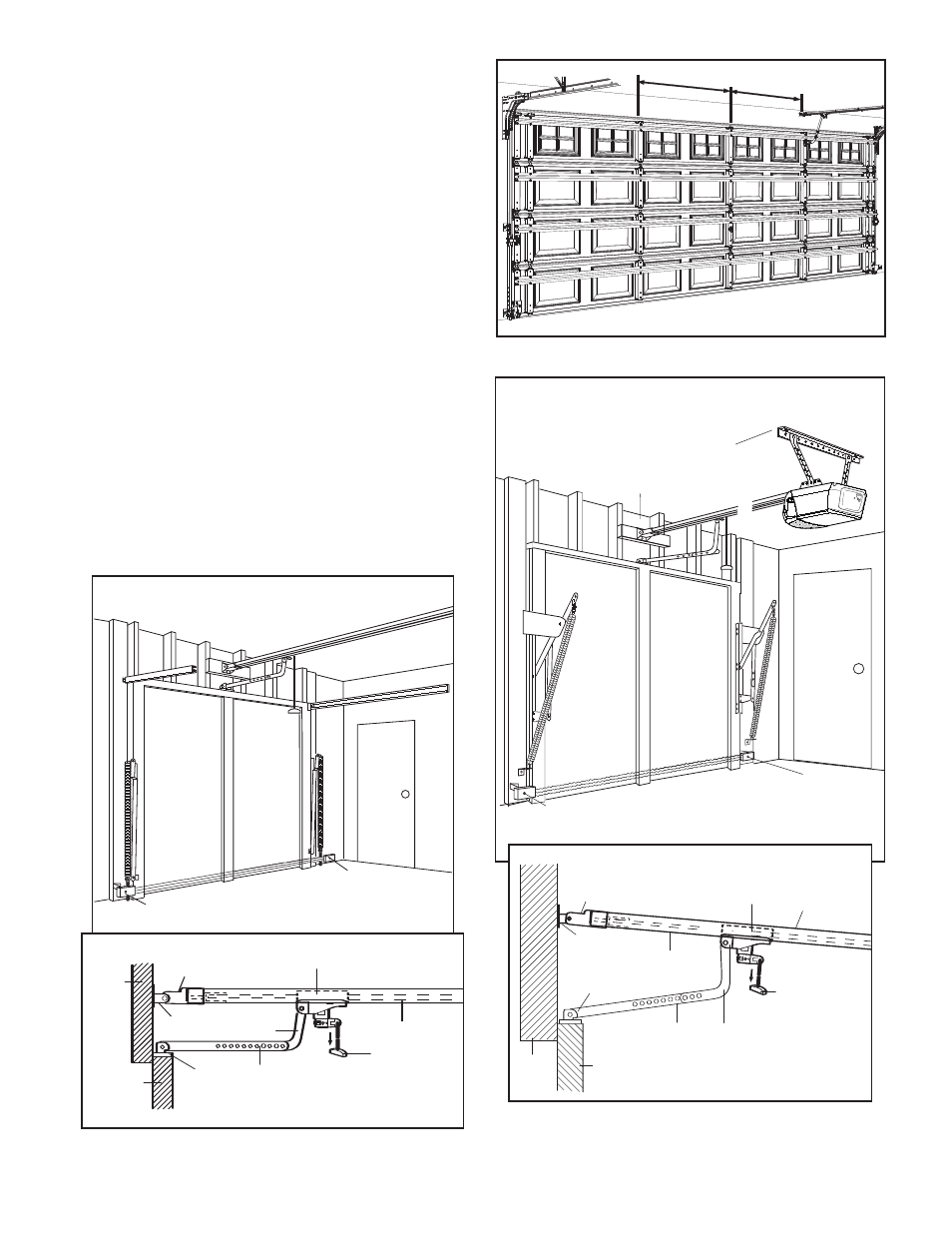

One-Piece Door with Track Installation (Cable -USA)
3/3/93
Header
Bracket
Header Sleeve Bracket
Door
Bracket Straight
Door
Arm
Curved
Door Arm
Trolley
Emergency
Release
Rope & Handle
Rail
Garage
Door
Header
Wall
Safety
Reversing Sensor
CLOSED POSITION
Safety Reversing Sensor
FINISHED CEILING
Support bracket & fastening
hardware is required. See page 17.
Safety
Reversing
Sensor
Gap between floor and bottom
of door must not exceed 6mm.
Header
Wall
Access Door
Header
Sleeve Bracket
Header
Bracket
Door Bracket
Header
Wall Garage
Door
One-Piece Door without Track
Safety Reversing Sensor
FINISHED CEILING
Support bracket
& fastening
hardware is required.
See page 17.
Safety
Reversing
Sensor
Gap between floor and bottom
of door must not exceed 6mm.
Header
Wall
Access Door
CLOSED POSITION
Header
Sleeve Bracket
Header
Bracket
Trolley
Straight
Door
Arm
Emergency
Release
Rope &
Handle
Door Bracket
Curved
Door
Arm
Header
Wall
Rail
Garage
Door
Chain
One-Piece Door with Track
Access
Door
Gap between floor
and bottom of door
must not exceed 6mm.
Safety
Reversing Sensor
The Chamberlain Group, Inc.
One-Piece Door with Track Installation (Cable -USA)
3/3/93
Header
Bracket
Header Sleeve Bracket
Door
Bracket Straight
Door
Arm
Curved
Door Arm
Trolley
Emergency
Release
Rope & Handle
Rail
Garage
Door
Header
Wall
Safety
Reversing Sensor
CLOSED POSITION
114A2845
OFF CENTRE INSTALLATION OF OPENER
In situations where obstruction prevent mounting the
opener centrally, offsetting the opener attachment is
possible within the following range -
1/4 Door width
from centre.
NOTE: Even though it is acceptable practise to off
centre mount the opener, the further off centre the
opener is mounted the more dependent is the door
operation on a good installation. This relates to
correct set-up of opener and track, and correct door
balance.
The installation of the IR Safety Sensor is
recommended for an off centre mount application.
ONE-PIECE DOOR INSTALLATIONS
• Generally, a one-piece door does not require
reinforcement. If your door is lightweight, you can
refer to the information relating to sectional doors
in Installation Step 11.
• Depending on your door’s construction, you may
need additional mounting hardware for the door
bracket (Step 11).
• The gap between the bottom of the garage door
and the floor cannot exceed 6mm. Otherwise, the
safety reverse system may not work properly. See
Adjustment Step 3. The floor or the door should be
repaired.
1 1//4 4 D Do oo orr W Wiid dtth h
1/4 D Do oo orr W Wiid dtth h
