WIRING INSTRUCTIONS FOR
ACCESSORIES

•

Place entrapment warning label on the inside of
door as a reminder of safe operating procedures.
Place the manual release/safety reverse test
label in plain view on the inside of the garage
door.

To prevent possible SERIOUS INJURY or DEATH from
electrocution:

• Be sure power is not connected BEFORE installing door

control.

To prevent possible SERIOUS INJURY or DEATH from a
closing garage door:

• Install door control within sight of garage door, out of

reach of children at a minimum height of 1.5m, and
away from all moving parts of door.

• NEVER permit children to operate or play with door

control push buttons or remote control transmitters.

• Activate door ONLY when it can be seen clearly, is

properly adjusted, and there are no obstructions to door
travel.

• ALWAYS keep garage door in sight until completely

closed. NEVER permit anyone to cross path of closing
garage door.

WARNING

CAUTION

WARN

ARNING

ING

WARNING

ATTENTION

AVERTISSEMENT

KEY SWITCH MODEL 059009

To opener terminal: white to 2; white/red to 1.

SAFETY INFRARED REVERSING SENSOR
MODEL 062153

To opener terminal screws: white to 2; Black to 3.

DOOR CONTROL PANEL 062159

To opener terminal: white to 2; white/red to 1.

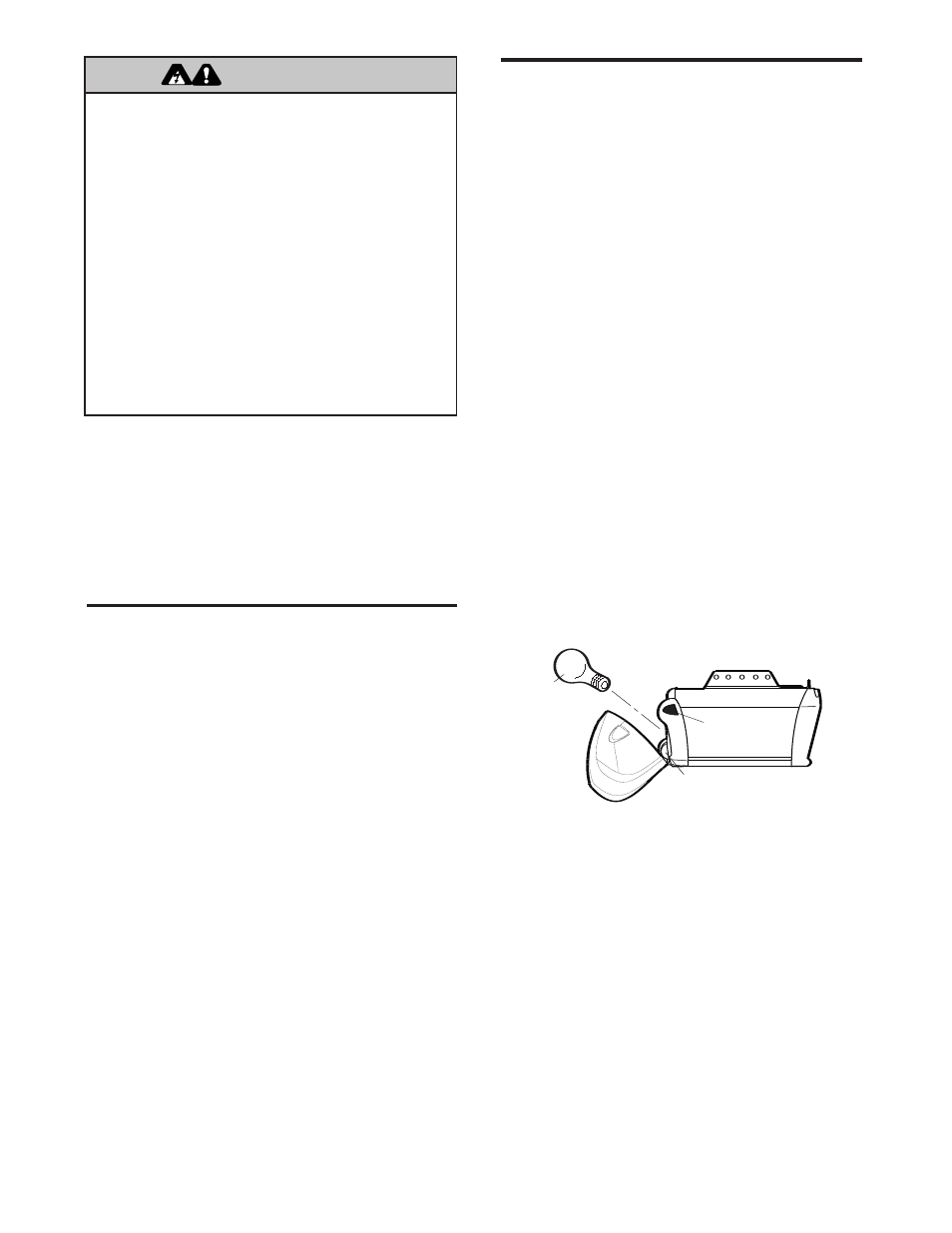

INSTALLATION STEP 7

Install the Light

• Press the release tabs on both sides of lens.

Gently rotate lens back and downward until the
lens hinge is in the fully open position. Do not
remove the lens. Install a 40 watt maximum (socket
size E27), light globe in the socket as shown.

• The light will turn on and remain lit for 2-1/2

minutes when power is connected. After 2-1/2
minutes it will turn off.

• Reverse the procedure to close the lens.

Replace burned out globes with rough service
light globes.

Release tabs

of lens

40W Max

Light Globe

Socket
