39
FREEDOM DESIGNS, INC.
Gizmo Tilt

SERIAL NUMBER AND MODEL MUST BE PROVIDED

ONLY AVAILABLE ON FREEDOM DESIGNS CHAIRS

NEW MAG WHEELS MUST BE ORDER.

SEE PAGE 50 FOR WHEEL CHOICES.
8
6 12
COMPLETE KIT INCLUDES:

FRAME MOUNT LEVER
ASSEMBLY (Item 2)

A C T U A T O R A S S E M B L Y
with CABLES (Item 3)
Wheels sold separately
13 14 7 11 5 14
9
8
10

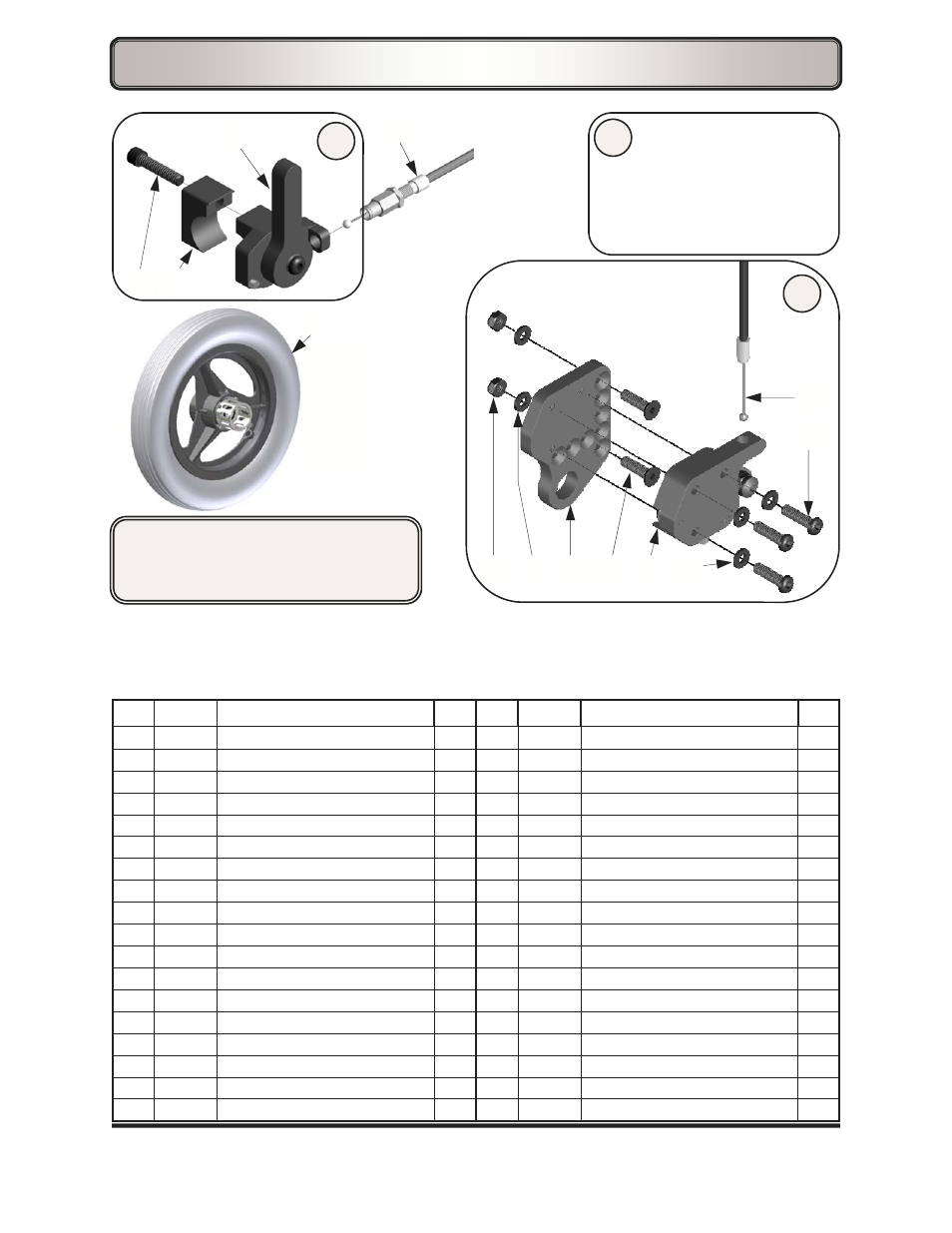

HUB LOCK— From Serial No. GZ-12529
No. PART # DESCRIPTION QTY No. PART # DESCRIPTION QTY
1 13091 Hub Lock Assy Complete—Sht Cables 1 pr. 5 13080-R Actuator Assembly—Right 1 ea.
13093 Hub Lock Assy Complete—Lg Cables 1 pr. 13080-L Actuator Assembly—Left 1 ea.
13091-R Hub Lock Assy Complete—Sht Cable, Rt 1 ea. 13080 Hub Lock Actuator Assemblies 1 pr.
13091-L Hub Lock Assy Complete—Sht Cable, Lt 1 ea. 6 13082-1 Inner Clamp 1 ea.
13093-R Hub Lock Assy Complete—Lg Cable, Rt 1 ea. 7 4004-R Adapter Plate—Right 1 ea.
13093-L Hub Lock Assy Complete—Lg Cable, Rt 1 ea. 4004-L Adapter Plate—Left 1 ea.
2 13087-R Lever/Clamp Assembly—Right 1 ea. 4004 Adapter Plates 1 pr.
13087-L Lever/Clamp Assembly—Right 1 ea. 8 13084-1 Cable—Short 1 ea.
13087 Lever/Clamp Assemblies 1 pr. 13084 Cables—Short 1 pr.
3 13088-R Hub Lock Actuator—Rt, w/Sht Cable 1 ea. 13086-1 Cable—Long 1 ea.
13088-L Hub Lock Actuator—Lt, w/Sht Cable 1 ea. 13086 Cables—Long 1 pr.
13088 Hub Lock Actuators, w/Sht Cable 1 pr. 9 See Notes Wheel Assembly 1 ea.
13090-R Hub Lock Actuator—Rt, w/Lg Cable 1 ea. 10 9033 Screw—1/4 x 1” Button Head 1 ea.
13090-L Hub Lock Actuator—Lt, w/Lg Cable 1 ea. 11 9047 Screw—1/4 x 1” Flat Head 1 ea.
13090 Hub Lock Actuators, w/Lg Cable 1 pr. 12 9061 Screw—1/4 x 1” Socket Head 1 ea.
4 13081-R Lever—Right, w/o Cable 1 ea. 13 9073 Locknut—1/4” Nylon Thin 1 ea.
13081-L Lever—Left, w/o Cable 1 ea. 14 9074 Washer—1/4” Flat 1 ea.
13081 Levers, w/o Cables 1 pr.
2
3
4 1
