Gizmo Tilt

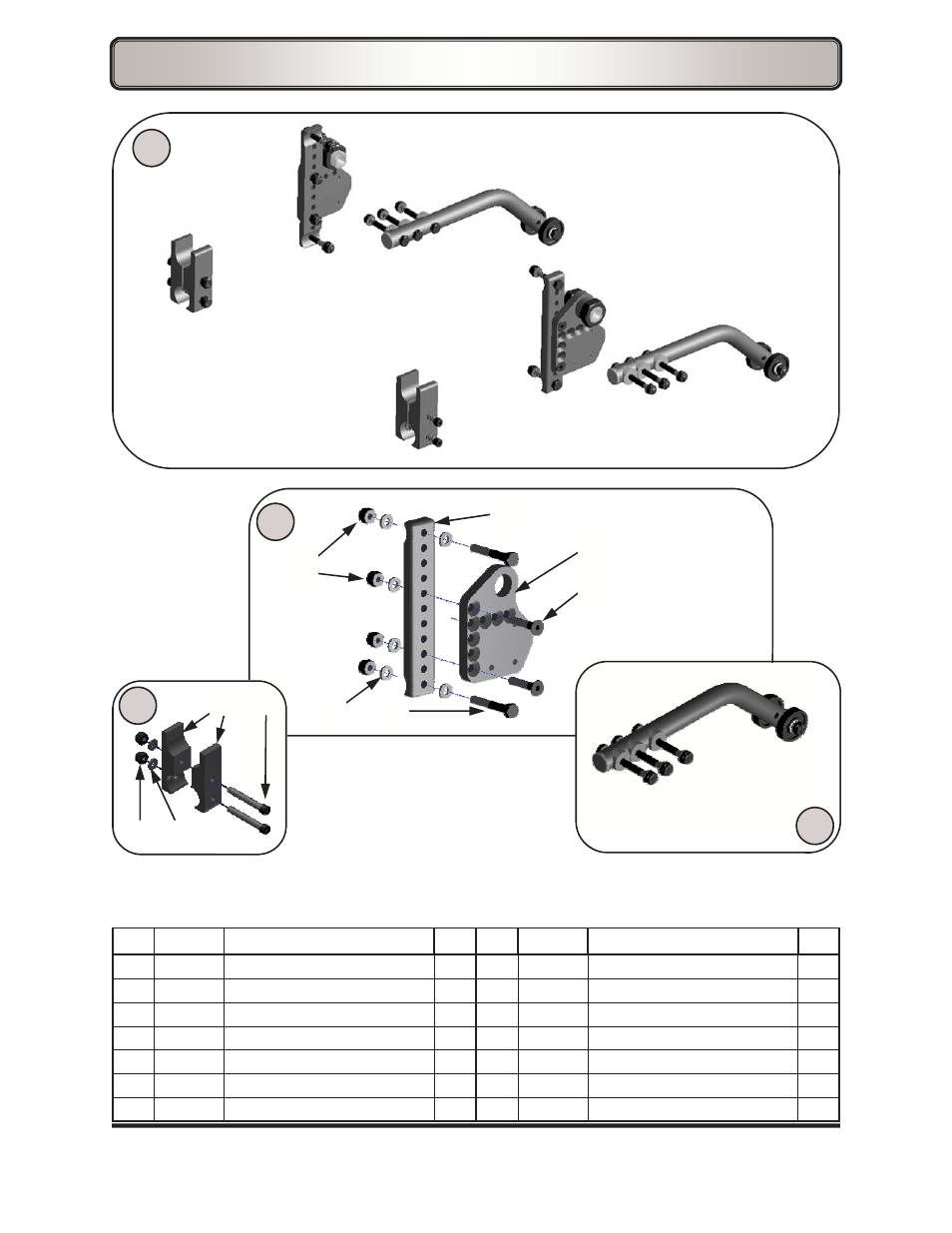

REVERSE CONFIGURATION—Rear Wheel to Front Wheel
No. PART # DESCRIPTION QTY No. PART # DESCRIPTION QTY
1 11110 Reverse Configuration Kit—Std 1 kit 7 4004-R Axle Adapter Plate—Hub Lock—Rt. 1 ea.
11110-HL Reverse Config. Kit—Hub Lock 1 kit 4004-L Axle Adapter Plate—Hub Lock—Lt. 1 ea.
2 21011 Caster Receiver Clamp Assemblies 1 pr. 8 9022 Screw—1/4 x 1 3/4” Hex Head 1 ea.
3 21010 Axle Plate Assemblies 1 pr. 9 9048 Screw—1/4 x 1 1/4” Flat Head 1 ea.
4 10071 Anti-tip Fixed Assemblies 1 pr. 10 9065 Screw—1/4 x 2” Socket Head 1 ea.
5 21012 Caster Receiver Clamps 1 pr. 11 9072 Locknut—1/4” Nylon 1 ea.
6 4005 Axle Plates 1 pr. 12 9074 Washer—1/4” Flat 1 ea.
11 12
6
8 12
7
5
11
10
1
2
3
4
Standard version shown,
Hub lock version available
9
See Anti-tip section for
individual parts.
