30
FREEDOM DESIGNS, INC.
Gizmo Tilt
11 4
9
6
10
8
9
9
7
10
8
9
11 5

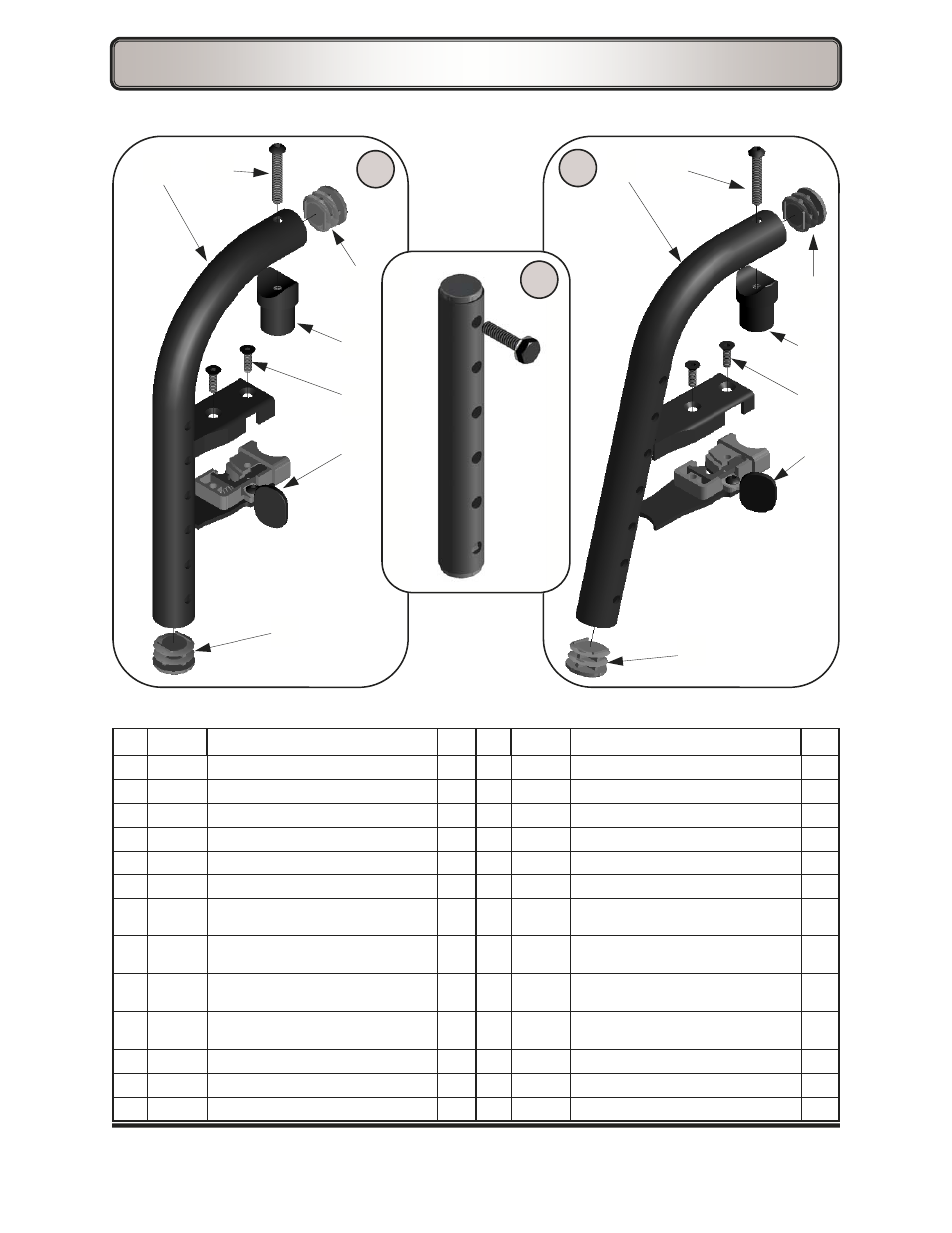

HANGERS—Latch Style (discontinued)
No. Part # Description Qty No. Part # Description Qty
1 14070-R Latch Style Hanger Assy—90°, Rt. 1 ea. 5 14073-R Latch Style Hanger Tube—75°, Rt. 1 ea.
14070-L Latch Style Hanger Assy—90°, Lt. 1 ea. 14073-L Latch Style Hanger Tube—75°, Rt. 1 ea.
14070 Latch Style Hanger Assemblies 1 pr. 14073 Latch Style Hanger Tubes —75° 1 pr.
2 14071-R Hanger Assembly—75°, Rt. 1 ea. 6 14074-R Latching Assembly—90° - Rt. 1 ea.
14071-L Hanger Assembly—75°, Lt. 1 ea. 14074-L Latching Assembly—90° - Lt. 1 ea.
14071 Hanger Assemblies—75° 1 pr. 14074 Latching Assemblies—90° 1 pr.
3 13026-1 Hanger Extension Assembly—
0.5—4.5” Long
1 ea. 7 14075-R Latching Assembly—75°, Rt. 1 ea.
13026-2 Hanger Extension Assemblies—
0.5—4.5” Long
1 pr. 14075-L Latching Assembly—75°, Rt. 1 ea.
13027-1 Hanger Extension Assembly—
2.5—6.5” Long
1 ea. 14075 Latching Assemblies—75° 1 pr.
13027-2 Hanger Extension Assemblies—
2.5—6.5” Long
1 pr. 8 3012 Pivot Fitting—Latch Style 1 ea.
4 14072-R Latch Style Hanger Tube—90°, Rt 1 ea. 9 9000 1” Tube Plug 1 ea.
14072-L Latch Style Hanger Tube—90°, Lt 1 ea. 10 9041 Screw—10-32 x 5/8” Flat Head 1 ea.
14072 Latch Style Hanger Tubes—90° 1 pr. 11 9035 Screw—1/420 x 1 1/2” Button Head 1 ea.
1 2
These hangers require footplate assemblies shown on pages 20 and 21.
3
Through serial number GZ-18649
