FASS T UIM 095G User Manual
Page 8

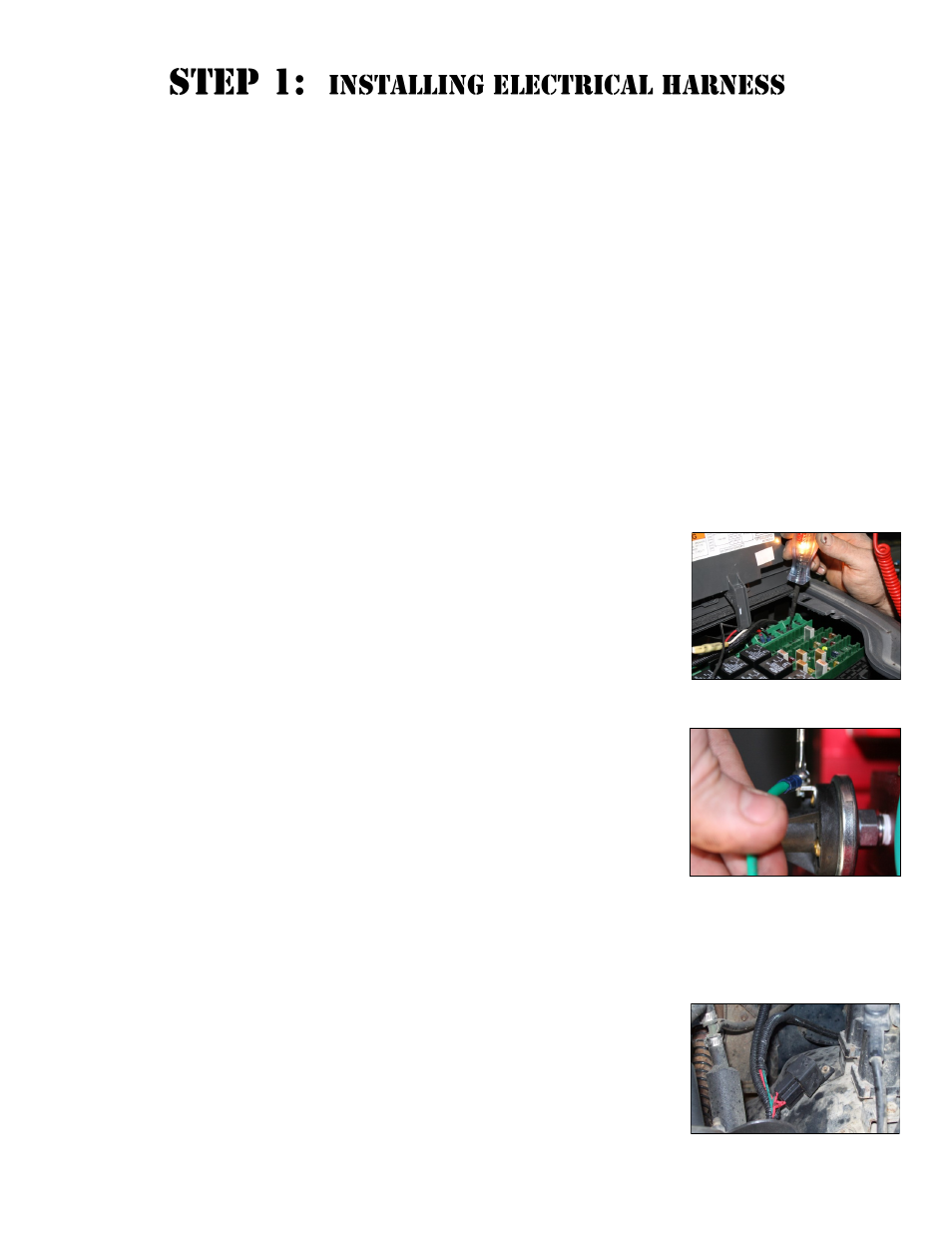

The installation of the electrical harness is done first, allowing power to be applied to the pump for
lubrication purposes.
A.
Select best location in firewall for passage of wiring harness from cab to engine compartment.
B.
Find or drill a 7/8” hole in firewall. Install RS-2684 grommet for ease of installation and protection of
wire harness.
C.
Route red wire/ loom of the wire harness through the grommet in the firewall to the ignition or fuse panel.
The use of corrosion preventative spray and dielectric grease is recommended where electrical con-
nection are made..
D.
Using a spade terminal, connect the “Red” lead to the “ON” terminal of the igni-
tion switch or a terminal on the circuit breaker board that is “hot” when the key is
on.
G.
Properly secure all electrical leads and harness.
F.
Secure fuse out of the weather.
E.
Install the Hobbs Oil Pressure Switch in the oil gallery. Using a spade ter-
minal, connect the green wire of the WH-1001 wire harness to the terminal
on the oil pressure switch.
