FASS T F16 150G User Manual
Page 9

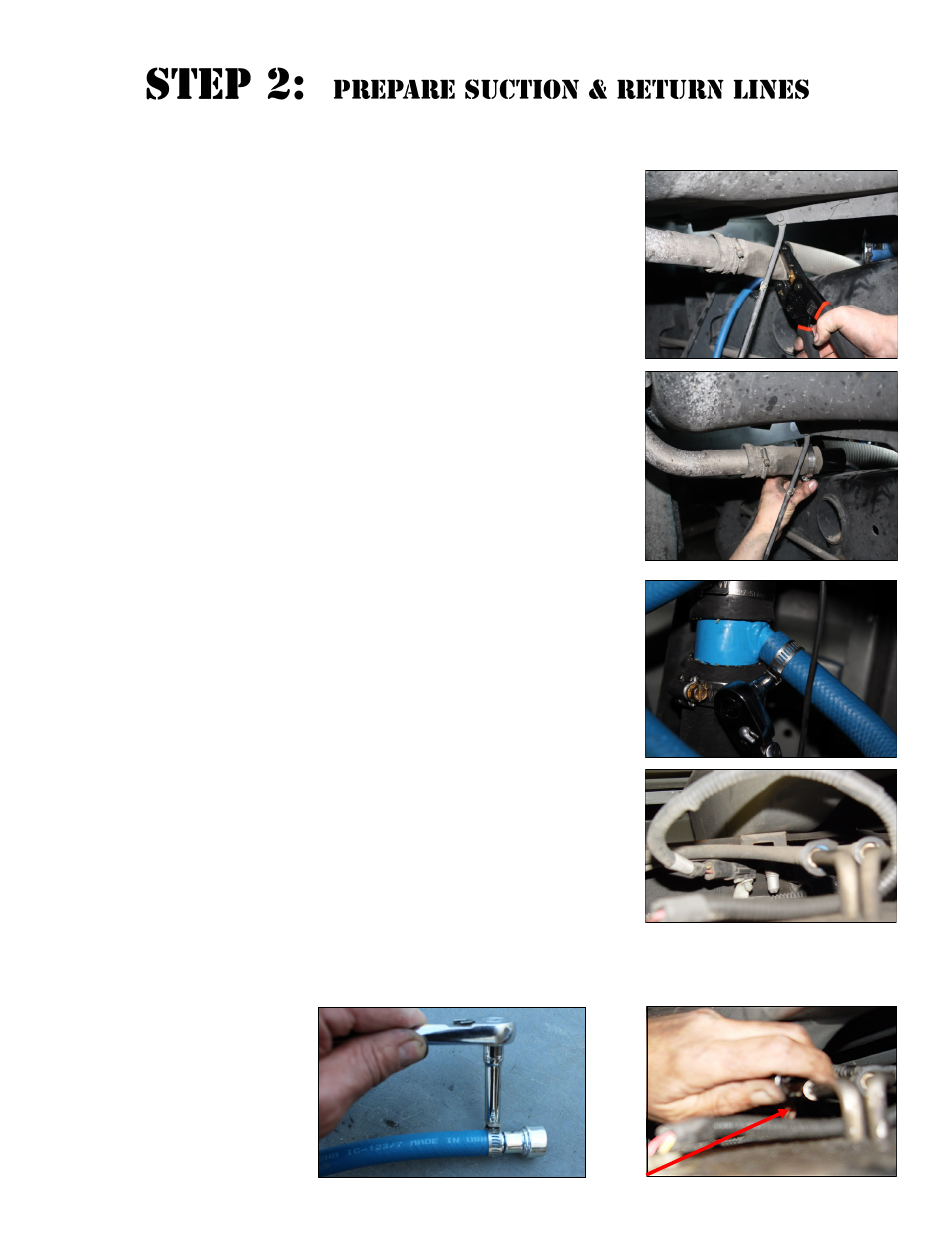

C.
Using a HC-1001 connect FL-1002 to the junction of RM-1004.
A.
Mark location on the filler tube that allows you to install RM-1004.
Cut tube. Making sure that there is enough tube on each side of the
cut to insert the RM-1004 and hose clamps.
B.
Position RM-1004 with the junction pipe aiming to outside of bed.
Connect rubber hose and RM-1004 using both HC-1004’s but do not
tighten.
D.
Disconnect factory suction line by pinching in on the blue tabs. Thor-
oughly clean this suction port .
E.
Insert QD-1002 and clamp into opposite end of fuel line. Oil O-rings inside QD-1002 and slide onto
factory suction port until you hear a click. Loop fuel line over the frame. Do not cut at this time.
Some of the photo’s are of a different application, procedures are the same.
