FASS T F16 150G - Manual (Page 8)

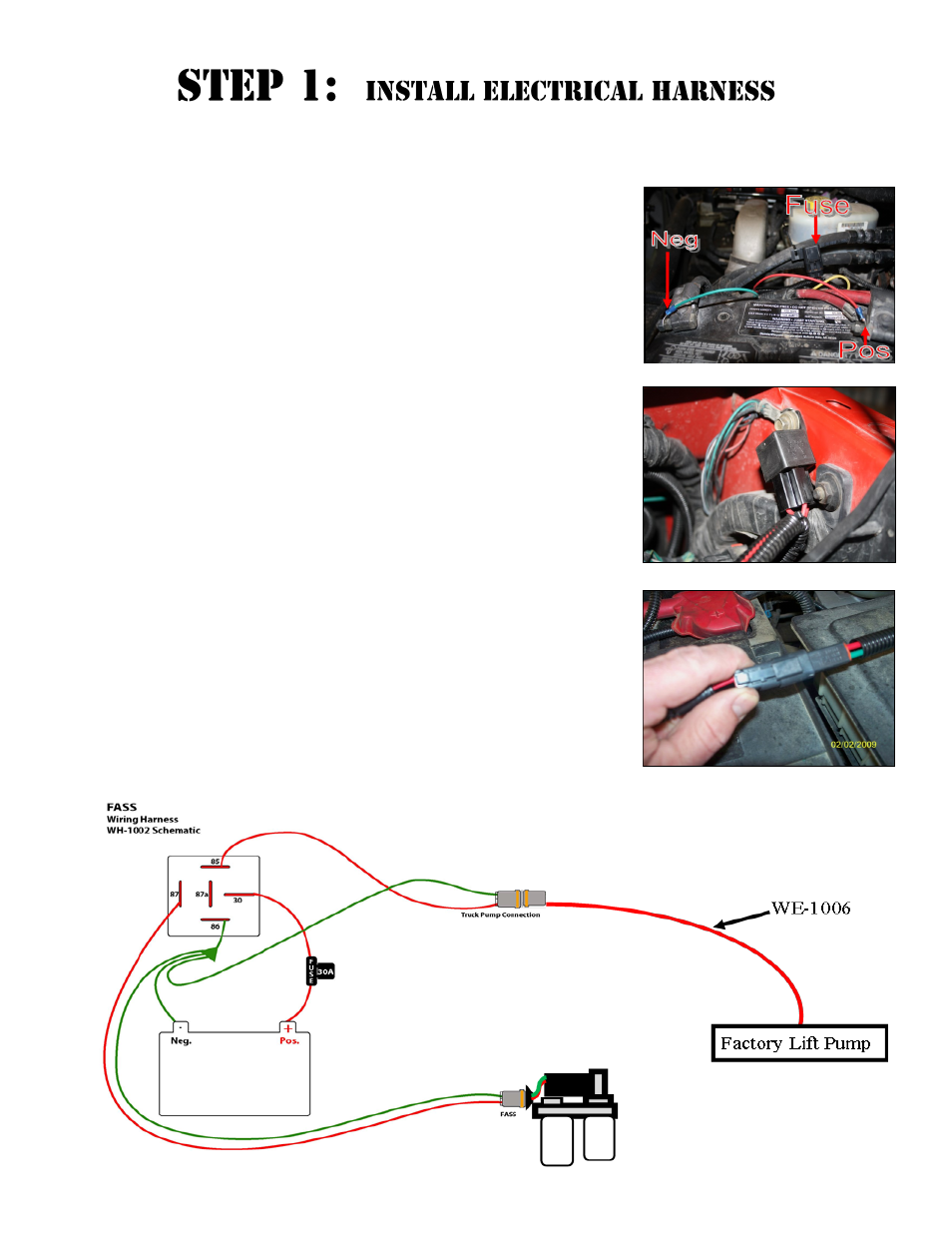

B. Secure Relay in an upright position, as shown, to prevent moisture
from entering. Di-electric grease may be applied to prevent corrosion.
A. Using ring terminals, attach red wire of the WH-1002 to the positive
battery terminal. Attach green wire to a clean ground, preferably the
negative battery terminal. Secure fuse block in a location protected
from outside elements. The use of a corrosion preventative on elec-
trical connections is recommended.
C. Connect WE-1006 to the female lead of the WH-1002 coming off
the relay. Route the WH-1002 and WE-1006 along frame rail to the
factory lift pump. Completion of this step will be addressed in the
mounting step.
The installation of the electrical harness is done first, allowing power to be applied to the pump for
lubrication purposes later in the installation.
