FASS T D02 150G - Manual (Page 10)

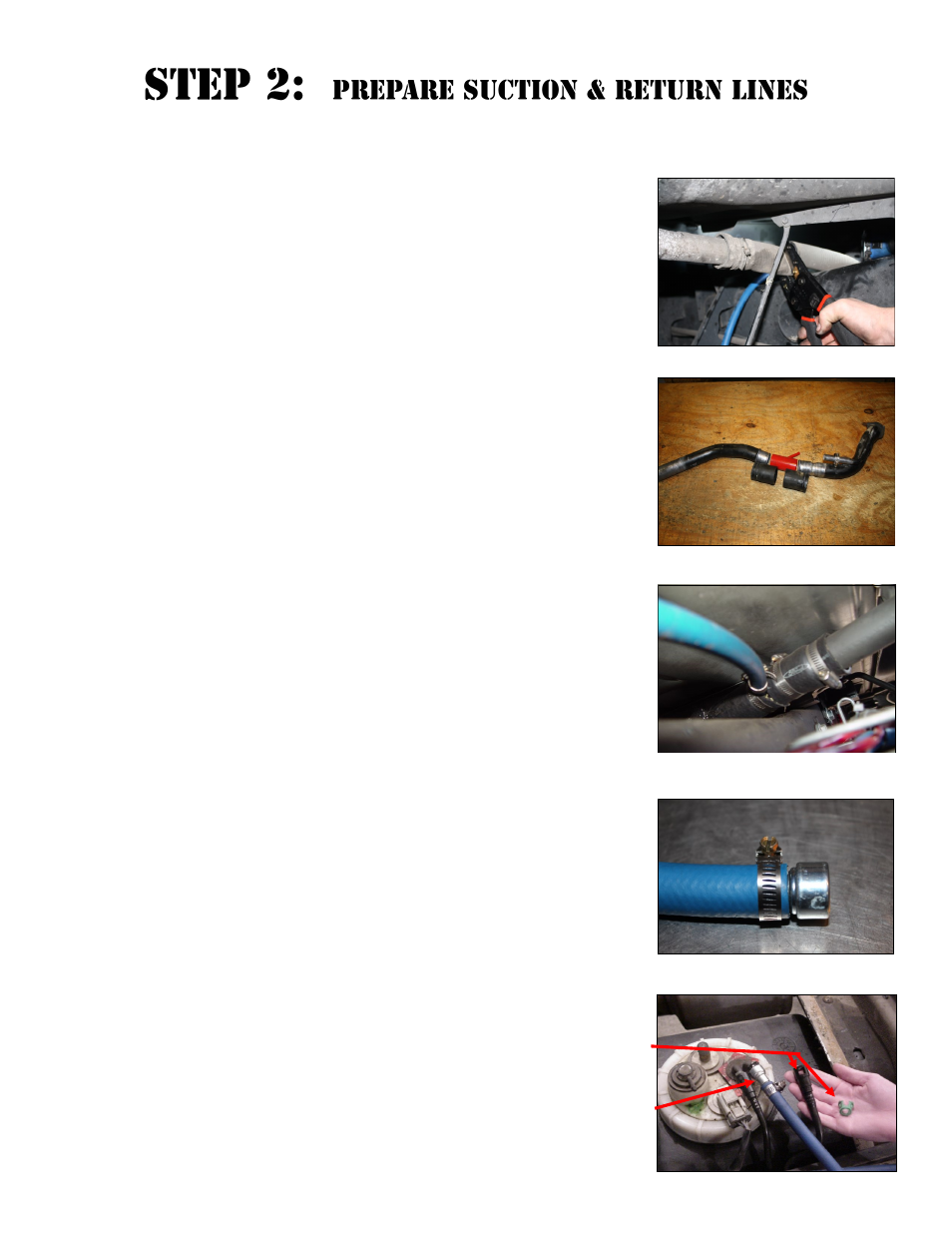

A. Prepare FASS return line by cutting rubber junction connecting the
two halves of the filler neck. Loosen the factory clamps at the tank.
Push the lower half filler neck into the tank enough to insert RM-1003.
As seen in the following photo.
B. Filler neck removed for clarity. Position RM-1003 with the 3/8” junc-
tion pipe aiming to outside of bed. Clamp rubber and RM-1003 using
both HC-1004’s and factory clamps.
D. Using a hose clamp install fuel line over the knurled flare on the QD-
1001. Oil O-rings inside Quick Disconnect.
C. Using a HC-1001 connect FL-1002 Fuel Line to the junction of RM-
1003.
D. Disconnect factory suction line clip by pressing in on the two tabs lo-
cated on either side in the connection fitting. Once removed, clean the
suction tube and connect the QD-1001 addressed in the previous step.
Loop fuel line over frame, will be addressed in step Installing Fuel
Line. Plug or seal factory line or remove. Bed has been removed for
photo clarity.
Some of the photo’s are of a different application, procedures are the same.
Helpful Hint: If more space is required to access the top of the fuel
tank, loosen the strap nuts to the end of the stud. This will gain you
about 3” more working room.
