EcoPure EPWUFF - Manual (Page 6)

6
Installation Instructions

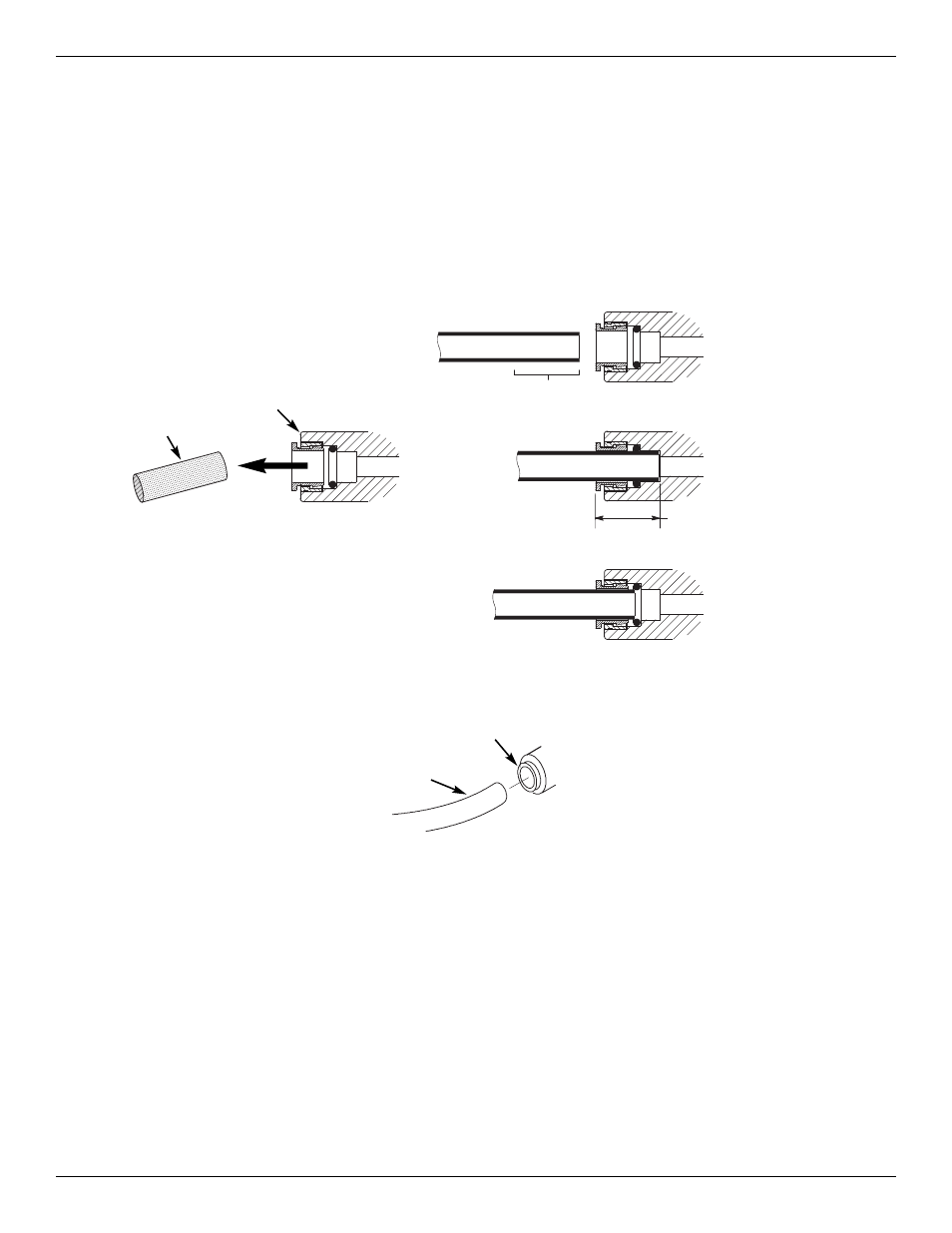

To Disconnect Tubing:
1. Push the collet inward and hold with a finger while pulling the tubing out.
tubing
collet (depress to remove tubing)
end of tubing round and smooth,
with no cuts, nicks or flat spots
correct full 3/4" engagement
Tubing correctly cut and connected
Incorrect partial engagement
Remove and discard foam plugs
foam plug
push in fitting
continued from the previous page
Connect Tubing:
1. Use a tube cutter to cut the end of tubing square.
2. Inspect the end (about 1") of the tubing to be sure there are no nicks, scratches or other rough spots.
If needed cut the tubing again.
3. Push tubing through the collet and all the way into fitting. Full engagement is 3/4" length of tube into
the fitting.
FIG. 4
FIG. 5
Step D - Turn On Water, Check for Leaks and Rinse Carbon Fines
1. Open the shutoff valve(s) that you closed at the beginning of this installation.
2. Open the filtered water faucet to purge air from the system. When the water runs smooth, with no
bubbles or spurting, close faucet and check installation for leaks.
3. Open the filtered water faucet and let water run for 10 minutes to rinse out carbon fines.
Step C - Install the Filter Cartridge
1. Remove the small plastic shipping cap from the open end of the filter cartridge.
2. Install the cartridge onto the water filter head assembly, as shown in Figure 6. Turn cartridge to the
right to tighten.
