Parts of the System
Materials and Tools Needed
Typical Undersink Installation
• filter system assembly
• water supply fitting
• filtered water faucet for sink or countertop mounting
• 3/8" tube bends
• 3/8" tubing to make all needed connections
NOTE: Gather the required tools before starting installation. Read and follow
the instructions provided with any tools listed here.
• slotted and Phillips screwdrivers
• pliers and adjustable jaw wrench
• tubing cutter
• electric drill and 1-1/4" drill bit if mounting hole is needed for the faucet
IMPORTANT: To avoid damaging the sink, consult a qualified plumber or
installer for drilling procedures in porcelain or stainless steel.

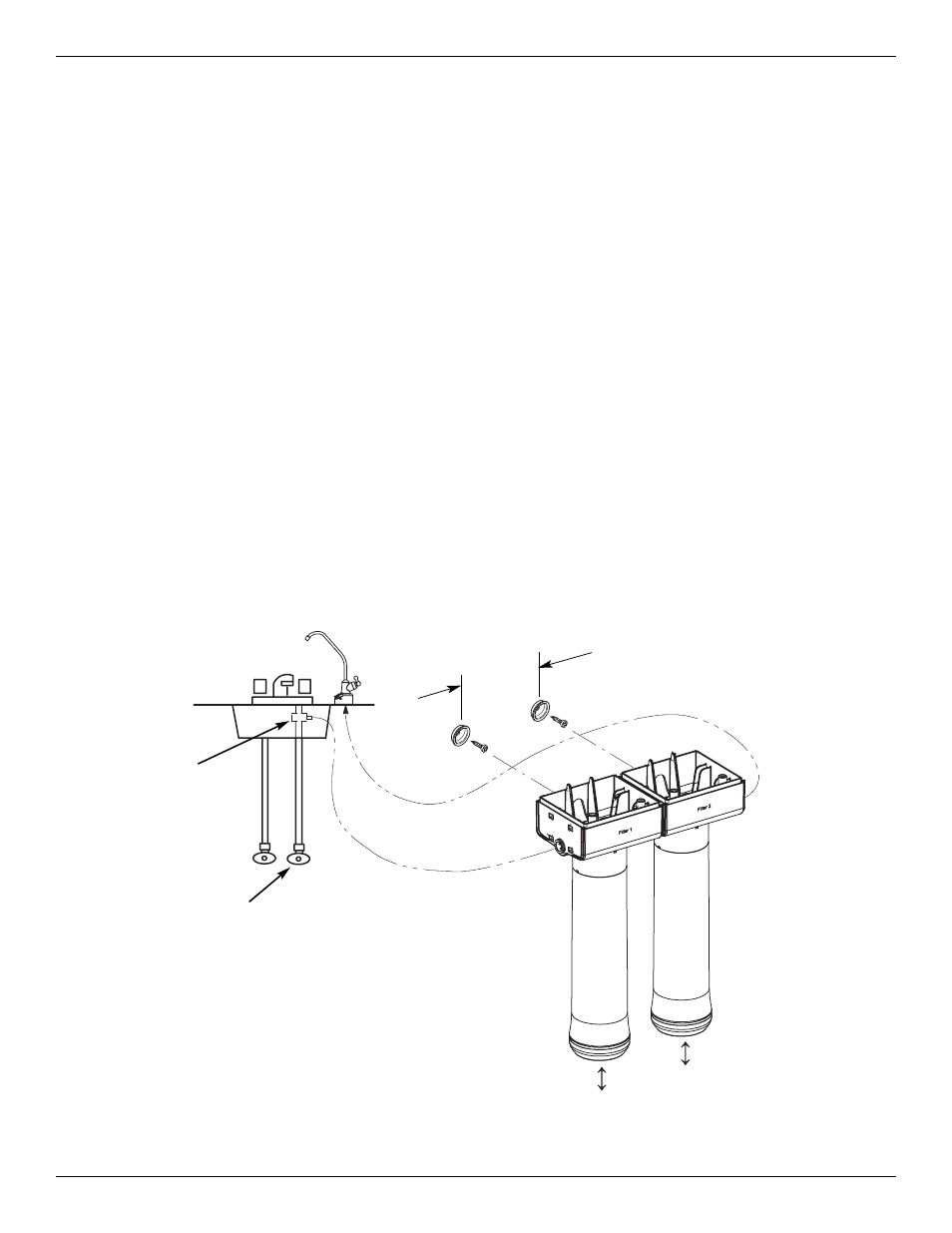

Locate the water filter housing on the cold water supply pipe, under the kitchen and/or bathroom sink, to
filter the cold drinking water. Refer to the following drawing.
shutoff valve
filtered water
faucet
filter 2
filter 1
Blue
WATER
OUT
Yellow
WATER
IN
supply fitting
SINK
NOTE: If tubing needs to make a sharp
bend, use included tube benders to
prevent kinking.
NOTE: Be sure to allow a minimum space of 1-1/2" under the system
for removing the filter cartridges, in order to change the cartridges.
Fig. 1
4-1/4”
HOT
COLD
