Dogtra ARC User Manual

Page 12

12. How to use the test lamp

7RDFWLYDWHWKHUHFHLYHUFROODUSODFHWKHUHGGRWRQWKH

EDFNRIWKHWUDQVPLWWHUWRWKHUHGGRWRQWKHUHFHLYHU
collar. Hold the two red dots together for a moment

XQWLOWKH/('OLJKWRQWKHUHFHLYHUFROODUFRPHVRQ7KH
indicator light will come on for a moment then blink once
every 4 seconds, showing that the collar is ready to use.
(If the indicator light is red, or if there is only 1 bar
showing on the battery icon on the LCD transmitter
screen, the unit needs to be charged.)

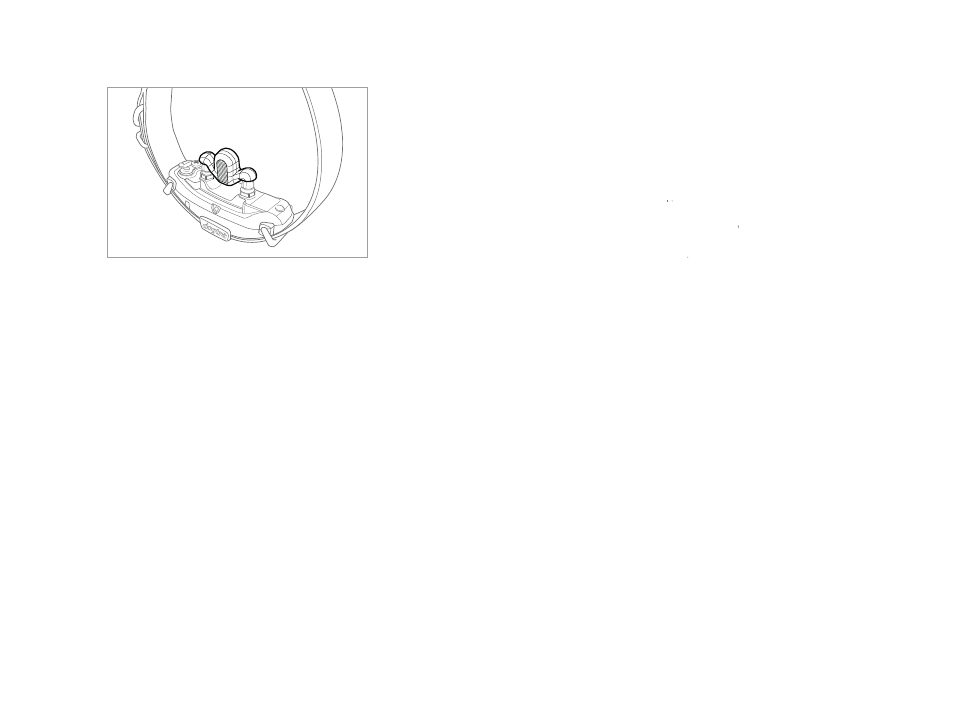

2. Place the test lamp, included in the package contents, on

the contact points as shown in the diagram.

3. Turn the transmitter on by pressing the blue button on the

right side of the transmitter until the LCD screen
illuminates. The LCD screen shows the amount of battery
life remaining and the LED blinks once every 4 seconds.

:DWFKWKHWHVWODPSDV\RXSXVKWKH³1LFN´EXWWRQRQWKH

WUDQVPLWWHU,WVKRXOGOLJKWIRUMXVWDPRPHQW7KHKLJKHU
the intensity, the brighter the test lamp will be.

:DWFKWKHWHVWODPSDV\RXSXVKWKH³&RQVWDQW´EXWWRQ

on the transmitter. It should light for as long as the button

LVSUHVVHG+RZHYHUDVDVDIHW\IHDWXUHWKHUHFHLYHU
collar will automatically stop stimulation if the constant
button is depressed for 12 seconds or longer.

6. Turn the Rheostat Intensity Dial on the transmitter

clockwise and then counterclockwise. The test lamp
should glow brighter with higher levels of stimulation and
dimmer with lower levels. When you change the intensity
dial, the number on the LCD screen will change as well.

3UHVVLQJWKH³3DJHU´EXWWRQRQWKHIURQWRIWKHWUDQVPLWWHU

causes the collar to vibrate for up to 12 seconds. The
collar will reactivate when you push the button again.

NOTE : The test lamp may not be visible if the intensity
level is set below level ten.
