ASSEMBLY & INSTALLATION
DR
®
SNOW THROWER Safety, Operation & Maintenance Instructions 11

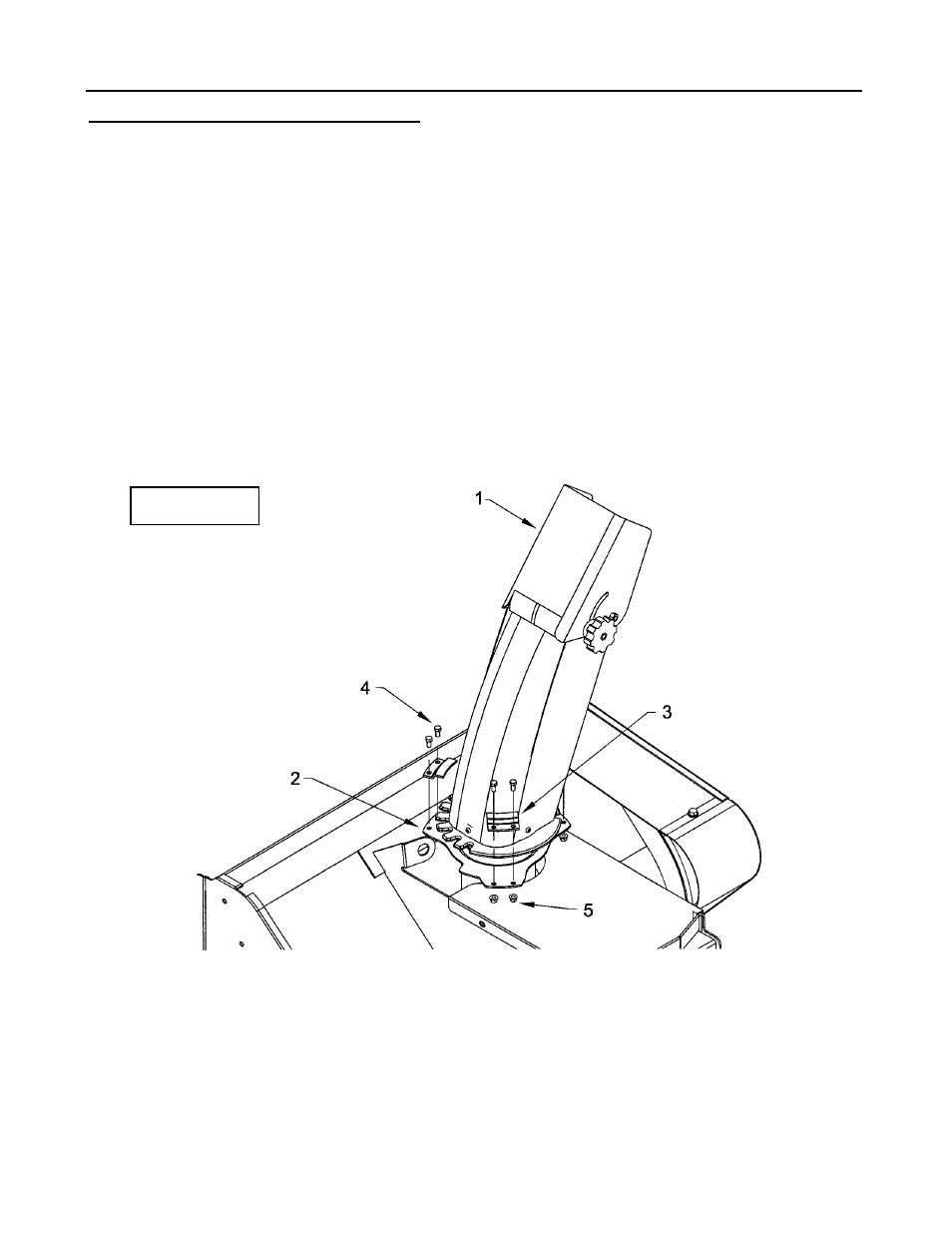

Step 2: Chute Installation (Figure 2)
For assembly, place the DR
®
SNOW
THROWER on a flat and level surface.
1. Place the chute (item 1) on the discharge
hole (item 2) around the DR
®
SNOW
THROWER.
2. Install the three retaining plates (item 3)
using the six 1/4" x 1/2" bolts and flange
nuts (items 4-5), tighten securely. Verify that
the chute turns freely on the collar.
Figure 2
