ASSEMBLY & INSTALLATION
10 DR
®
SNOW THROWER Safety, Operation & Maintenance Instructions
Step 1: Preparation (Figure 1)
After opening the crate and removing all the
cardboard, remove the box containing the chute
and the instructions (item 2).
1. Remove the two screws (item 4) that retain
the housing (item 1) on the pallet (item 3).
2. Verify that you have all components on the
following list:
If anything is missing, please call one of our
Customer Service Representatives TOLL-FREE
1(800)DR-OWNER(376-9637).
Crate
Qty Item
1 DR
®
SNOW THROWER assembly
1 Chute assembly
1 Rotation handle
1 Worm shaft
1 Bag
Bag
1 Handle support
3 Retaining plates
1 U bolt 1/4" NC x 1 1/8" x 2", PTD
2 Plastic bushings
6 Hex. bolts 1/4" NC x 1/2", PTD
6 Flange nuts 1/4" NC, PTD
1 Flatwasher 41/64" I.D.
1 Hairpin 2mm x 41mm, PTD
1 Cotter pin 1/8" x 1 3/4", PTD
1 Operator's Manual
1 Packing list
1 Spare shear bolt

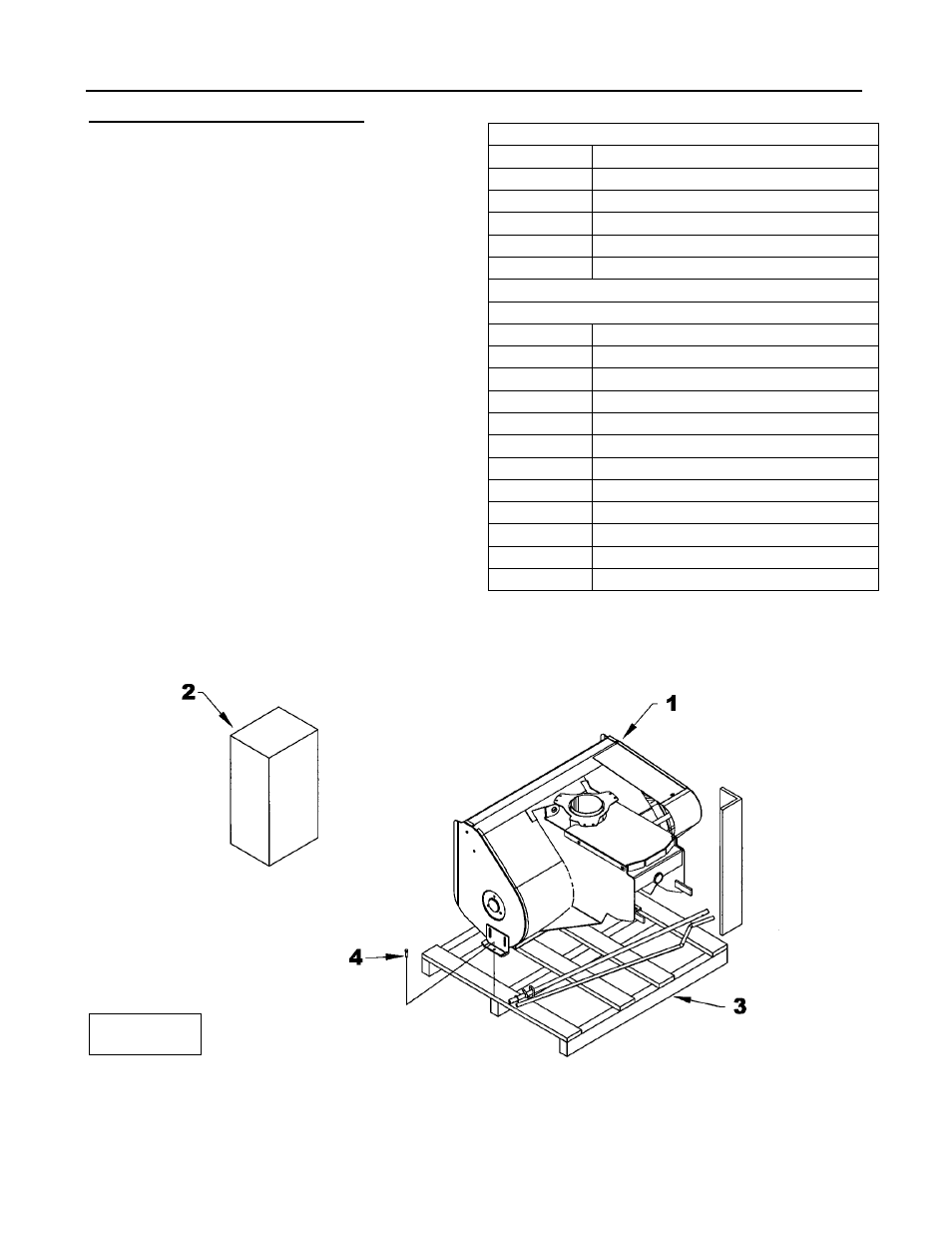

Figure 1
