OPERATOR PANEL, OVERVIEW
User’s Manual
Page 9

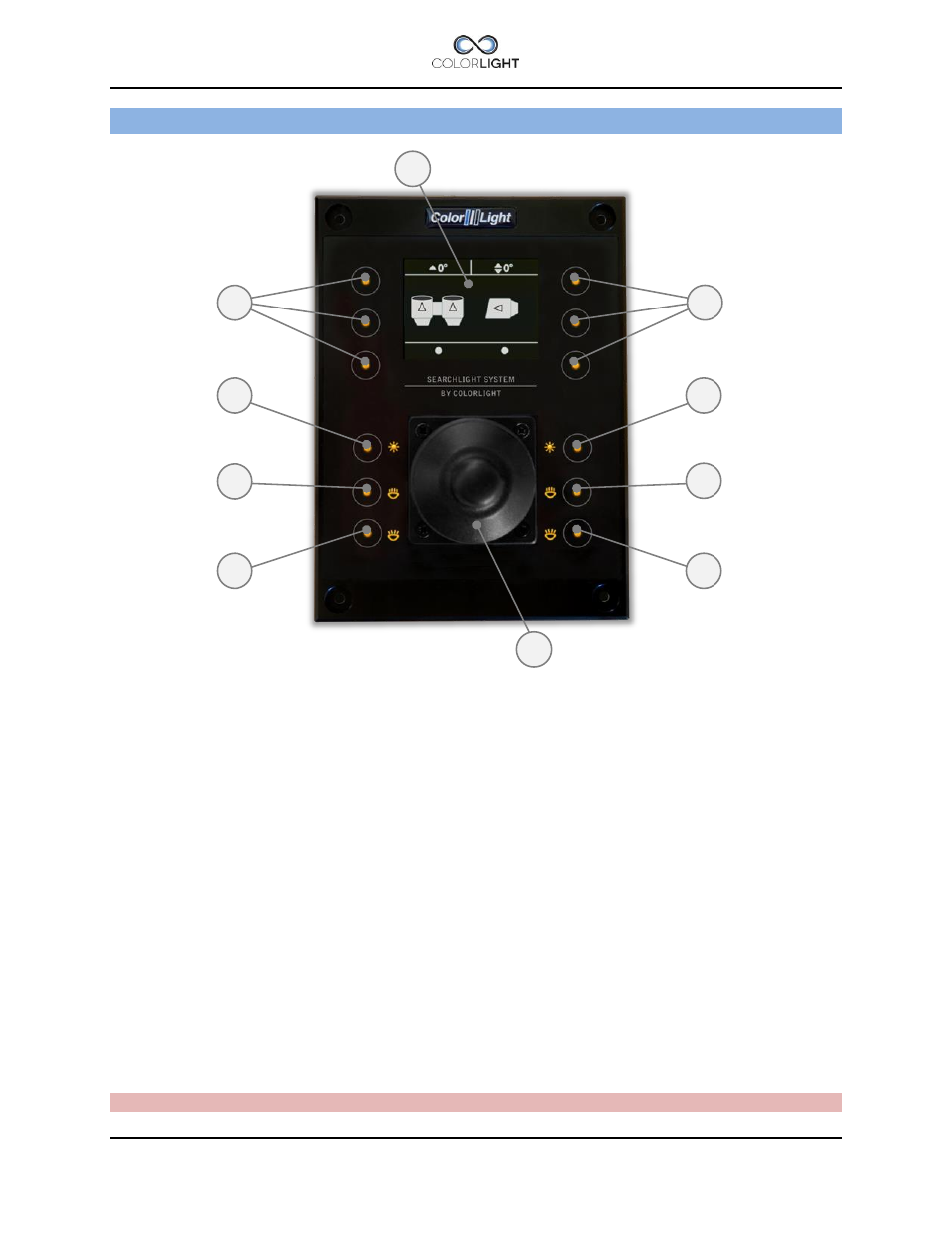

OPERATOR PANEL, OVERVIEW
3.
1. "Soft button": the function appears in the display window next to the button.
2. Left lamp on/off, standard for -12, -21 (optional for -11, -22 if
“Single lamp mode” = On *
1
).
3. Left focus (same function as No.4 *
2
), (move left to spot *
3
).
4. Left focus (same function as No.3 *
2
), (move left to flood *
3
).
5. Right lamp on/off, standard for -12, -21 (optional for -11, -22 if
“Single lamp mode” = On *
1
).
6. Right focus (same function as No.7 *
2
), (move right to spot *
3
).
7. Right focus (same function as No.6 *
2
), (move right to flood *
3
).
8. Joystick.
9. Display.
*
1
11.8.6.5 Single lamp mode (standard function available from ver. 0.5.3.11)
*
2
Continuous focus (standard), see
*
3
Absolute focus (optional for CL25) see
Note: Several sections of the manual refer to the above figures.
1
8
7
6
5
9
2
3
4
1
