CF 197 2 I&M011-10172 Rev A 5/11

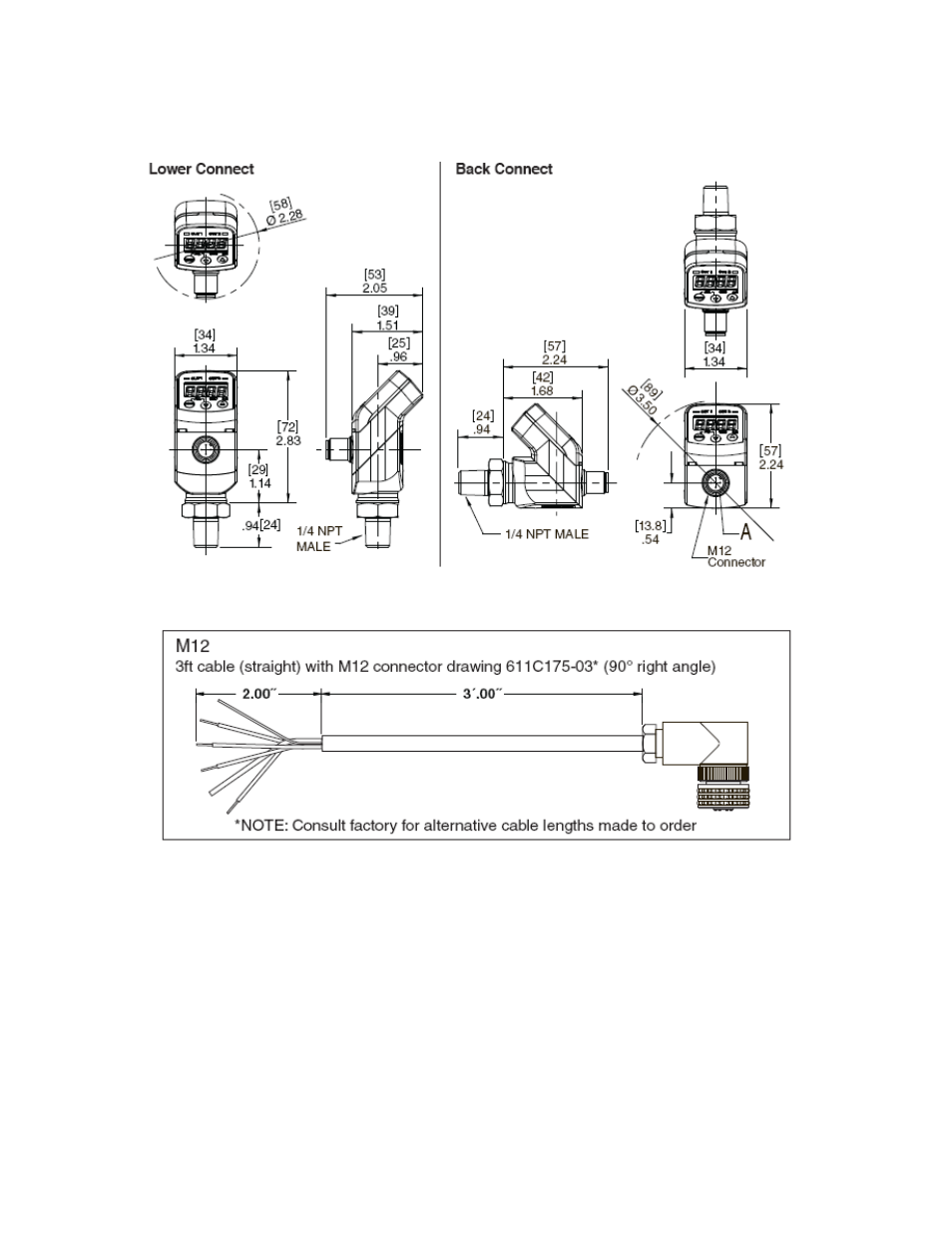

. PRODUCT DIMENSIONS
3. INSTALLATION
Install in a location where vibration and shock can be minimized and without direct sunlight on the
display and care should be taken to locate the product in compliance with IP65 (150 psi and below) or
IP67 (300 psi and above) environmental rating.
• Pressure Port Connections ¼ NPT male 1 ½ turns past hand tight.
