Installation Instructions Model: PAC-251
3
TOOLS REQUIRED FOR INSTALLATION
• 1/8" Hex Wrench (provided)
PARTS
Unpack carton, inspect and verify contents. Read installation
instructions completely. If any listed parts are missing,
immediately contact a Chief Customer Service representative
by calling 1-800-582-6480, or by visiting www.chiefmfg.com.
Item Description Qty
10 RACK, device Mounting 1
20 BRACKET, device Holding 4
30 BRACKET, device Mounting 4
40 BUTTON, Mounting 4
50 SCREW, Flat Head Cap, 10-24 x 1/2" (Black) 4
60 SCREW, Round Head Carriage Bolt, 10-24 x 5/8" 4
70 NUT, Nylock, 10-24 9
80 WRENCH, Hex, 1/8" (Provided) 1
90 FLAG, Latching 1
100 SCREW, Phillips Machine, 10-24 x 1/2" 1
110 WASHER, Flat 1

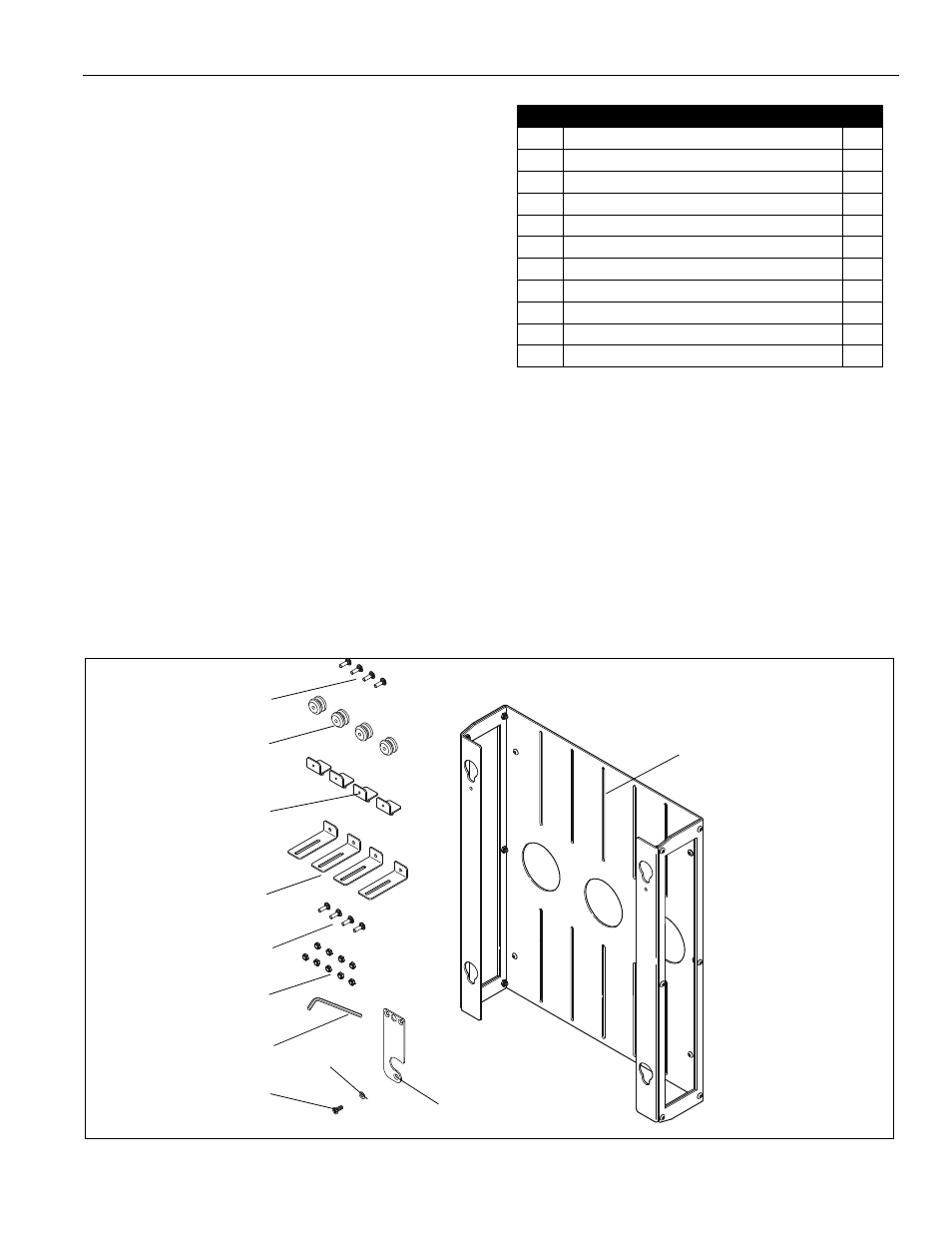

Figure 1: PARTS
10
20
30
40
50
60
70
80
100
110
90
