Connecting the Antenna Cable to the Radio Module in the Enclosure
1. Perform the antenna mounting steps in this document for the specific type of antenna.
2. Run the antenna cable to the Ethernet radio enclosure.
3. Disconnect the power to the Ethernet radio enclosure.
4. Remove the large knockout on the bottom of the
enclosure, and then route the antenna cable into the
enclosure.

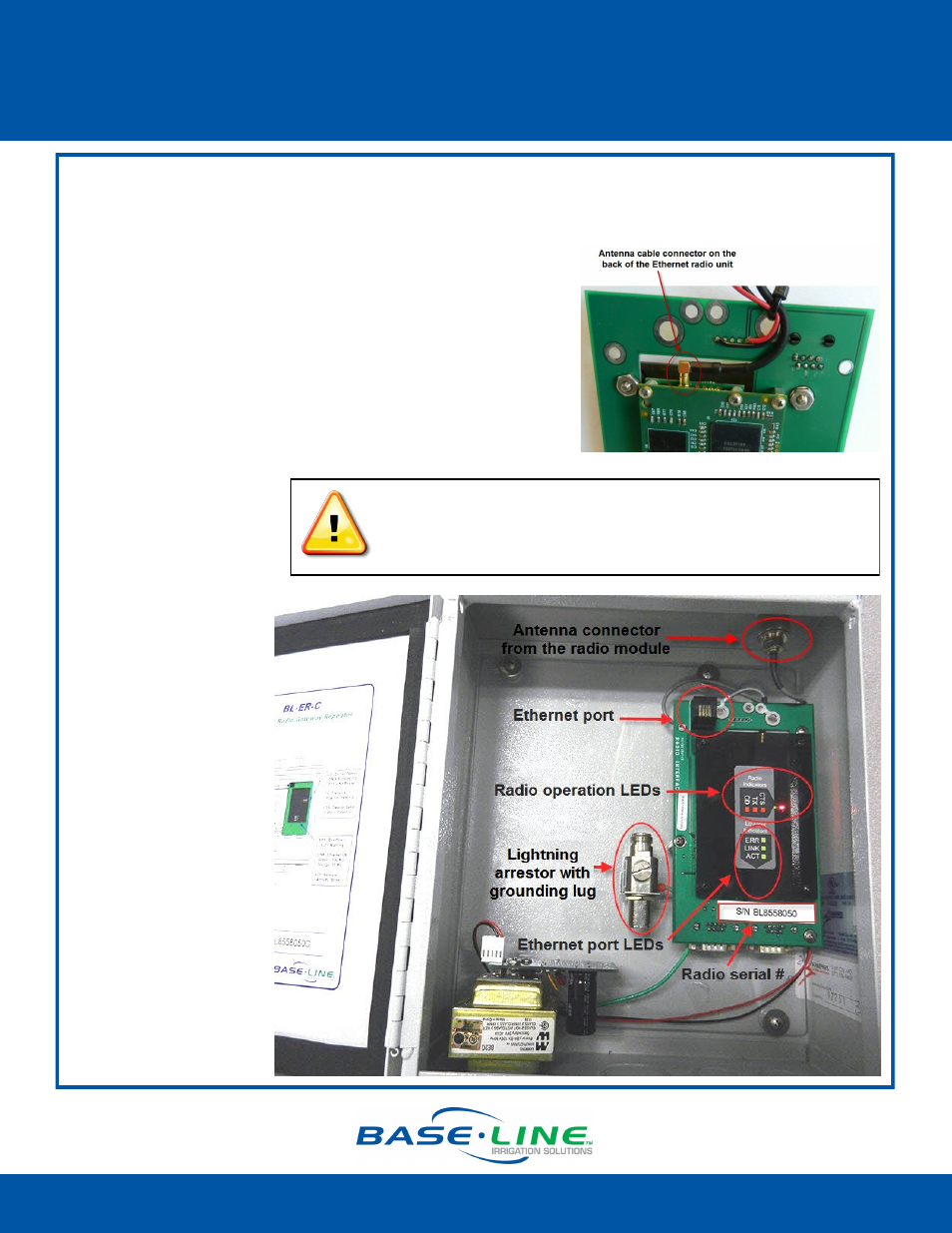

5. Inspect the antenna cable connection on the back of
the Ethernet radio unit to ensure that it is securely
connected.
Page 4
6. Attach the coax
cable connector
to the bottom of
the lightning
arrestor.
7. Attach the
antenna
connector from
the radio module
to the top of the
lightning arrestor.
8. Ground the
antenna
according to the
instructions in the
BL-CX-LA High
Gain Antenna
Lightning Arrestor
Installation Guide.
IMPORTANT! Make sure the antenna cable remains securely attached to
the connector on the Ethernet radio. If the radio is powered up with a
loose or disconnected antenna, damage may occur to the circuitry.
This damage is not covered by warranty.
