www.amico.com 8

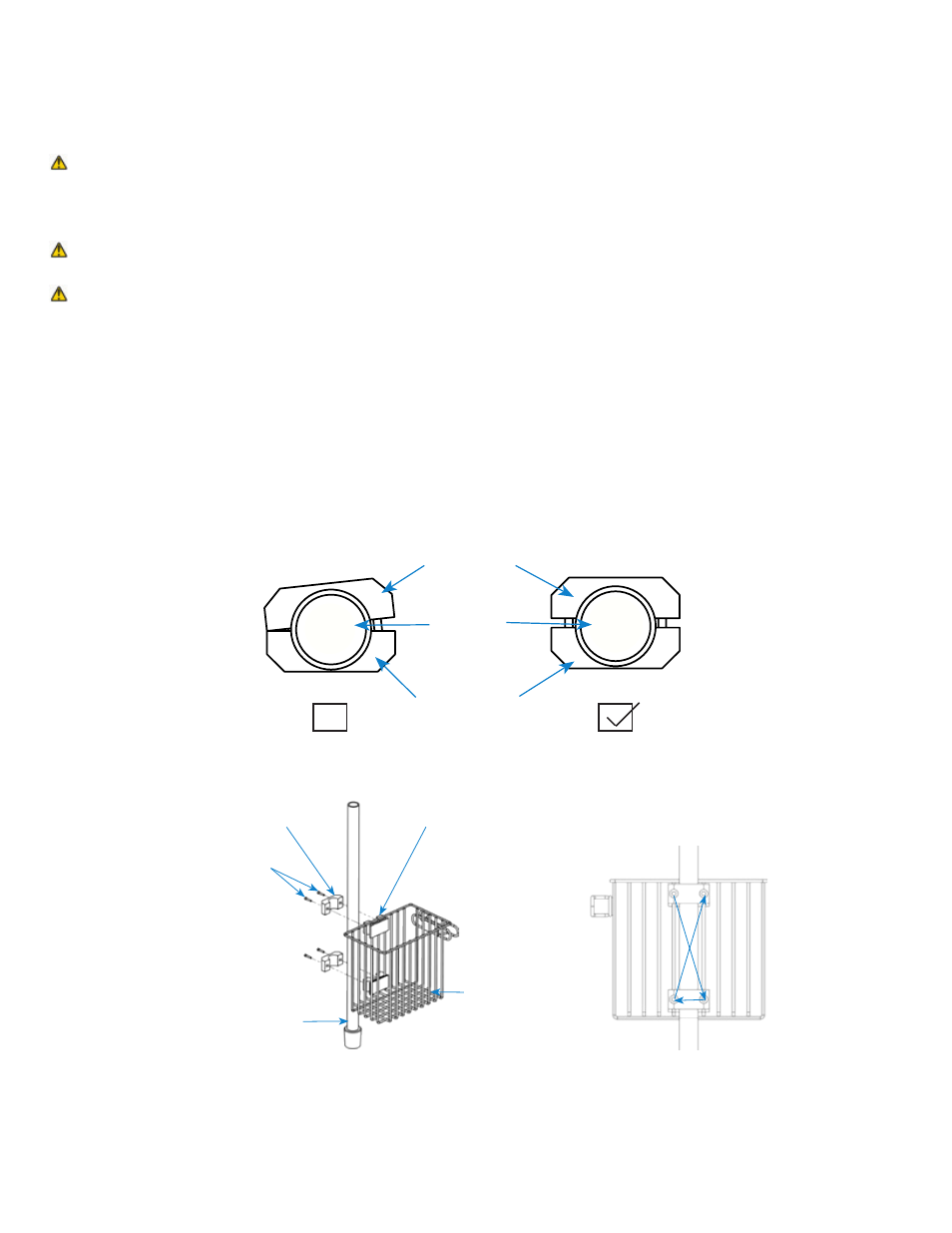

INCORRECT CORRECT
Clamp Device
Roll Stand
Post
Clamp Assembly
on Basket
Figure 4
Figure 5
Basket
Roll Stand Post
3/16’’ (47.6 mm)
HEX Bolt
Clamp Device Clamp Assembly
Double Clamp Basket Sample Tighten using Cross Pattern
Figure 6
WARNING: DO NOT tighten one screw all the way into the clamp assembly without tightening the other. Only
tighten the first screw after the second screw is at least half way into the clamp assembly or the clamp may be
damaged.
(Figure 4)
WARNING: DO NOT overtighten the screws as this may strip the thread.
WARNING: The basket is rated for up to 10 lbs (4.547 kg). Ensure the load that is placed in the basket does not
exceed this weight.
1. Remove the clamp devices from the basket assembly using the 3/16" (47.6 mm) HEX Key, and place the clamp
assembly at the desired height on the Roll Stand post.
2. Line the holes of the top clamp assembly on the basket with the holes on the clamp device. Partially secure
one of the two bolts BUT DO NOT TIGHTEN, then partially secure the second bolt. Once both bolts are started,
partially secure the bolts in the bottom clamp assembly in the same way. Once all four bolts are partially secured,
Tighten in a CROSS Pattern.
(Figure 5 and 6)
Basket Installation
