4. Adjustment/Operation
1. 3 Point Linkage
2. Adjustable Tine Clamps
3. Pro-Lift Tines
4. Parking Stands
5. Roll Cylinders
6. Rear Roll Unit

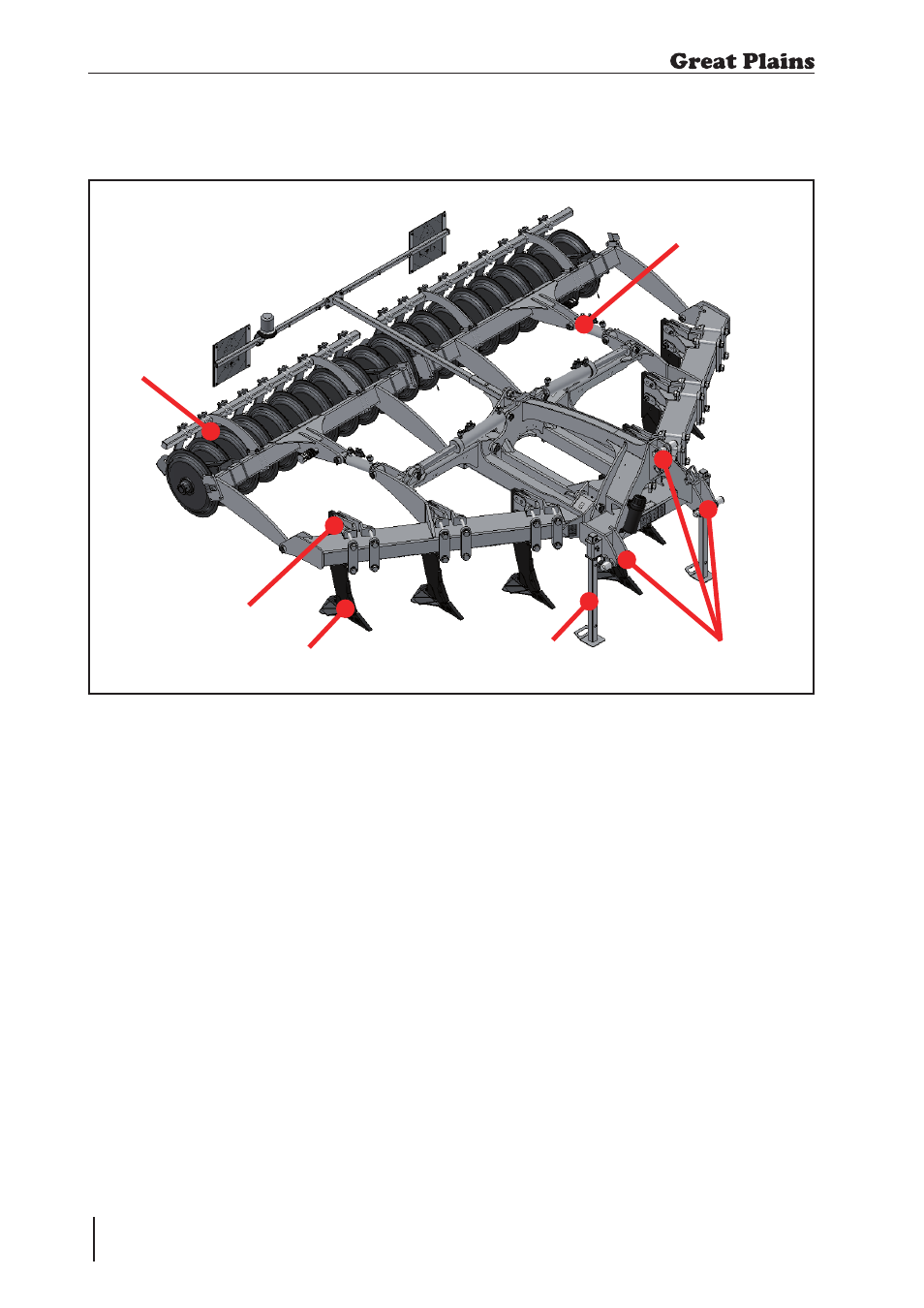

Fig. 4.01: Simba Flatliner 500 (with Double Disc
roll)
The Great Plains Simba Flatliner 500 is a
heavy duty ‘V’ framed subsoiler designed
to operate at depths of 300-500mm.
Adjustable tine clamps offer flexibility of
spacing to provide optimum shatter. Depth
control is achieved using the rear roll,
ensuring maximum consolidation.
4.1 Description
4. Adjustment / Operation
1
2
3
6
5
4
