14 SS1800 & SS2000 Table of Contents Index Great Plains Manufacturing, Inc.
596-222M Table of Contents Index 05/17/2013

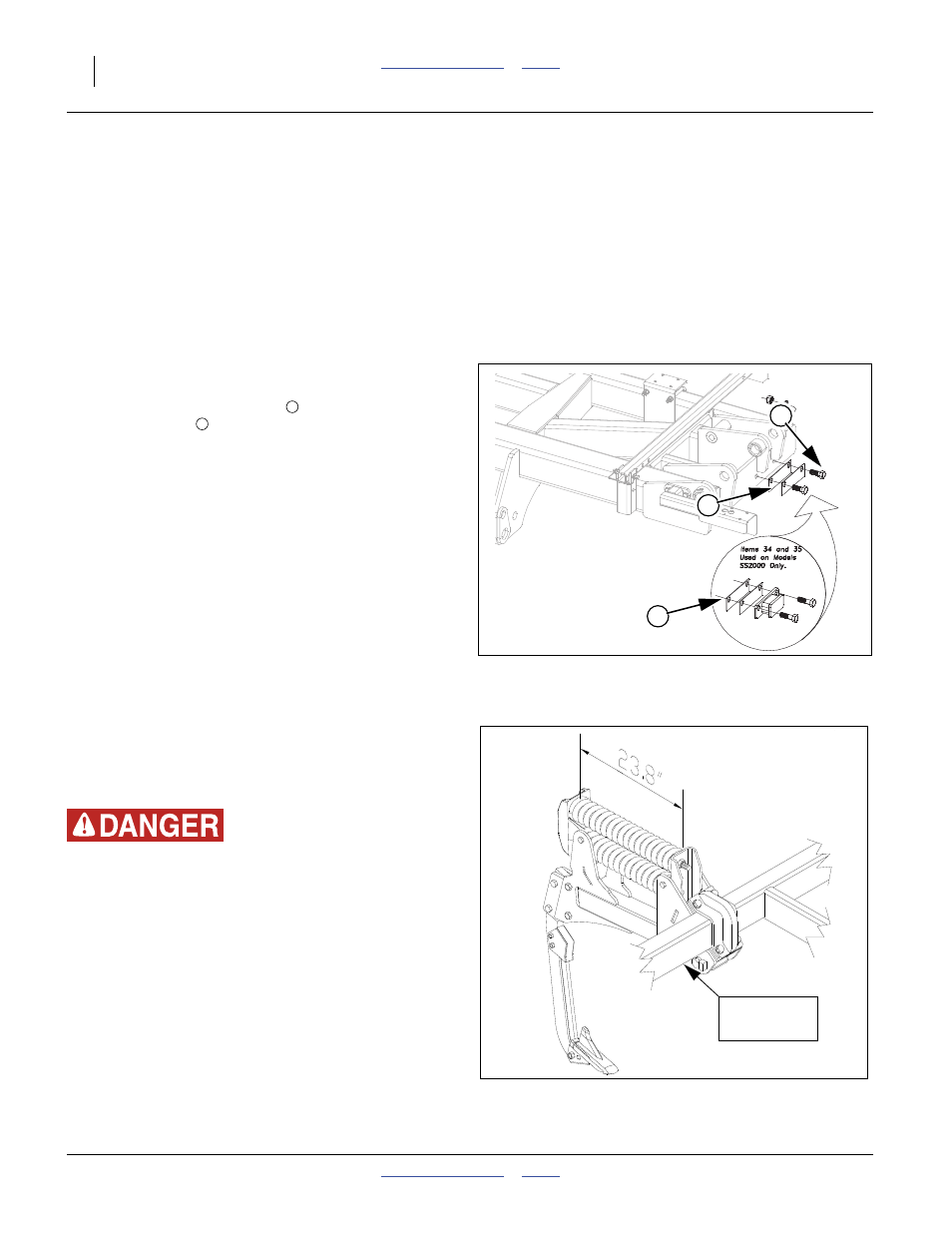

Machine Adjustments
Pre-Leveling of Machine
Front to Rear Leveling
1.
Pre-leveling of machine may be done on a level floor.
Lower the machine down until the shank tips are just
above the floor.
2. Adjust the 3 point top link until the front and rear points
are level.
Side to Side Leveling
Refer to Figure 6
3. Set the wings to match the depth of the center. This is
done by removing the bolts
on each wing. Add or
remove shims , until the wings are level with the cen-
ter.
4. Re-install the bolts. Torque as shown in “Torque Val-
ues Chart” on page 24.
Auto Reset Shank Adjustment
Refer to Figure 7
1. The dual spring package should be preloaded so both
top and bottom springs are loaded evenly and measure
23.8” from end of coil to end of coil.
Spring pack is pre-loaded at factory and should not be disassem-
bled in the field. You could be severely injured or killed by instant
release of stored energy.
Figure 6
Wing Leveling
41863
2
1
2
1
2
Figure 7
Auto Reset Shanks
24464
Down Stop
(not visible)
