28
Section 1 Assembly and Setup
Model 2250 Air Drill Implement 160-192M 5/11/05
Great Plains Mfg., Inc.
Light Package Assembly

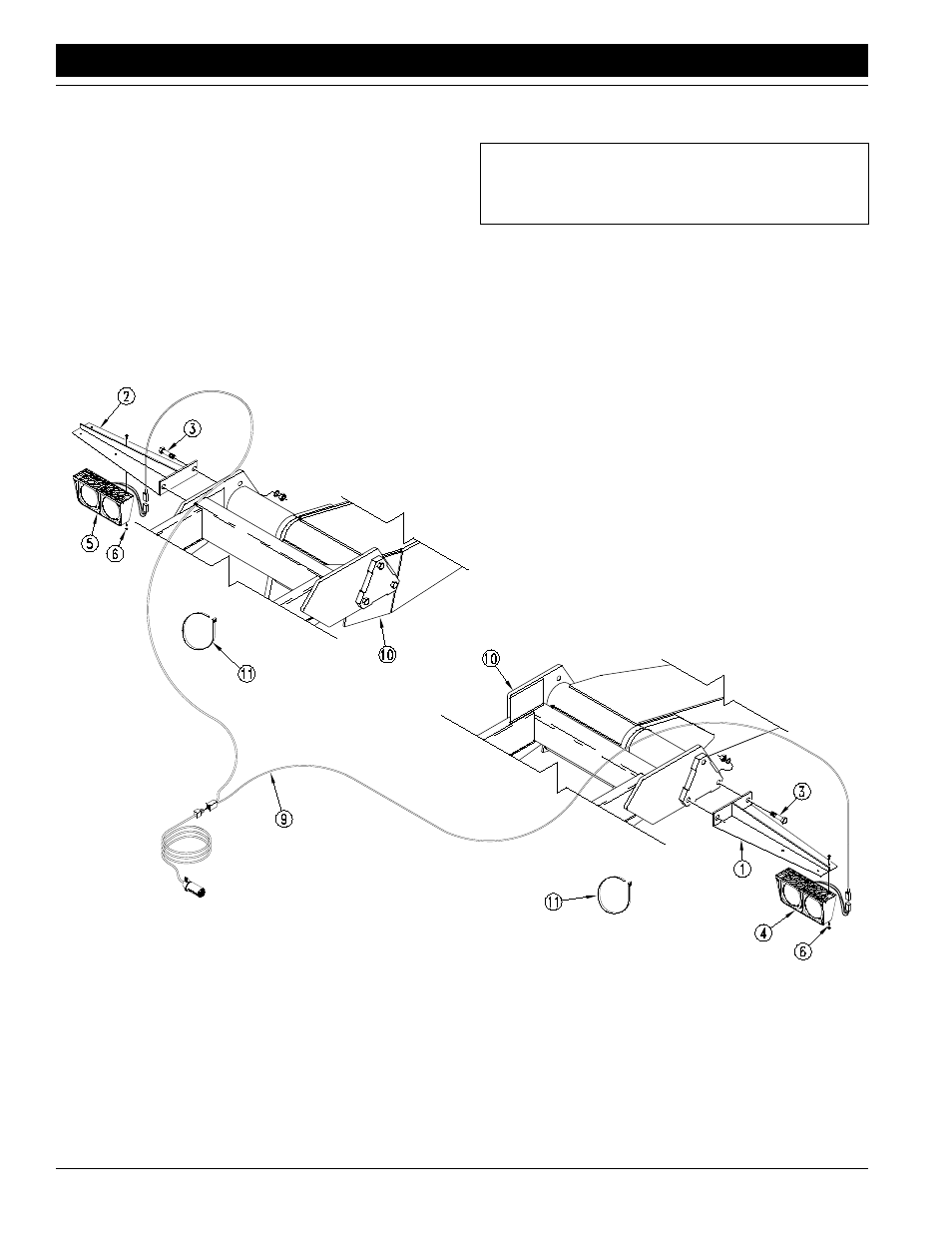

Figure 1-26
15159
Light Harness and Brackets
Refer to Figure 1-26:
Attach the left (#1) and right (#2) side light brackets to the
left and right center section lift assist arms of the imple-
ment. Use the 3/4 x 3” bolts (#3) to secure them to the out-
er lift assist pivot bearings. Install the left (#4) and right
(#5) ag lights to the brackets using the 1/4 x 1 1/4” bolts
(#6). The lights should be installed with the red lenses to
the inside and facing the rear. Attach the light harness “Y”
connector (#9) to the terminal at the back of the cart (#10).
Route the wires along the frame members back to the
lights and plug in.
Secure the wire in place using the cable ties (#11). Coil the
excess wire and cable tie it securely to the implement
frame.
NOTE: The lead with the green wire goes to the right
side lights, the lead with the yellow wire goes to the left
side.
