Preparation and Setup 15
11/09/2006 500-642Q
Axle Wheel Spacing Adjustment
!
CAUTION
Axle position must be located correctly to avoid excessive
tongue weight or negative tongue weight which could cause
mechanical failure resulting in personal injury.
Refer to Figure 15
The wheel spacing of the axle can also be adjusted for
differing row spacings.
!
CAUTION
Do not adjust the wheel spacing wider than 120in. To do so
may cause a falling axle hazard while the sprayer is in ser-
vice.

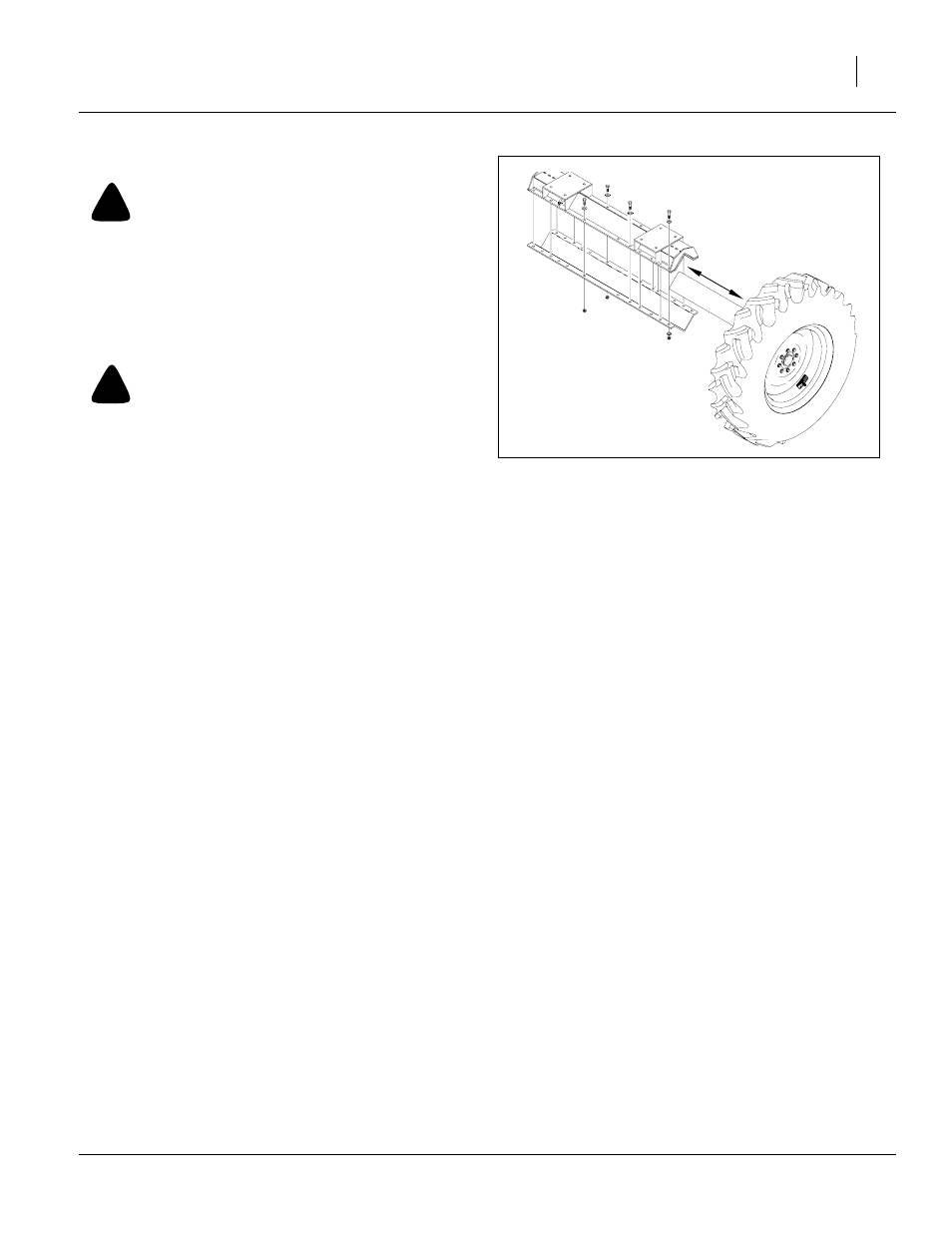

Figure 15
Sprayer Axle Assembly
13855
