8 TSF1060 and TSF1260
500-642Q 11/09/2006
Swivel Bolt Snap
Refer to Figure 2 and Figure 3
13. Unhook swivel bolt snap from stationary ring. Re-
hook swivel bolt snap to ring located in outer boom
lock plunger rod.
14. Carefully unfold sprayer. Consult Operator’s Man-
ual for procedure.
Remove Shipping Tires
Refer to Figure 4
Note: To remove shipping tires, boom arms must be
folded into transport position. In addition, a forklift
or jack is needed to remove and replace shipping
tires.
15. Unscrew wheel lugs from shipping tires. Depend-
ing on size, tires will have either 8-bolts or 10-
bolts.
16. Remove shipping tires.
17. Replace shipping tires with standard sprayer tires.
18. Secure sprayer tires to implement with wheel lugs
removed in step 15.

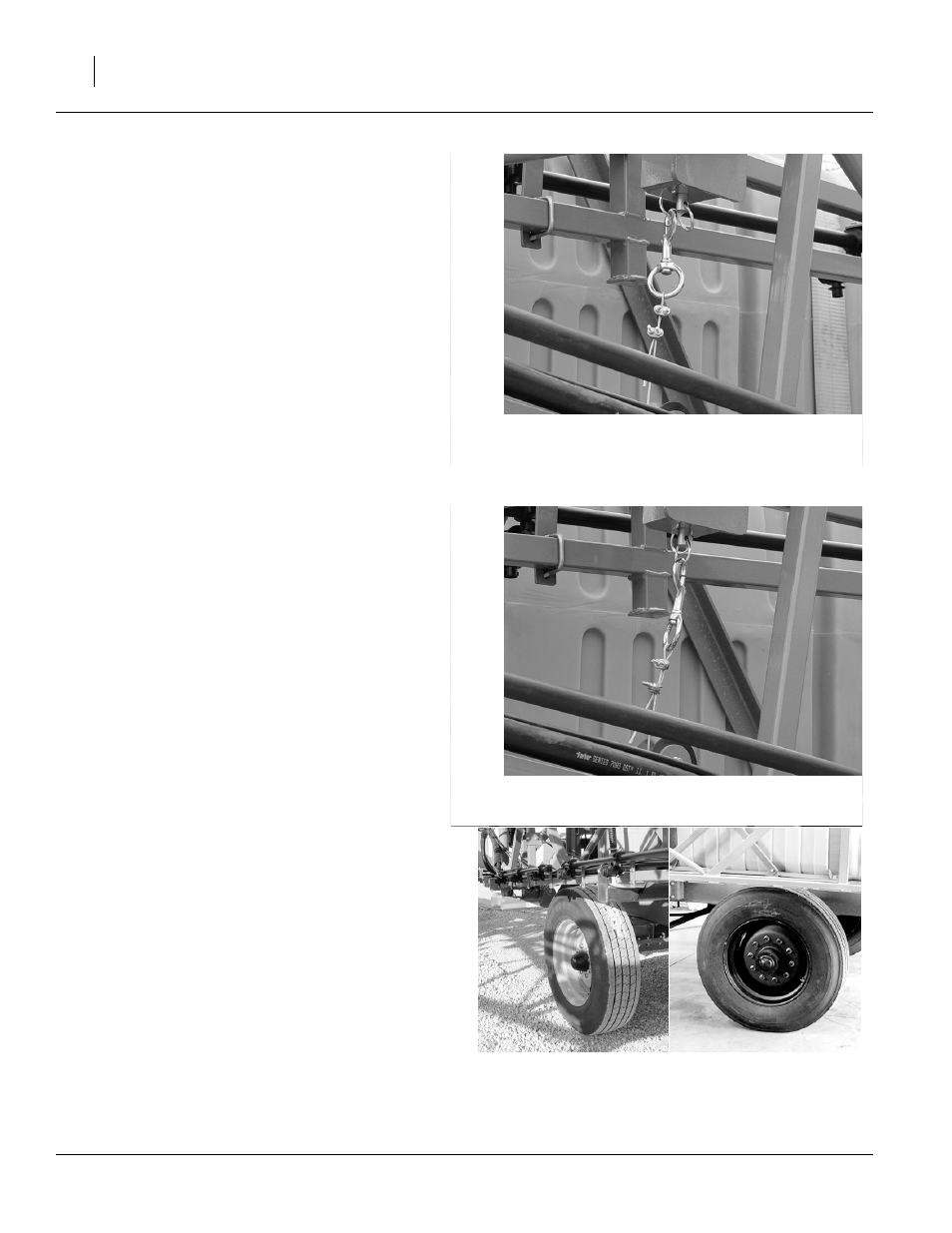

Figure 2
Swivel Bolt Snap (transport)
24164
Figure 3
Swivel Bolt Snap (operation)
24165
Figure 4
8- and 10-bolt Transport
Wheels and Tires
24347
24348
